Description

DA-LOWROSE

direct
opal PMMA diffuser, UV stabilized
steel
white, RAL 9003S
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK02
Operating temperature range, ta 0+35

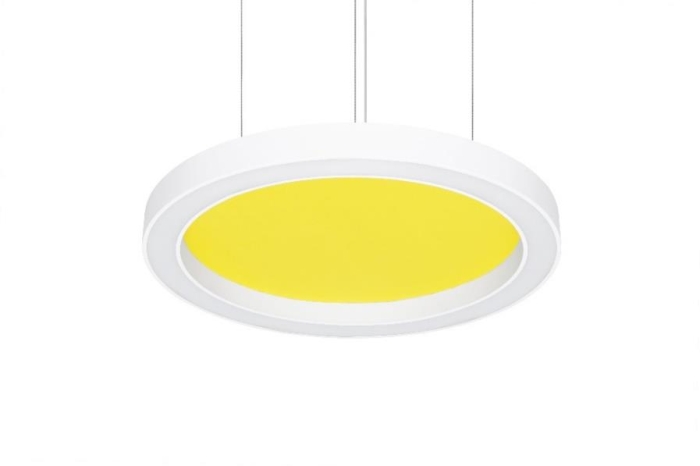

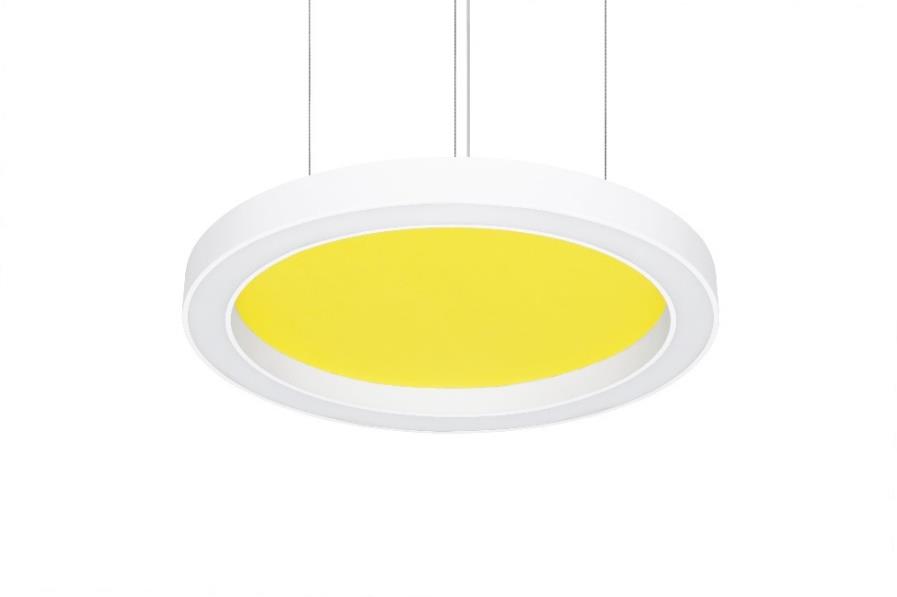

Surface luminaire is designed to be fixed to ceiling of any type or suspended. Multiple wire suspension, cable cap and DA-CANEASHa tive
cable accessories are available on request. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-LOWROSE1x2050 J146 T830 OP M…
(felt color code) 600 600 80 1924 16,9 114 80+ 3000 5,7
DA-LOWROSE1x2750 J147 T830 OP M…
(felt color code) 600 600 80 2621 23,6 111 80+ 3000 5,7
DA-LOWROSE1x3800 J148 T830 OP M…
(felt color code) 600 600 80 3603 34,6 104 80+ 3000 5,7
DA-LOWROSE1x3300 J149 T830 OP M…
(felt color code) 900 900 80 3148 26,4 119 80+ 3000 10,0
DA-LOWROSE1x4500 J150 T830 OP M…
(felt color code) 900 900 80 4289 37,7 114 80+ 3000 10,0
DA-LOWROSE1x6200 J151 T830 OP M…
(felt color code) 900 900 80 5896 54,9 107 80+ 3000 10,0
DA-LOWROSE1x4400 J152 T830 OP M…
(felt color code) 1200 1200 80 4197 34,8 121 80+ 3000 14,9
DA-LOWROSE1x6000 J153 T830 OP M…
(felt color code) 1200 1200 80 5719 49,8 115 80+ 3000 14,9
DA-LOWROSE1x8250 J154 T830 OP M…
(felt color code) 1200 1200 80 7861 72,4 109 80+ 3000 14,9
DA-LOWROSE1x2050 J146 T840 OP M…
(felt color code) 600 600 80 2014 16,9 119 80+ 4000 5,7
DA-LOWROSE1x2750 J147 T840 OP M…
(felt color code) 600 600 80 2744 23,6 116 80+ 4000 5,7
DA-LOWROSE1x3800 J148 T840 OP M…
(felt color code) 600 600 80 3772 34,6 109 80+ 4000 5,7
DA-LOWROSE1x3300 J149 T840 OP M…
(felt color code) 900 900 80 3295 26,4 125 80+ 4000 10,0
DA-LOWROSE1x4500 J150 T840 OP M…
(felt color code) 900 900 80 4491 37,7 119 80+ 4000 10,0
DA-LOWROSE1x6200 J151 T840 OP M…
(felt color code) 900 900 80 6173 54,9 112 80+ 4000 10,0
DA-LOWROSE1x4400 J152 T840 OP M…
(felt color code) 1200 1200 80 4394 34,8 126 80+ 4000 14,9
DA-LOWROSE1x6000 J153 T840 OP M…
(felt color code) 1200 1200 80 5987 49,8 120 80+ 4000 14,9
DA-LOWROSE1x8250 J154 T840 OP M…
(felt color code) 1200 1200 80 8231 72,4 114 80+ 4000 14,9
