Description

DA-MARINA

direct
matt aluminum reflector, asymmetrical, opal PMMA diffuser
steel
white (RAL9003)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 50000 /L80B10
3
I
IP4 0/20
IK0 2
Operating temperature range, ta 0+35
In modular suspended ceilings (600), in ceilings with cut -out openings (on request). Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, showroom, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification

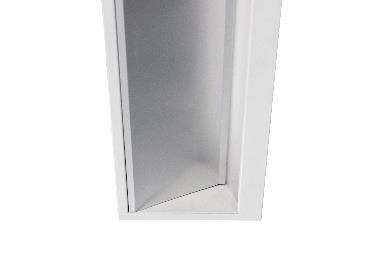

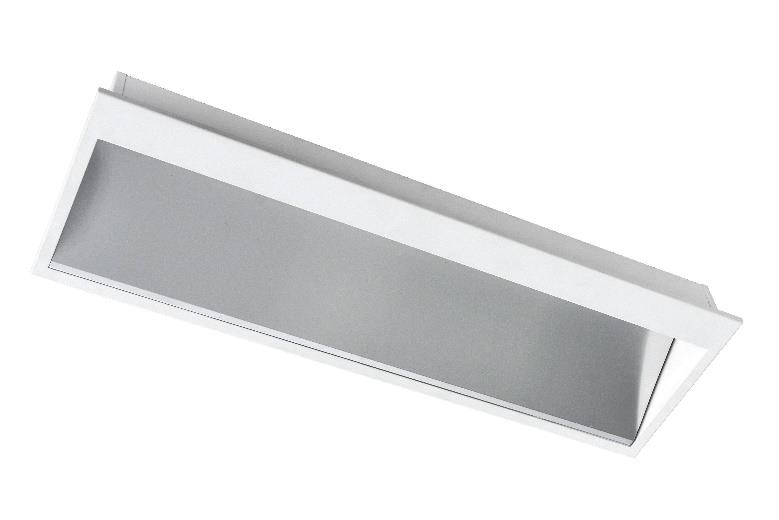

*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
WIE3 -0.5m 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector with 0.5m cable WIE5D -0.5m 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or compatible
connector with 0.5m cable
Schuko -1.5m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 1.5m cable
Schuko -3.0m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 3.0m cable
SB Support brackets for installation into a plasterboard ceiling
OP LT80 Opal diffuser with high light transmittance
OP TP(a) TP(a) rated termoplastic opal diffuser
W625 Designed for the German market to fit 625×625 suspended
ceiling

OP LT80

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-MARINA1x1550 G874 T830 OP LT80 595 185 62 1450 13,6 106 80+ 3000 1,9
DA-MARINA1x2100 G875 T830 OP LT80 595 185 62 1993 19,5 102 80+ 3000 1,9
DA-MARINA1x3050 G876 T830 OP LT80 1195 185 62 2899 25,7 113 80+ 3000 3,6
DA-MARINA1x4200 G877 T830 OP LT80 1195 185 62 3985 37,8 105 80+ 3000 3,6
DA-MARINA1x1550 G874 T840 OP LT80 595 185 62 1518 13,6 111 80+ 4000 1,9
DA-MARINA1x2100 G875 T840 OP LT80 595 185 62 2086 19,5 107 80+ 4000 1,9
DA-MARINA1x3050 G876 T840 OP LT80 1195 185 62 3035 25,8 118 80+ 4000 3,6
DA-MARINA1x4200 G877 T840 OP LT80 1195 185 62 4173 37,8 110 80+ 4000 3,6
