Description

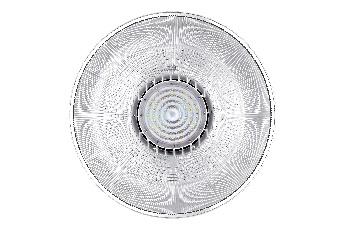

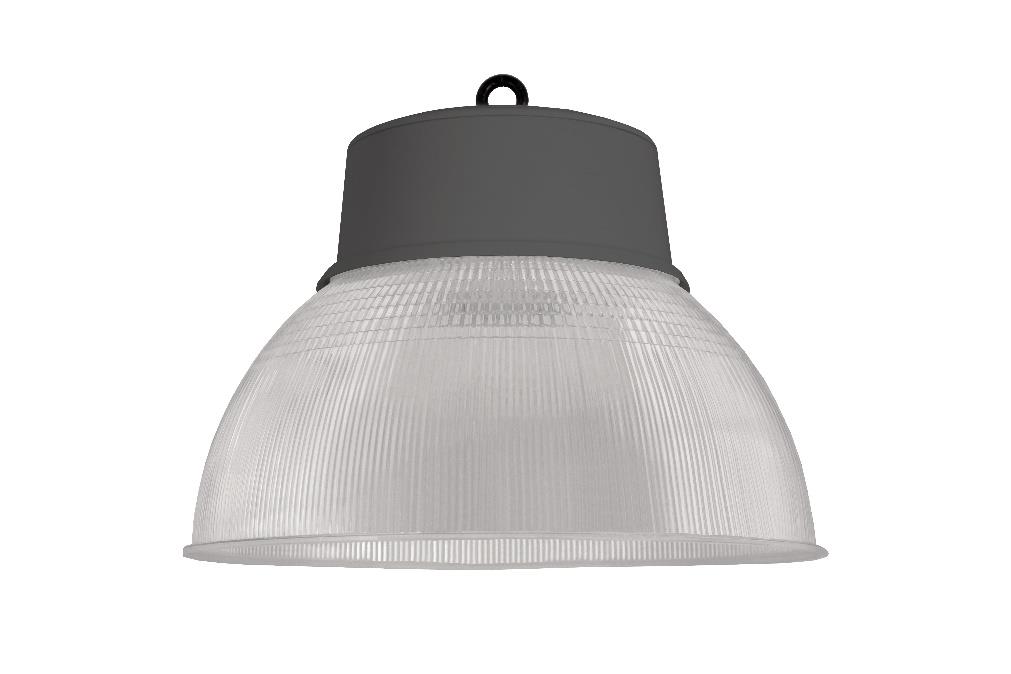

DA-MOOSEMAPLE LED

direct
prismatic polycarbonate reflector and lenses
aluminium
dark grey, RAL 7043
MDA- 220 -240V, 50 -60Hz
LED lifetime, 100000/L80B50
4
I
IP20
IK08
Operating temperature range, ta 0…+40
Suspended (hook for wire suspension included). Push -in terminal, 3x2x2.5mm2
Indoor

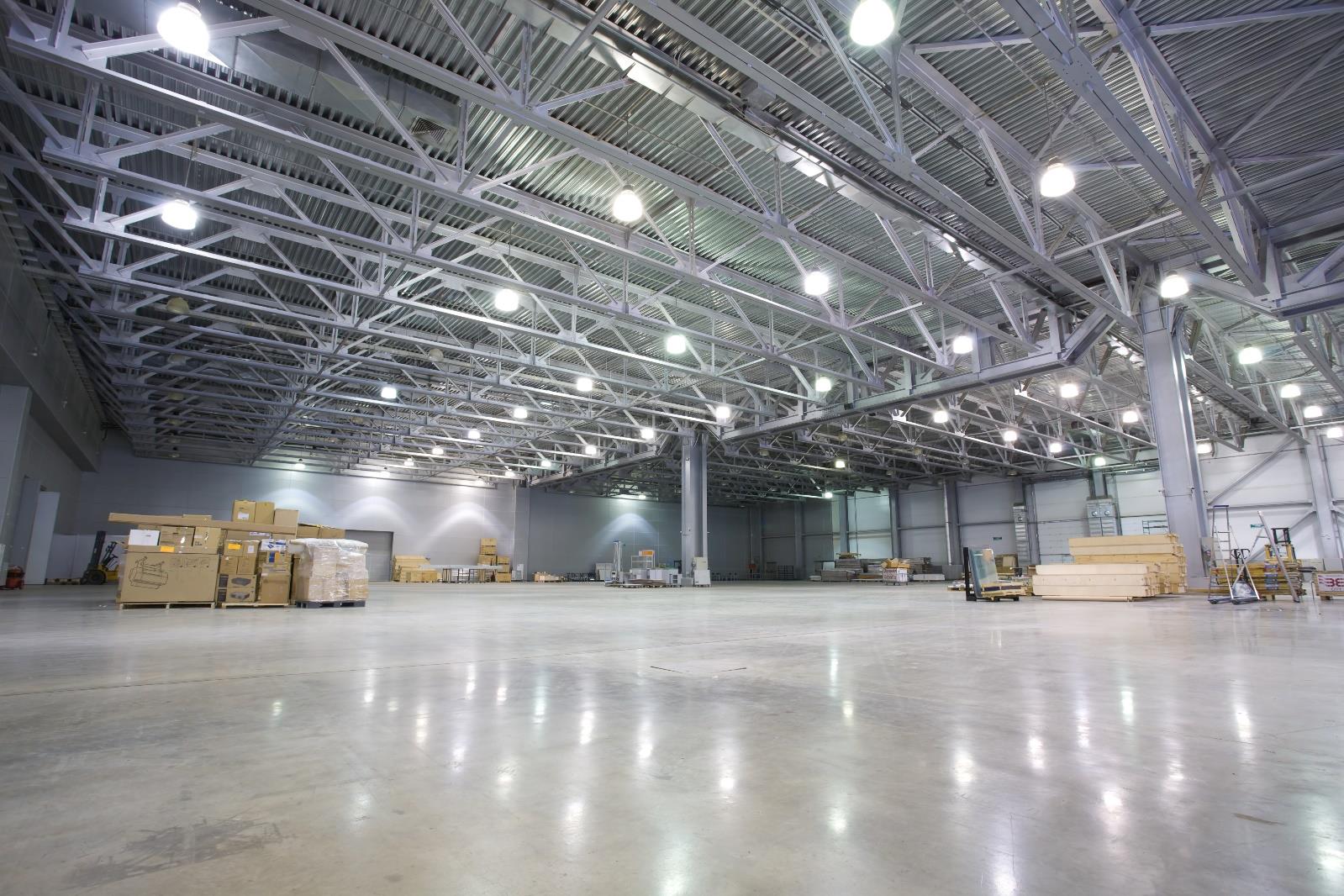

Retail, showroom, hall, exhibition, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
CBF3 -2.0m clear Cable 3×0.75mm for suspended luminaire up to 2.0
meters, transparent
CBF3 -3.0m clear Cable 3×0.75mm for suspended luminaire up to 3.0
meters, transparent CBF5 -2.0m clear Cable 5×0.75mm for suspended luminaire up to 2.0
meters, transparent
CBF5 -3.0m clear Cable 5×0.75mm for suspended luminaire up to 3.0
meters, transparent
RAL RAL colour
STANDARD

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI * (Ra) CCT*, K Weight,
kg
DA-MOOSEMAPLE1x4200 J608 T830 410 410 289 3860 27 143 80+ 3000 2,5
DA-MOOSEMAPLE1x6000 J609 T830 410 410 289 5515 39 141 80+ 3000 2,5
DA-MOOSEMAPLE1x8400 J610 T830 410 410 289 7721 55 140 80+ 3000 2,5
DA-MOOSEMAPLE1x10800 J611 T830 410 410 289 9926 71 140 80+ 3000 2,5
DA-MOOSEMAPLE1x12600 J612 T830 410 410 289 11581 82 141 80+ 3000 2,5
DA-MOOSEMAPLE1x4200 J608 T840 410 410 289 4200 27 156 80+ 4000 2,5
DA-MOOSEMAPLE1x6000 J609 T840 410 410 289 6000 39 154 80+ 4000 2,5
DA-MOOSEMAPLE1x8400 J610 T840 410 410 289 8400 55 153 80+ 4000 2,5
DA-MOOSEMAPLE1x10800 J611 T840 410 410 289 10800 71 152 80+ 4000 2,5
DA-MOOSEMAPLE1x12600 J612 T840 410 410 289 12600 82 154 80+ 4000 2,5
