DA-MULBERRY

Luminaires Waterproof

Ingress protection code:

IP66

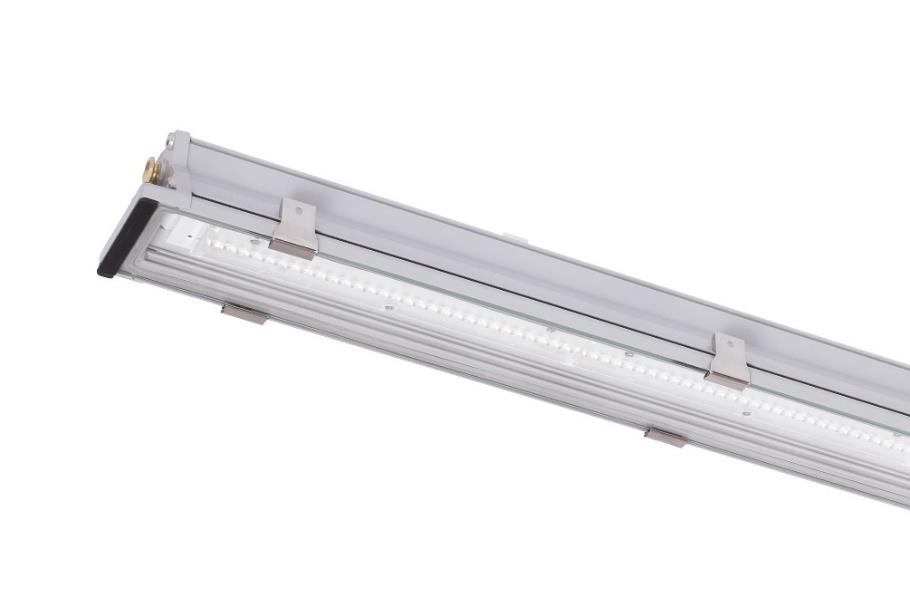

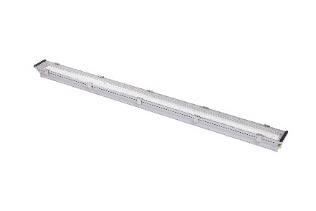

LED luminaire with aluminium body and tempered glass diffuser. Suits well in aggressive atmospheres with cleaning agents, salts, acids and mineral oils tempered safety glass, impact resistant, with stainless steel clips and safety clips lenses extruded aluminium, light grey finish (RAL 9006) Brass cable gland and polyurethane sealing to provide reliable IP protection

Mains voltage:

MDA – 220 -240V, 0/50/60Hz

LED lifetime:

100000/L80B10

SDCM:

3

Protection class IEC:

I

Ingress protection code:

IP66

Mechanical impact resistance:

IK10

D Glow wire test, 850

Operating temperature range:

ta -25…+40

Surface luminaire designed to be fixed to ceiling of any type or suspended. Push -in terminal, 3x2x2.5mm2

Environment:

Indoor

Application:

Industry, food processing area, warehouse, hall, agriculture
