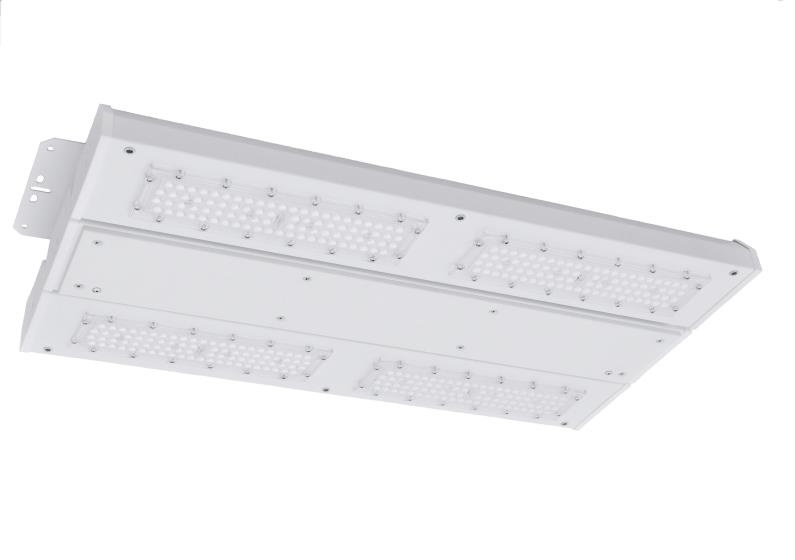

DA-NIGHTSHADE

High -bays Surface mounted or s uspended high -bay LED luminaire direct lenses , silicone rubber gasket , impact resistance

Housing:

aluminium

Colour:

white (RAL9003 )

Mains voltage:

MDA – 220 -240V, 0/50 -60Hz

LED lifetime:

100000/L80B10

SDCM:

3

Protection class IEC:

I

Ingress protection code:

IP65

Mechanical impact resistance:

IK08

(

Mechanical impact resistance:

IK10

with protection grid) D

Operating temperature range:

ta -20+40 (D577, D578, D581, D582, D585: ta -20+35)

On the ceiling or wall, or suspended (requires accessories) . Push -in terminal, 5x2x2.5mm2

Environment:

Indoor

Application:

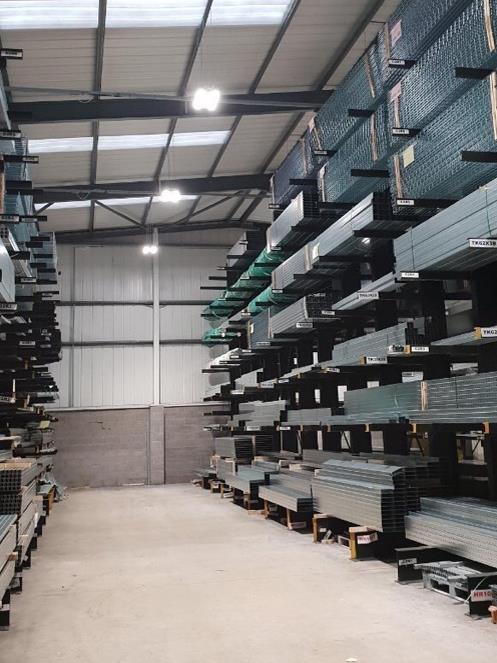

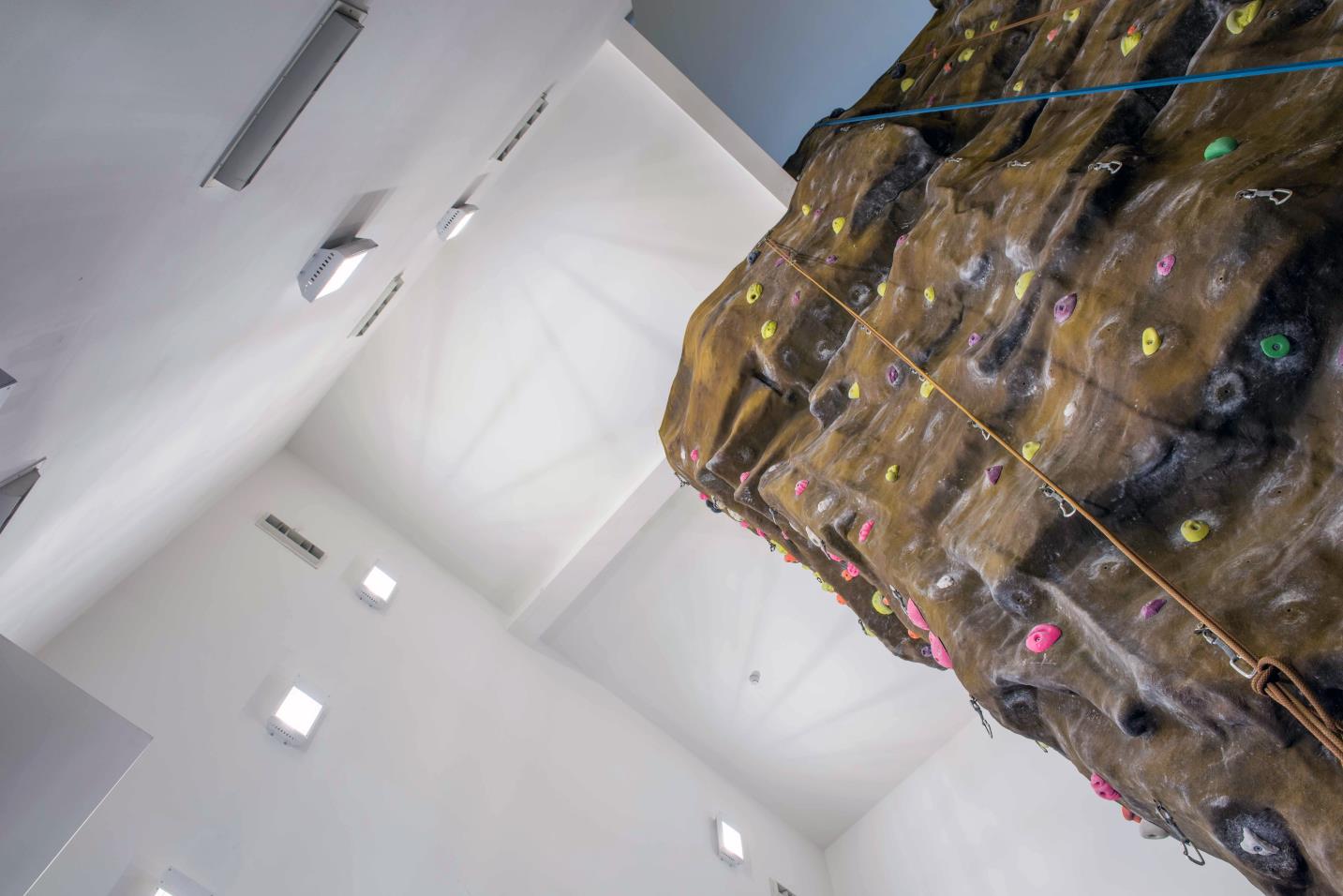

Industry, warehouse, hall, sports, transport terminal

Fixture mounted HBPIR sensors provide fast installation and immediate energy savings by automatically activating lighting only during periods of occupancy. Reliable passive infrared (PIR) technology detects occupancy, and the variable time delay – up to 30 minutes – is user accessible without power, tools or disassembly, and allows the ideal setting based on application needs. Included with the sensor are lenses for high -bay, low -bay and aisle mounting, allowing one unit to cover a variety of applications. The innovative A utocal feature performs an automatic daylight level calibration. Once calibrated, the sensor requires no further adjustment and immediately enters daylight harvesting mode, actively switching the connected fixture load ON and OFF in response to occupancy a nd available natural light maximizing energy savings through efficient light harvesting. Fixture mounted HBEAIR sensors ensure lighting is only on when and where it is needed. The sensors in combination with luminaires can bring huge benefits in terms of energy management as they provide occupancy detection and daylight sensing for heights up to 16 meters. Energy saving – typically between 30% and 50%. HBEAIR can be easily programmed via a smartphone, that offers immense flexibility to commission luminaires into groups and further divided in zones wirelessly. The HBEAIR offers intelligent wireless lighting control, for warehouse (and similar) applications. 5m-16m mounting height, simple grouping via NFC and IR with the Apps, zoning and occupancy sharing (zone with motion goes to full task level while sub-zones are maintained at backgDA-INDIANHEMP light level). Corridor option automatic switching is based on presence/motion with the time delay set on site to suit the customers requirements, where no presence is detected the light level will fade from 100% down to 10% saving up to 60% of the energy usage. The COR function does not abruptly switch off the lighting but dims it to a 10% level. Depending on the profile selected the device remains at this light level (never off profile) or switches off completely after the appropriate delay (Switch off profile). This arrangement provides efficient energy savings in 24 -hour applications where light is needed DA-INDIANHEMP the clock for safety reasons, for example in stairwells and corridors in public buildings, and in large apartment complexes, car parks, pedestrian underpasses, warehouses and undergDA-INDIANHEMP railway stations.
