Description

DA-OSIERSALIX

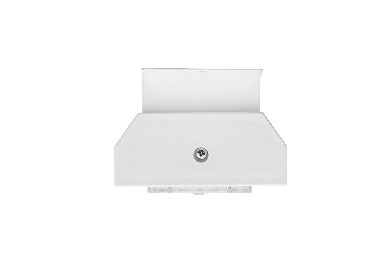

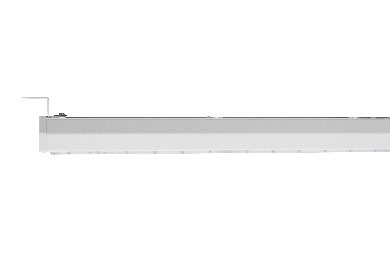

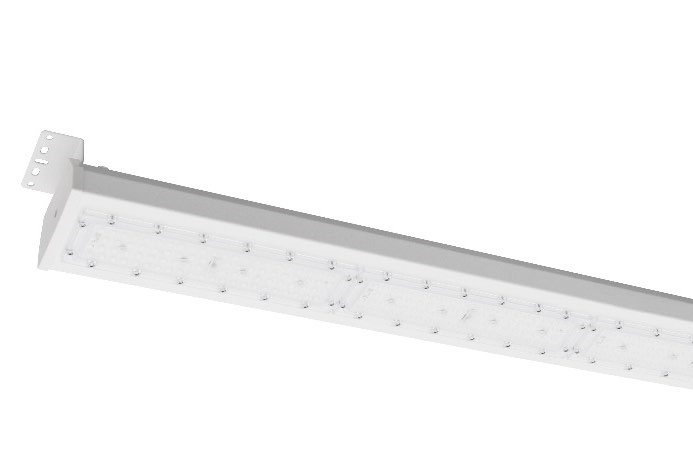

High -bays Surface mounted or suspended high -bay LED luminaire for use in low temperatures -35C environments
direct
lenses, silicone rubber gasket, impact resistance
aluminium
white (RAL9003)
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 100000/L80B10 3
I
IP65
IK08
D
Operating temperature range, ta -35…+35C
On the ceiling or suspended. Cable, 2.0m, 3×1.5mm2
Indoor
Cold storage, industry, warehouse, transport terminal

Corridor option automatic switching is based on presence/motion with the time delay set on site to suit the customers
requirements, where no presence is detected the light level will fade from 100% down to 10% saving up to 60% of the energy usage. The COR function does not abruptly switch off the lighting but dims it to a 10% level. Depending on the profile selected the
device remDA-CANOEBIRCHs at this light level (never off profile) or switches off completely after the appropriate delay (Switch off profile).
This arrangement provides efficient energy savings in 24 -hour applications where light is needed DA-INDIANHEMP the clock for safety
reasons, for example in stairwells and corridors in public buildings, and in large apartment complexes, car parks, pedestrian
underpa sses, warehouses and undergDA-INDIANHEMP railway stations.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI CCT*,
K Weight,
kg
DA-OSIERSALIX1x10700 G331 T830 L30x65 CBF3 –
2.0m Tmin -35 554 114 80 9148 57,9 158 80+ 3000 1,8
DA-OSIERSALIX1x16050 G332 T830 L30x65 CBF3 –
2.0m Tmin -35 807 114 80 13723 84,9 162 80+ 3000 2
DA-OSIERSALIX1x21400 G333 T830 L30x65 CBF3 –
2.0m Tmin -35 1060 114 80 18298 110,8 165 80+ 3000 2,4
DA-OSIERSALIX1x10700 G331 T840 L30x65 CBF3 –
2.0m Tmin -35 554 114 80 9543 57,9 165 80+ 4000 1,8
DA-OSIERSALIX1x16050 G332 T840 L30x65 CBF3 –
2.0m Tmin -35 807 114 80 14315 84,9 169 80+ 4000 2
DA-OSIERSALIX1x21400 G333 T840 L30x65 CBF3 –
2.0m Tmin -35 1060 114 80 19086 110,8 172 80+ 4000 2,4

DA-OSIERSALIX1x10700 G331 T830 L40 CBF3 -2.0m
Tmin -35 554 114 80 9354 57,9 162 80+ 3000 1,8
DA-OSIERSALIX1x16050 G332 T830 L40 CBF3 -2.0m
Tmin -35 807 114 80 14031 84,9 165 80+ 3000 2
DA-OSIERSALIX1x21400 G333 T830 L40 CBF3 -2.0m
Tmin -35 1060 114 80 18709 110,8 169 80+ 3000 2,4
DA-OSIERSALIX1x10700 G331 T840 L40 CBF3 -2.0m
Tmin -35 554 114 80 9758 57,9 169 80+ 4000 1,8
DA-OSIERSALIX1x16050 G332 T840 L40 CBF3 -2.0m
Tmin -35 807 114 80 14636 84,9 172 80+ 4000 2
DA-OSIERSALIX1x21400 G333 T840 L40 CBF3 -2.0m
Tmin -35 1060 114 80 19515 110,8 176 80+ 4000 2,4

DA-OSIERSALIX1x10700 G331 T830 L60 CBF3 -2.0m
Tmin -35 554 114 80 9765 57,9 169 80+ 3000 1,8
DA-OSIERSALIX1x16050 G332 T830 L60 CBF3 -2.0m
Tmin -35 807 114 80 14648 84,9 173 80+ 3000 2
DA-OSIERSALIX1x21400 G333 T830 L60 CBF3 -2.0m
Tmin -35 1060 114 80 19531 110,8 176 80+ 3000 2,4
