Description

DA-POLKWEED

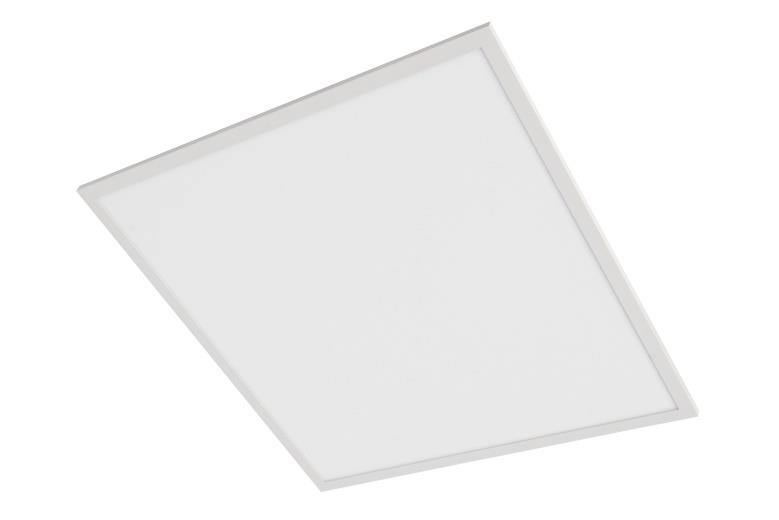

Luminaires Recessed mounted LED panel
direct
opal diffuser
aluminum
white (RAL9016)
MDA- 220-240V, 50/60Hz
LED lifetime, 50000/L70B50
5
I I
IP 54
IK0 2
Operating temperature range, ta 0…+35
In modular suspended ceilings (600), in ceilings with cut -out openings (accessories to be ordered separately). Push -in terminal,
2x2x2.5mm2
Indoor
Healthcare, laboratory, industry

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
EM3 Emergency version 3 hours EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface

OP Recessed MTG FRAME S626x626 RAL9003
Frame for LED luminaire 595x595mm installation into
plasterboard ceiling (1pcs), white steel
Recessed MTG FRAME S326x1226 RAL9003
Frame for LED luminaire 1195x295mm installation into
plasterboard ceiling (1pcs), white steel
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-POLKWEED1x3650 G616 T830 OP 595 595 33 3600 36 100 80+ 3000 2,5
DA-POLKWEED1x3650 G617 T830 OP 1195 295 33 3600 36 100 80+ 3000 2,5
DA-POLKWEED1x3650 G616 T840 OP 595 595 33 3650 36 101 80+ 4000 2,5
DA-POLKWEED1x3650 G617 T840 OP 1195 295 33 3650 36 101 80+ 4000 2,5
