Description

DA-POTATO

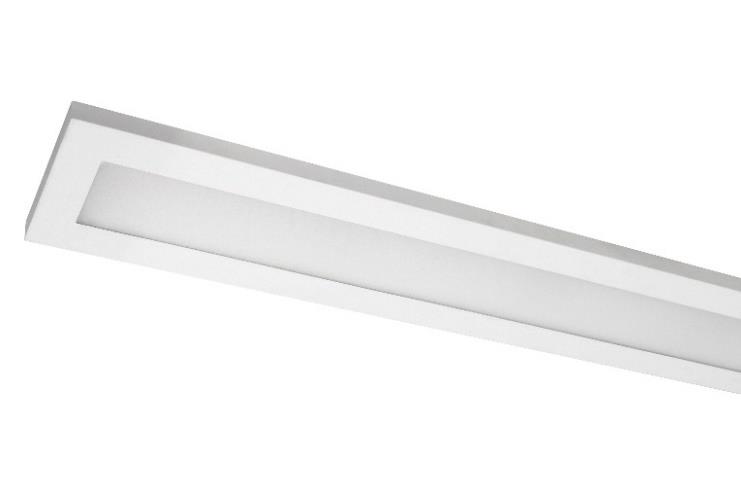

Luminaires Surface mounted LED luminaire
direct
matt micro -prismatic PMMA diffuser, low glare/ translucent micro -prismatic PMMA diffuser
steel
white (RAL9003S)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP44
IK05
Operating temperature range, ta 0+35
Surface mounted LED luminaire. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, corridor, retail, public place

High flexibility to meet specific project requirements, as luminaires can be pDA-CANOEBIRCHted to all RAL code colours on request. For more
information check the option list.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-POTATO1x1500 G150 T830 DPRZ
LT80 635 175 47 1399 10,1 138 80+ 3000 2,2
DA-POTATO1x2050 G151 T830 DPRZ
LT80 635 175 47 1913 13,9 138 80+ 3000 2,2
Calima S LED1x2800 G152 T830 DPRZ
LT80 635 175 47 2651 19,9 133 80+ 3000 2,2
DA-POTATO1x2700 G153 T830 DPRZ
LT80 1203 175 47 2551 18,5 138 80+ 3000 3,9
DA-POTATO1x3550 G154 T830 DPRZ
LT80 1203 175 47 3327 22,3 149 80+ 3000 3,9
Calima S LED1x4600 G155 T830 DPRZ
LT80 1203 175 47 4336 29,8 146 80+ 3000 3,9
DA-POTATO1x5100 G156 T830 DPRZ
LT80 1203 175 47 4811 33,7 143 80+ 3000 3,9
DA-POTATO1x7100 G158 T830 DPRZ
LT80 1203 175 47 6708 46,3 145 80+ 3000 3,9
Calima S LED1x3400 G159 T830 DPRZ
LT80 1483 175 47 3189 22,6 141 80+ 3000 4,8
DA-POTATO1x4400 G160 T830 DPRZ
LT80 1483 175 47 4159 27,6 151 80+ 3000 4,8
DA-POTATO1x5750 G161 T830 DPRZ
LT80 1483 175 47 5419 37,2 146 80+ 3000 4,8
Calima S LED1x6400 G162 T830 DPRZ
LT80 1483 175 47 6014 42,6 141 80+ 3000 4,8
DA-POTATO1x8850 G164 T830 DPRZ
LT80 1483 175 47 8386 57,3 146 80+ 3000 4,8
DA-POTATO2x1350 G165 T830 DPRZ
LT80 635 295 47 2551 17,7 145 80+ 3000 3,7
Calima S LED2x1950 G166 T830 DPRZ
LT80 635 295 47 3697 27,9 132 80+ 3000 3,7
