Description

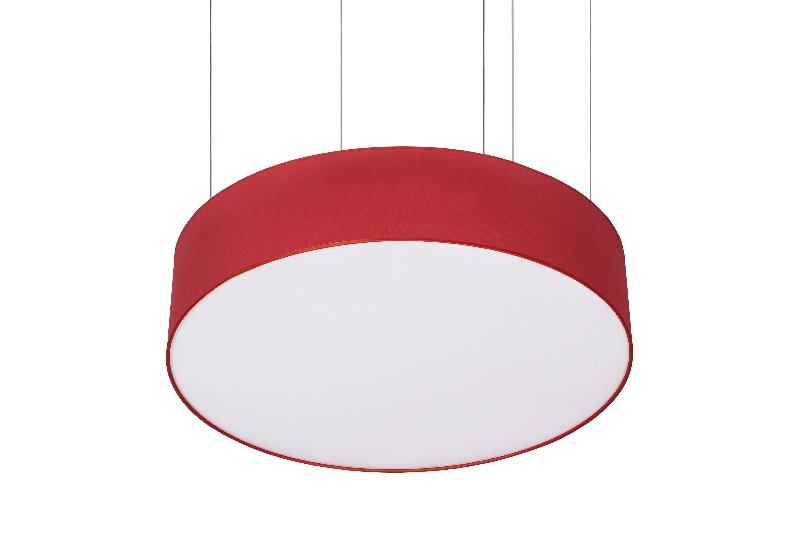

DA-RAGWEED LED

direct
opal PMMA diffuser
steel
white, RAL9003 S
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK0 2
Operating temperature range, ta 0+35
On the ceiling or suspended (accessories be ordered separately). Push -in terminal, 3x2x2.5mm2
Indoor
Office, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface
EAIRB -S Slave luminaire with integrated EAIR type driver for
lighting control
*note – max wire length from EAIRB -M to last EAIRB -S – 11 meters
BLT Integrated wireless control unit and driver for lighting
control via mobile device (via Bluetooth)
MW Integrated microwave (MW) motion sensor with on -off
control CBF2 -2.0m clear Cable 2×0.75mm for suspended luminaire up to 2.0
meters, transparent
CBF2 -3.0m clear Cable 2×0.75mm for suspended luminaire up to 3.0
meters, transparent
CBF3 -2.0m clear Cable 3×0.75mm for suspended luminaire up to 2.0
meters, transparent
CBF5 -2.0m clear Cable 5×0.75mm for suspended luminaire up to 2.0
meters, transparent

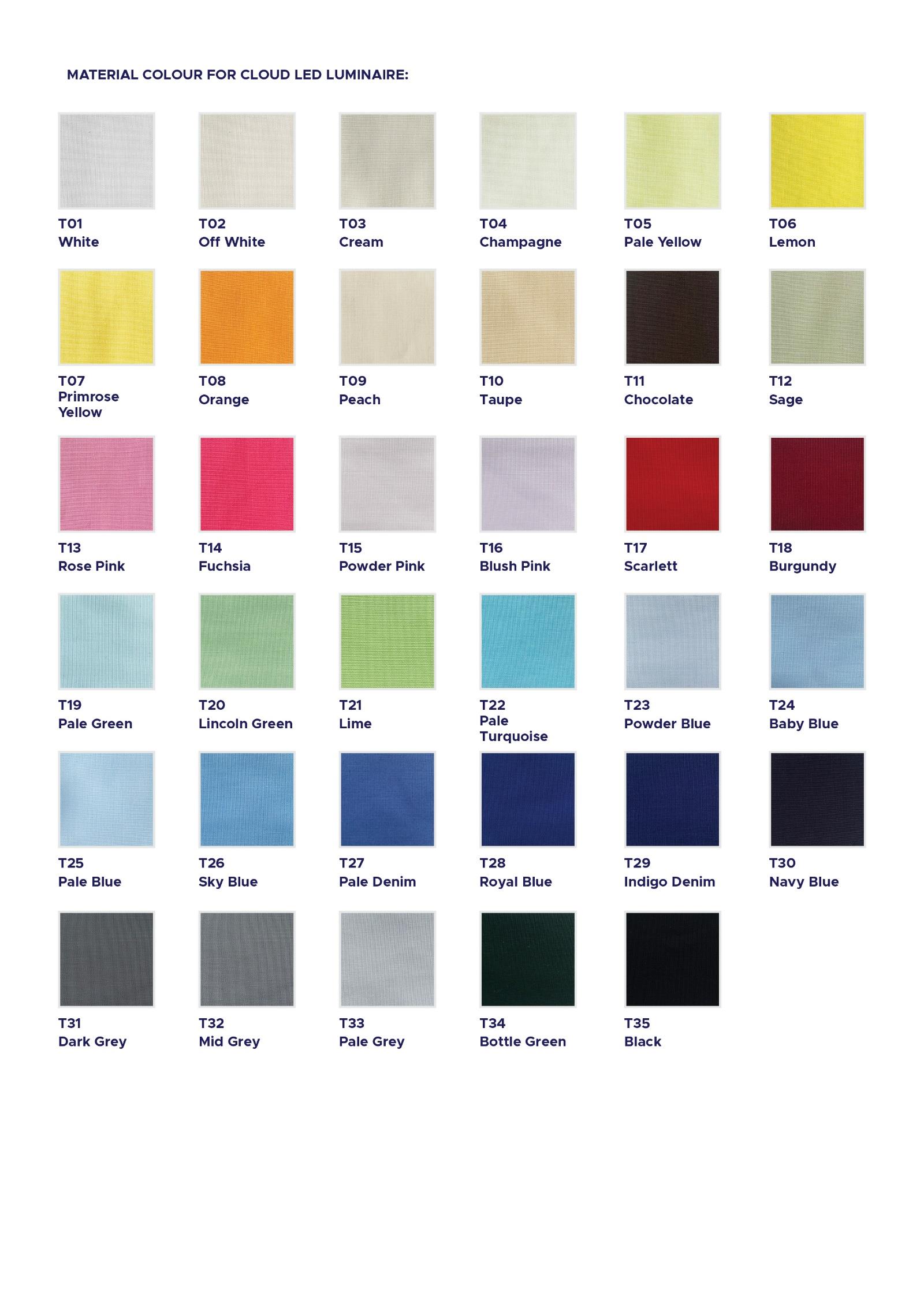

T…(fabric colour code) Fabric colour

STANDARD

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-RAGWEED1x1650 J682 T840 T12 300 300 150 1638 16,2 101 80+ 4000 1,8
DA-RAGWEED1x1450 J683 T840 T12 300 300 250 1411 16,2 87 80+ 4000 1,8
DA-RAGWEED1x1600 J684 T840 T12 300 300 400 1593 23,2 69 80+ 4000 2,3
DA-RAGWEED1x3350 J685 T840 T12 450 450 150 3311 32,4 102 80+ 4000 2,4
DA-RAGWEED1x2900 J686 T840 T12 450 450 250 2853 32,4 88 80+ 4000 2,4
DA-RAGWEED1x2750 J687 T840 T12 450 450 400 2708 38,2 71 80+ 4000 2,9
DA-RAGWEED1x4950 J688 T840 T12 600 600 150 4913 46,5 106 80+ 4000 2,7
DA-RAGWEED1x4250 J689 T840 T12 600 600 250 4233 46,5 91 80+ 4000 2,7
DA-RAGWEED1x4800 J698 T840 T12 600 600 400 4779 65,9 73 80+ 4000 3,2
DA-RAGWEED1x8750 J699 T840 T12 1000 1000 150 8701 78,1 111 80+ 4000 7,2
DA-RAGWEED1x7500 J700 T840 T12 1000 1000 250 7496 78,1 96 80+ 4000 7,2
DA-RAGWEED1x8150 J701 T840 T12 1000 1000 400 8125 104,5 78 80+ 4000 7,7
