Description

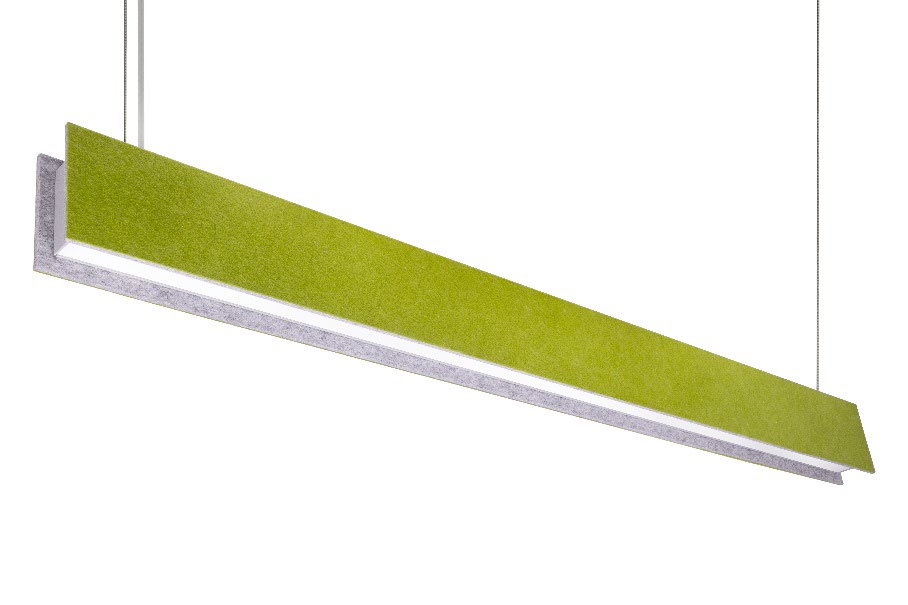

DA-REDWEED

direct/indirect
opal polycarbonate diffuser
aluminium
made to the customer’s specification
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK05
Operating temperature range, ta 0 +35
Suspended (wire and cap to be ordered separately). Cable 2.0m, 3×0.75mm2, transparent
Indoor
Office, education, hotel, retail, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
OP LT80 Opal diffuser with high light transmittance
DPRZ LT80 De-glaring micro -prismatic diffuser with matt light
scattering layer
DALI Driver with DALI interface and switch -control dimming
DALIsep Driver with DALI interface and with possibility to
control down and up light separately
PULL Pull switch device, on/off
PULLDIM Pull switch device and driver with switch -control
dimming
*note – For PULL and PULLDIM options luminaire housing is 50mm longer and
switch is positioned at the end of luminaire
Lsep Option that enables to control (on/off) down and up
lights separately
RAL RAL colour
M… (felt color code) With Fabric cover, height 100mm

OP LT80 DPRZ LT80

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-REDWEED1x1650/1050 J413 T840 OP
LT80 M… (felt color code) 1159 50 99 2644 21,0 125 80+ 4000 3,9
DA-REDWEED1x2200/1450 J414 T840 OP
LT80 M… (felt color code) 1159 50 99 3604 29,4 122 80+ 4000 3,9
DA-REDWEED1x3050/1950 J415 T840 OP
LT80 M… (felt color code) 1159 50 99 4953 43,1 114 80+ 4000 3,9
DA-REDWEED1x2050/1400 J416 T840 OP
LT80 M… (felt color code) 1439 50 99 3392 26,4 128 80+ 4000 4,8
DA-REDWEED1x2750/1900 J417 T840 OP
LT80 M… (felt color code) 1439 50 99 4622 37,8 122 80+ 4000 4,8
DA-REDWEED1x3800/2600 J418 T840 OP
LT80 M… (felt color code) 1439 50 99 6354 54,9 116 80+ 4000 4,8
