Description

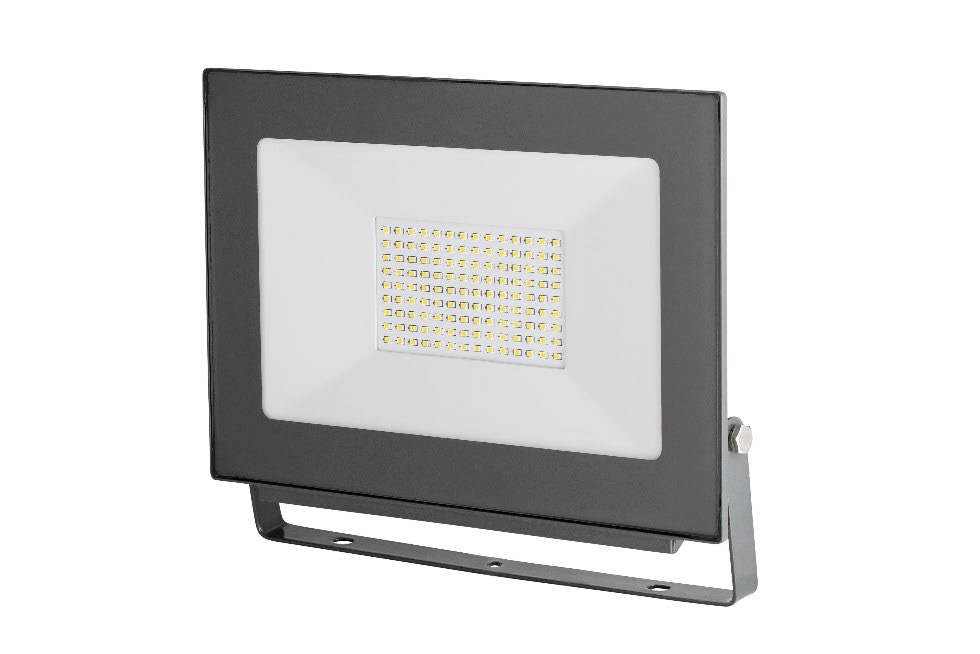

DA-RIVERMAPLE LED

direct
white thermoplastic reflector, symmetric, tempered glass diffuser
die- cast aluminium
dark grey (RAL7043)
MDA- 220 -240V, 50/60Hz
LED lifetime, 25000/L70B50
5
I
IP65
IK0 4
Operating temperature range, ta -20+40
On the horizontal or vertical surface. Cable, 0.3m, 3×1.00mm2
Outdoor
Facade illumination, parking area, park, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T740 Colour temperature 4000K, CRI 70+
STANDARD Power supply connector – IP66/IP68, 3×1.5mm2
Quick and easy to connect power supply and luminaire
cables connector – IP66/IP68, 3×1.5mm2, 450V/10A, 1pcs

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-RIVERMAPLE1x2700 E923 T740 157 126 25 2700 30 90 70+ 4000 0,4
DA-RIVERMAPLE1x4500 E924 T740 208 170 36 4500 50 90 70+ 4000 0,83
DA-RIVERMAPLE1x9000 E925 T740 320 250 42 9000 100 90 70+ 4000 1,83
DA-RIVERMAPLE1x18000 E926 T740 418 334 45 18000 200 90 70+ 4000 3,65
