Description

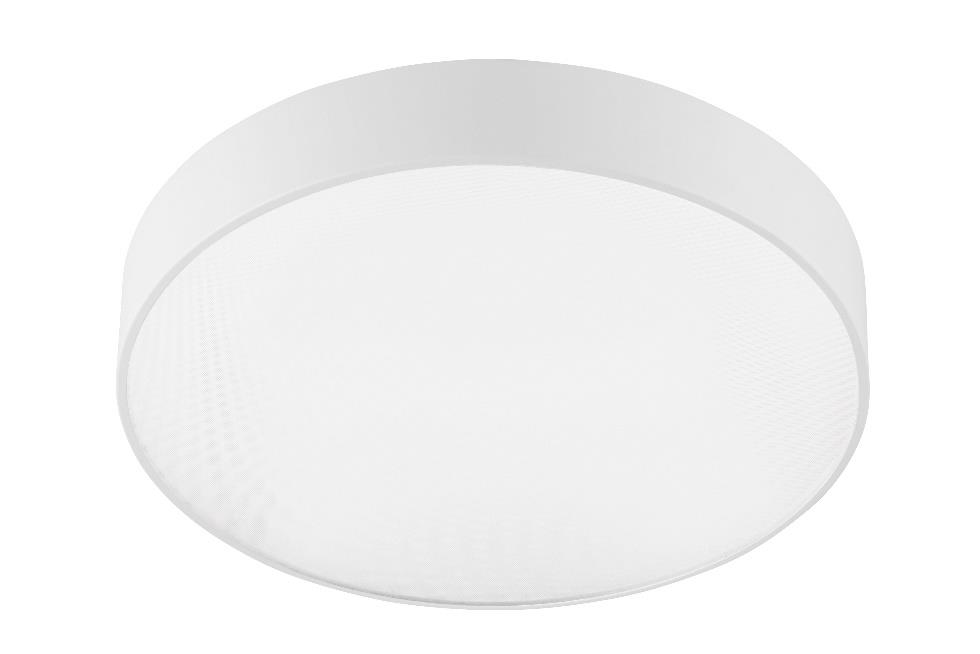

DA-ROCKET

Luminaires Surface mounted DA-CANEASHative LED luminaire
direct
opal PMMA diffuser/ matt micro -prismatic PMMA diffuser, UGR<19
steel sheet,
white (RAL9003)
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK02
Operating temperature range, ta 0+35
On the ceiling or suspended (accessories to be ordered separately). Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, public place

High flexibility to meet specific project requirements, as luminaires can
be pDA-CANOEBIRCHted to all RAL code colours on request. For more information
see the option list

Wire suspension set Suspension MTG KIT DA-ROCKET. For more information see the option list

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
Lodos S LED1x2050 E968 T830 OP
LT80 300 300 100 1919 15,9 121 80+ 3000 2,5
DA-ROCKET1x2750 E969 T830 OP
LT80 300 300 100 2614 21,4 122 80+ 3000 2,5
DA-ROCKET1x4100 E970 T830 OP
LT80 450 450 100 3880 30,3 128 80+ 3000 4,2
Lodos S LED1x5550 E971 T830 OP
LT80 450 450 100 5272 44,3 119 80+ 3000 4,2
DA-ROCKET1x6250 E972 T830 OP
LT80 600 600 100 5948 45 132 80+ 3000 7,1
DA-ROCKET1x8600 E973 T830 OP
LT80 600 600 100 8105 63,6 127 80+ 3000 7,1
Lodos S LED1x10550 E974 T830 OP
LT80 900 900 114 10057 73 138 80+ 3000 14,1
DA-ROCKET1x13450 E982 T830 OP
LT80 900 900 114 12832 94,1 136 80+ 3000 14,1
DA-ROCKET1x16550 J249 T830 OP
LT80 1140 1140 114 15765 112,0 141 80+ 3000 22,8
DA-ROCKET1x21100 J250 T830 OP
LT80 1140 1140 114 20115 145,9 138 80+ 3000 22,8
DA-ROCKET1x2050 E968 T840 OP
LT80 300 300 100 2009 15,9 126 80+ 4000 2,5
Lodos S LED1x2750 E969 T840 OP
LT80 300 300 100 2737 21,4 128 80+ 4000 2,5
