Description

DA-SANGUINARY LED

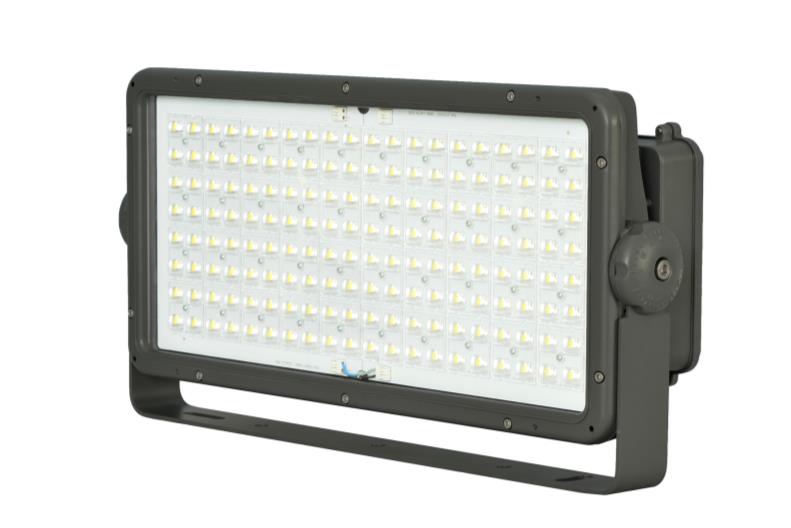

Floodlights Surface mounted high -power LED floodlight
direct
lenses, tempered glass diffuser, impact resistant
aluminium
dark grey , RAL 7043
MDA- 220 -240V, 50 -60Hz
LED lifetime, 135000/L80B10
3
I
IP 66
IK0 8
Operating temperature range, ta -40…+ 40 (LED1 x)/ ta -40…+50 (LED2 x; LED3x )
On the horizontal or vertical surface. Screw terminal, 3x1x2.5mm2
Outdoor
Industry, sports, transport terminal, airport

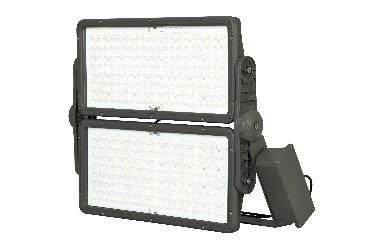

1x DALI models comes with separate gearbox 2x models comes with separate gearbox 3x models comes with separate gearbox
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI CCT*,
K Weight,
kg
DA-SANGUINARY1x52650 E950 T740 LS20 640 165 320 52616 335,5 155 70+ 4000 15,7
DA-SANGUINARY1x59050 E951 T740 LS20 640 165 320 59011 383 152 70+ 4000 15,7
DA-SANGUINARY1x71650 E952 T740 LS20 640 165 320 71630 488,3 145 70+ 4000 15,7
DA-SANGUINARY2x52650 E953 T740 LS20 750 300 580 105231 671 155 70+ 4000 34,5
DA-SANGUINARY2x59050 E954 T740 LS20 750 300 580 118023 766 152 70+ 4000 34,5
DA-SANGUINARY2x71650 E955 T740 LS20 750 300 580 143260 976,6 145 70+ 4000 34,5
DA-SANGUINARY3x52650 J835 T740 LS20 637 464 900 157847 1006,5 157 70+ 4000 41,5
DA-SANGUINARY3x59050 J836 T740 LS20 637 464 900 177034 1148,9 154 70+ 4000 41,5
DA-SANGUINARY3x71650 J837 T740 LS20 637 464 900 214890 1464,9 147 70+ 4000 41,5
*note 2x, 3x models comes with separate
gearbox
DA-SANGUINARY1x52100 E950 T740 LS30 640 165 320 52056 335,5 155 70+ 4000 15,7
DA-SANGUINARY1x58400 E951 T740 LS30 640 165 320 58384 383,0 152 70+ 4000 15,7
DA-SANGUINARY1x70900 E952 T740 LS30 640 165 320 70868 488,3 145 70+ 4000 15,7
DA-SANGUINARY2x52100 E953 T740 LS30 750 300 580 104112 671,0 155 70+ 4000 34,5
DA-SANGUINARY2x58400 E954 T740 LS30 750 300 580 116767 766,0 152 70+ 4000 34,5
DA-SANGUINARY2x70900 E955 T740 LS30 750 300 580 141736 976,6 145 70+ 4000 34,5
DA-SANGUINARY3x52100 J835 T740 LS30 637 464 900 156167 1006,5 155 70+ 4000 41,5
DA-SANGUINARY3x58400 J836 T740 LS30 637 464 900 175151 1148,9 152 70+ 4000 41,5
DA-SANGUINARY3x70900 J837 T740 LS30 637 464 900 212604 1464,9 145 70+ 4000 41,5
*note 2x, 3x models comes with separate
gearbox
DA-SANGUINARY1x52100 E950 T740 LS45 640 165 320 52056 335,5 155 70+ 4000 15,7
DA-SANGUINARY1x58400 E951 T740 LS45 640 165 320 58384 383,0 152 70+ 4000 15,7
DA-SANGUINARY1x70900 E952 T740 LS45 640 165 320 70868 488,3 145 70+ 4000 15,7
DA-SANGUINARY2x52100 E953 T740 LS45 750 300 580 104112 671,0 155 70+ 4000 34,5
