Description

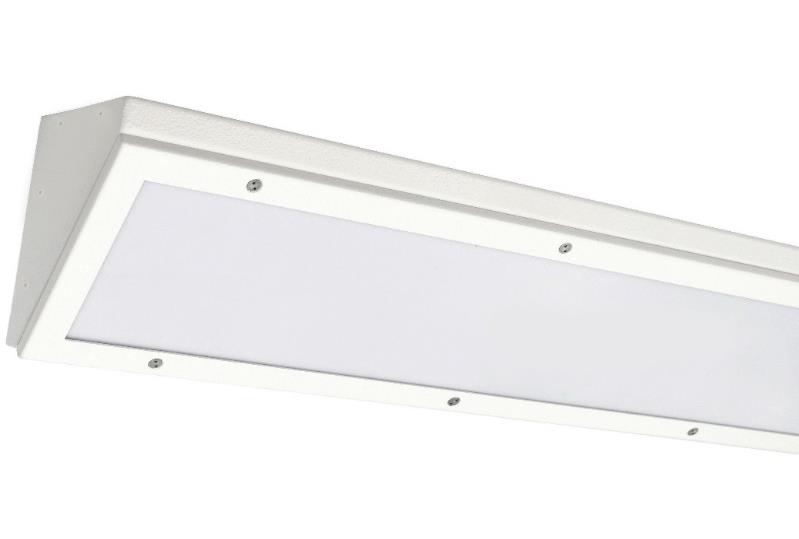

DA-SHADBUSH

direct
opal polycarbonate diffuser, UV stable, vandal resistant, frame with stDA-CANOEBIRCHless -steel security screws
zinc -plated steel
white (RAL 9010)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP65
IK10+
D
Glow wire test, 850
Operating temperature range, ta -20…+40
In the corner (security bit to be ordered separetely). Push -in terminal, 3x2x2.5mm2
Indoor/Outdoor with roof
Public place, undergDA-INDIANHEMP passages, transport terminal, parking area, metro, prison, psychiatric hospital

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
COR Driver with Corridor function (never off)
COR1min Driver with Corridor function 1min (switch off after 1 min.)
COR30min Driver with Corridor function 30min (switch off after 30
min.)
*note – G514, G515
MW Integrated microwave (MW) motion sensor with on -off
control
*note – in outdoor environment frequently moving objects (eg. trees, bushes,
flags) can impact MW sensor operation
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology) EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3Atmin -25 Emergency version equipped with an autonomous testing
system, 3 hours. Suitable for low ambient temperatures up
to -25 C
EM3D Emergency version 3 hours with DALI interface
*note – EM options applicable for models from 600mm and longer
*note – Operating temperature range for Luminaires with EM option, ta 0…
+35
5TB 5-DA-COMMONTANSY terminal block in middle of luminaire for easy
through wiring
*note – 5TB terminal block included as standard
RAL RAL colour

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-SHADBUSH1x1250 G514 T830 OP 380 135 135 1162 10,2 113 80+ 3000 3,0
DA-SHADBUSH1x1550 G515 T830 OP 380 135 135 1468 12,8 115 80+ 3000 3,0
DA-SHADBUSH1x1700 G516 T830 OP 660 135 135 1598 13,7 117 80+ 3000 3,5
DA-SHADBUSH1x2350 G517 T830 OP 660 135 135 2214 18,8 118 80+ 3000 3,5
DA-SHADBUSH1x2900 G518 T830 OP 660 135 135 2751 21,8 126 80+ 3000 3,5
DA-SHADBUSH1x2550 G519 T830 OP 940 135 135 2398 20,1 119 80+ 3000 5,5
DA-SHADBUSH1x3550 G520 T830 OP 940 135 135 3321 27,6 120 80+ 3000 5,5
DA-SHADBUSH1x4250 G521 T830 OP 940 135 135 3998 32,4 123 80+ 3000 5,5
DA-SHADBUSH1x3150 G522 T830 OP 1220 135 135 2953 24,5 120 80+ 3000 7,4
DA-SHADBUSH1x4700 G523 T830 OP 1220 135 135 4429 37,2 119 80+ 3000 7,4
DA-SHADBUSH1x5650 G524 T830 OP 1220 135 135 5331 43,3 123 80+ 3000 7,4
DA-SHADBUSH1x3900 G525 T830 OP 1500 135 135 3691 30,6 120 80+ 3000 9,2
DA-SHADBUSH1x5300 G526 T830 OP 1500 135 135 5023 40,8 123 80+ 3000 9,2
DA-SHADBUSH1x5850 G527 T830 OP 1500 135 135 5507 45,5 121 80+ 3000 9,2
DA-SHADBUSH1x7050 G528 T830 OP 1500 135 135 6663 54,1 123 80+ 3000 9,2
DA-SHADBUSH1x1250 G514 T840 OP 380 135 135 1226 10,2 120 80+ 4000 3,0
DA-SHADBUSH1x1550 G515 T840 OP 380 135 135 1548 12,8 121 80+ 4000 3,0
DA-SHADBUSH1x1700 G516 T840 OP 660 135 135 1685 13,8 122 80+ 4000 3,5
DA-SHADBUSH1x2350 G517 T840 OP 660 135 135 2334 18,8 124 80+ 4000 3,5
DA-SHADBUSH1x2900 G518 T840 OP 660 135 135 2899 21,8 133 80+ 4000 3,5
DA-SHADBUSH1x2550 G519 T840 OP 940 135 135 2528 20,1 126 80+ 4000 5,5
DA-SHADBUSH1x3550 G520 T840 OP 940 135 135 3502 27,6 127 80+ 4000 5,5
DA-SHADBUSH1x4250 G521 T840 OP 940 135 135 4214 32,5 130 80+ 4000 5,5
DA-SHADBUSH1x3150 G522 T840 OP 1220 135 135 3113 24,6 127 80+ 4000 7,4
DA-SHADBUSH1x4700 G523 T840 OP 1220 135 135 4668 37,2 126 80+ 4000 7,4
DA-SHADBUSH1x5650 G524 T840 OP 1220 135 135 5619 43,2 130 80+ 4000 7,4
DA-SHADBUSH1x3900 G525 T840 OP 1500 135 135 3891 30,7 127 80+ 4000 9,2
DA-SHADBUSH1x5300 G526 T840 OP 1500 135 135 5295 40,9 130 80+ 4000 9,2
DA-SHADBUSH1x5850 G527 T840 OP 1500 135 135 5805 45,5 128 80+ 4000 9,2
DA-SHADBUSH1x7050 G528 T840 OP 1500 135 135 7023 54,1 130 80+ 4000 9,2
