Description

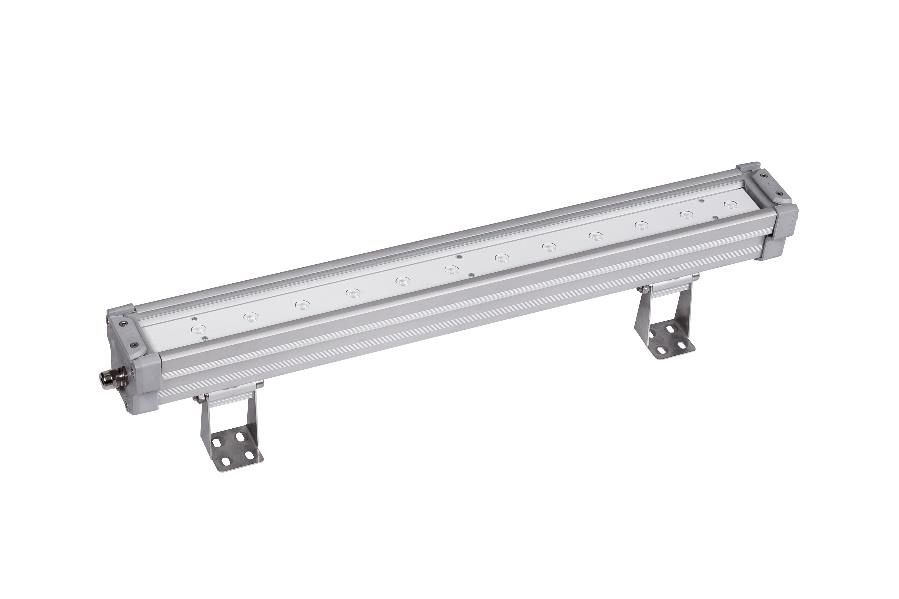

DA-SNAKEBERRY LED

direct
lenses, 30 , tempered glass diffuser, impact resistant
aluminium
light grey MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B50
3
I
IP66
IK09
Operating temperature range, ta -25+40
On the horizontal or vertical surface (mounting bracket included). Cable, 1.0m, 3×1.5mm2
Outdoor

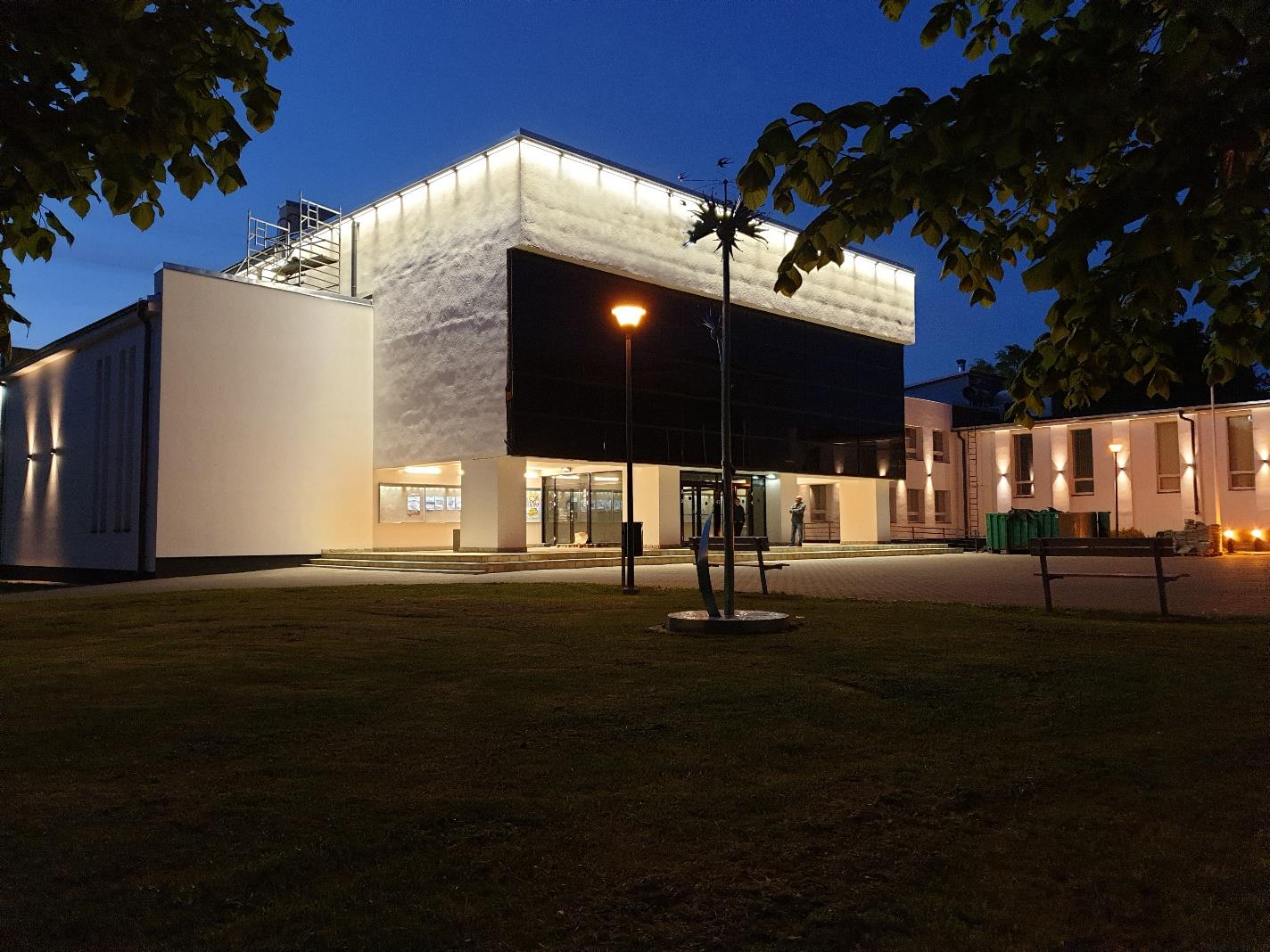

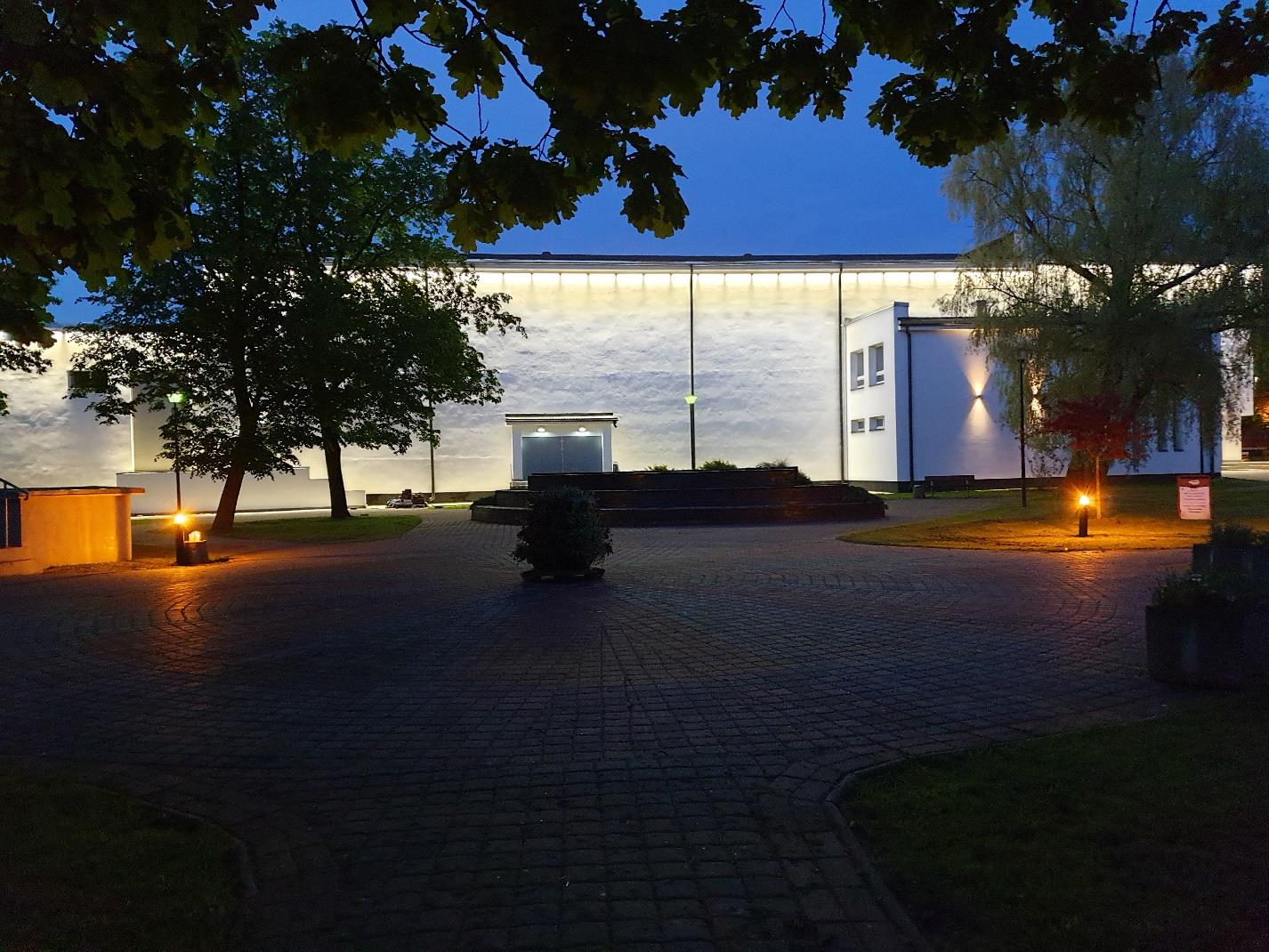

Facade illumination

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T730 Colour temperature 3000K, CRI 70+
T740 Colour temperature 4000K, CRI 70+
DALI Driver with DALI interface and switch -control dimming L30 Optics with 30×30 beam DA-WHITEMAPLE
1LIN 2xCBF3x0.3m Through wiring single phase d=1.5 mm with two flexible
cables 3×1.5mm . 0.3m
STANDARD Power supply connector – IP66/IP68,
3×1.5mm2
Quick and easy to connect power supply
and luminaire cable connector – IP66/IP68, 3×1.5mm2,
400V/16A, 1pcs
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-SNAKEBERRY1x1900 D775 T730 L30 705 82 164 1821 15,8 120 70+ 3000 3
DA-SNAKEBERRY1x2400 D776 T730 L30 705 82 164 2275 22,6 105 70+ 3000 3
DA-SNAKEBERRY1x3200 D777 T730 L30 705 82 164 3036 29,9 106 70+ 3000 3
DA-SNAKEBERRY1x3800 D778 T730 L30 1265 82 164 3643 29,9 127 70+ 3000 6
DA-SNAKEBERRY1x4800 D779 T730 L30 1265 82 164 4551 42,7 111 70+ 3000 6
DA-SNAKEBERRY1x6400 D780 T730 L30 1265 82 164 6072 59,7 106 70+ 3000 6
DA-SNAKEBERRY1x1900 D775 T740 L30 705 82 164 1897 15,8 120 70+ 4000 3
DA-SNAKEBERRY1x2400 D776 T740 L30 705 82 164 2370 22,6 105 70+ 4000 3
DA-SNAKEBERRY1x3200 D777 T740 L30 705 82 164 3162 29,9 106 70+ 4000 3
DA-SNAKEBERRY1x3800 D778 T740 L30 1265 82 164 3794 29,9 127 70+ 4000 6
DA-SNAKEBERRY1x4800 D779 T740 L30 1265 82 164 4740 42,7 111 70+ 4000 6
DA-SNAKEBERRY1x6400 D780 T740 L30 1265 82 164 6324 59,7 106 70+ 4000 6
