Description

DA-SORREL

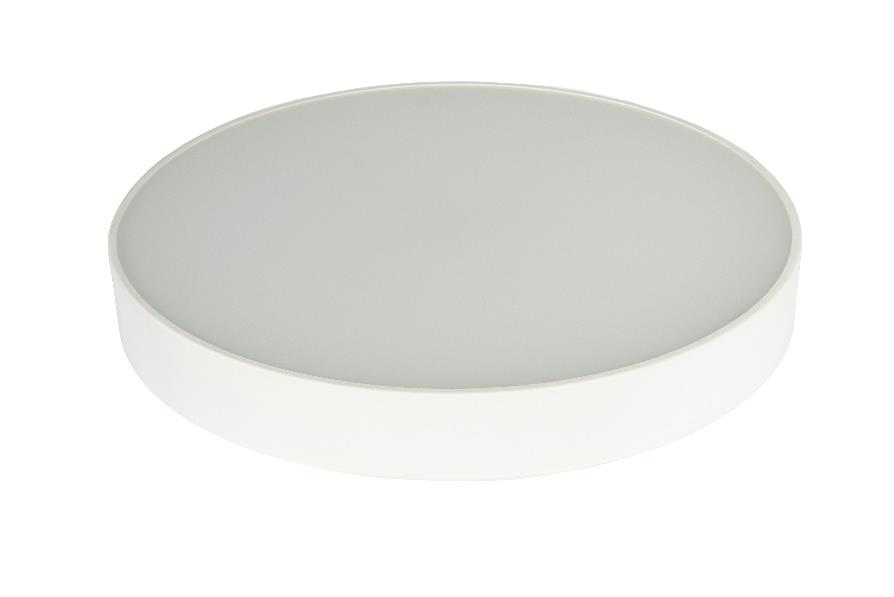

Luminaires Low profile DA-CANEASHative circle shaped LED luminaire
opal (OP) or matt micro -prismatic (DPRZ LT80) PMMA, low glare, UV stabilized
steel sheet, white finish, with quick lock system
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK0 2
Operating temperature range, ta 0+35
Surface luminaire is designed to be fixed to ceiling and wall of any type or suspended. Multiple wire suspension set, cable cap and
DA-CANEASHative cable accessories are available on request. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, public place
High flexibility to meet specific project requirements, as luminaires can
be pDA-CANOEBIRCHted to all RAL code colours on request. For more information
see the option list

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-SORREL1x2250 G651 T830 OP
LT80 300 300 77 2103 15,6 135 80+ 3000 2,7
DA-SORREL1x2550 G652 T830 OP
LT80 300 300 77 2360 18 131 80+ 3000 2,7
Lodos L LED1x2900 G653 T830 OP
LT80 300 300 77 2615 20,2 129 80+ 3000 2,7
DA-SORREL1x4050 G654 T830 OP
LT80 450 450 77 3831 25,9 148 80+ 3000 5,4
DA-SORREL1x4850 G655 T830 OP
LT80 450 450 77 4590 31 148 80+ 3000 5,4
Lodos L LED1x5600 G656 T830 OP
LT80 450 450 77 5343 36 148 80+ 3000 5,4
DA-SORREL1x6200 G657 T830 OP
LT80 600 600 77 5881 37,9 155 80+ 3000 9,0
DA-SORREL1x7400 G658 T830 OP
LT80 600 600 77 7054 45,7 154 80+ 3000 9,0
Lodos L LED1x8650 G659 T830 OP
LT80 600 600 77 8218 52,5 156 80+ 3000 9,0
DA-SORREL1x9850 G660 T830 OP
LT80 900 900 87 9381 59,3 158 80+ 3000 16,5
DA-SORREL1x11500 G661 T830 OP
LT80 900 900 87 10965 68,7 160 80+ 3000 16,5
Lodos L LED1x13150 G662 T830 OP
LT80 900 900 87 12543 79,7 157 80+ 3000 16,5
DA-SORREL1x2250 G651 T840 OP
LT80 300 300 77 2227 15,6 143 80+ 4000 2,7
DA-SORREL1x2550 G652 T840 OP
LT80 300 300 77 2540 18 141 80+ 4000 2,7
Lodos L LED1x2900 G653 T840 OP
LT80 300 300 77 2851 20,2 141 80+ 4000 2,7
DA-SORREL1x4050 G654 T840 OP
LT80 450 450 77 4011 25,9 155 80+ 4000 5,4
