Description

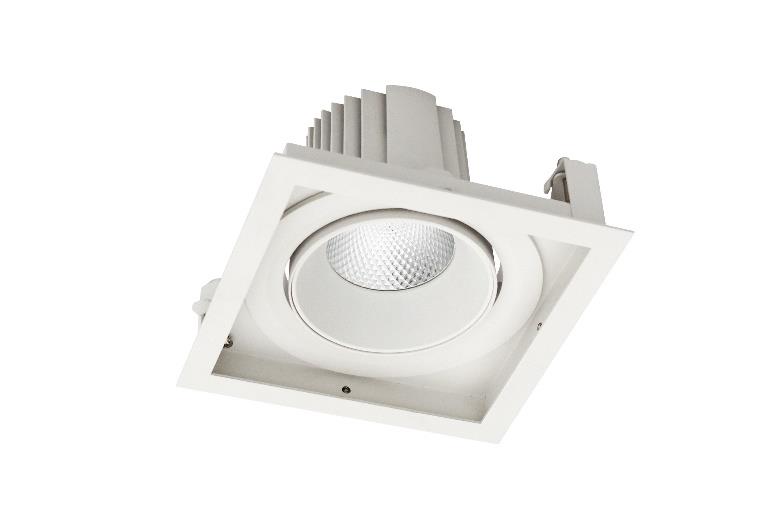

DA-SPOOLWOOD

direct
faceted aluminium reflector, clear PMMA diffuser
aluminium
white (RAL 9016)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 60000/L80B10 (T930, T940: 50000/L80B10 )
3
II
IP20
IK02
Operating temperature range, ta 0+35
In ceilings with cut -out openings (mounting brackets included). Push -in terminal, 2×1.5mm2
Indoor
Retail, showroom, museum, exhibition, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-SPOOLWOOD1x1900 E828 T830 R40 175 175 119 1799 13,5 133 80+ 3000 1,4
DA-SPOOLWOOD1x2500 E829 T830 R40 175 175 119 2444 18,7 131 80+ 3000 1,4
DA-SPOOLWOOD1x3350 E830 T830 R40 175 175 119 3290 26,5 124 80+ 3000 1,4
DA-SPOOLWOOD1x1900 E828 T840 R40 175 175 119 1901 13,5 141 80+ 4000 1,4
DA-SPOOLWOOD1x2500 E829 T840 R40 175 175 119 2583 18,7 138 80+ 4000 1,4
DA-SPOOLWOOD1x3350 E830 T840 R40 175 175 119 3478 26,5 131 80+ 4000 1,4
DA-SPOOLWOOD1x1900 E828 T930 R40 175 175 119 1525 13,3 115 90+ 3000 1,4
DA-SPOOLWOOD1x2500 E829 T930 R40 175 175 119 2090 18,2 115 90+ 3000 1,4
DA-SPOOLWOOD1x3350 E830 T930 R40 175 175 119 2839 25,8 110 90+ 3000 1,4
DA-SPOOLWOOD1x1900 E828 T940 R40 175 175 119 1606 13,3 121 90+ 4000 1,4
DA-SPOOLWOOD1x2500 E829 T940 R40 175 175 119 2202 18,2 121 90+ 4000 1,4
DA-SPOOLWOOD1x3350 E830 T940 R40 175 175 119 2993 25,8 116 90+ 4000 1,4

DA-SPOOLWOOD2x1900 E831 T830 R40 350 175 119 3598 27,1 133 80+ 3000 2,4
DA-SPOOLWOOD2x2500 E832 T830 R40 350 175 119 4888 37,3 131 80+ 3000 2,4
DA-SPOOLWOOD2x3350 E833 T830 R40 350 175 119 6581 53,0 124 80+ 3000 2,4
DA-SPOOLWOOD2x1900 E831 T840 R40 350 175 119 3803 27,1 140 80+ 4000 2,4
DA-SPOOLWOOD2x2500 E832 T840 R40 350 175 119 5167 37,3 139 80+ 4000 2,4
DA-SPOOLWOOD2x3350 E833 T840 R40 350 175 119 6956 53,0 131 80+ 4000 2,4
DA-SPOOLWOOD2x1900 E831 T930 R40 350 175 119 3050 26,6 115 90+ 3000 2,4
DA-SPOOLWOOD2x2500 E832 T930 R40 350 175 119 4180 36,4 115 90+ 3000 2,4
DA-SPOOLWOOD2x3350 E833 T930 R40 350 175 119 5678 51,6 110 90+ 3000 2,4
DA-SPOOLWOOD2x1900 E831 T940 R40 350 175 119 3213 26,6 121 90+ 4000 2,4
DA-SPOOLWOOD2x2500 E832 T940 R40 350 175 119 4405 36,4 121 90+ 4000 2,4
DA-SPOOLWOOD2x3350 E833 T940 R40 350 175 119 5986 51,6 116 90+ 4000 2,4
