Description

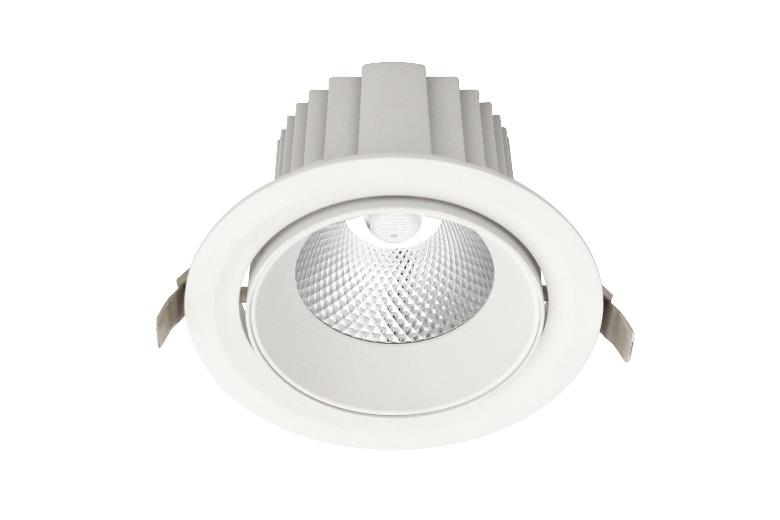

DA-SQUAWBUSH

direct
faceted aluminium reflector, clear PMMA diffuser, tilting 30, rotatable 355
aluminium
white (RAL9016)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 60000/L80B10 (T930, T940: 50000/L80B10)
3
II
IP20
IK02
Operating temperature range, ta 0+35
In ceilings with cut -out openings (mounting brackets included). Push -in terminal, 2×1.5mm2
Indoor
Retail, showroom, museum, exhibition, public place

A spotlight ensures flexibility by adjusting luminaire according to your requirements

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-SQUAWBUSH1x1950 E834 T830 R40 180 180 125 1841 13,5 136 80+ 3000 1,4
DA-SQUAWBUSH LED1x2600 E835 T830 R40 180 180 125 2501 18,7 134 80+ 3000 1,4
DA-SQUAWBUSH1x3400 E836 T830 R40 180 180 125 3367 26,5 127 80+ 3000 1,4
DA-SQUAWBUSH1x4300 J190 T830 R40 180 180 125 4223 34,0 124 80+ 3000 1,5
DA-SQUAWBUSH LED1x4850 E837 T830 R40 180 180 125 4823 40,2 120 80+ 3000 1,5
DA-SQUAWBUSH1x1950 E834 T840 R40 180 180 125 1946 13,5 144 80+ 4000 1,4
DA-SQUAWBUSH1x2600 E835 T840 R40 180 180 125 2644 18,7 141 80+ 4000 1,4
DA-SQUAWBUSH LED1x3400 E836 T840 R40 180 180 125 3559 26,5 134 80+ 4000 1,4
DA-SQUAWBUSH1x4300 J190 T840 R40 180 180 125 4464 34,0 131 80+ 4000 1,5
DA-SQUAWBUSH1x4850 E837 T840 R40 180 180 125 5099 40,2 127 80+ 4000 1,5
DA-SQUAWBUSH LED1x1950 E834 T930 R40 180 180 125 1560 13,3 117 90+ 3000 1,4
DA-SQUAWBUSH1x2600 E835 T930 R40 180 180 125 2138 18,2 117 90+ 3000 1,4
DA-SQUAWBUSH1x3400 E836 T930 R40 180 180 125 2905 25,8 113 90+ 3000 1,4
DA-SQUAWBUSH LED1x4300 J190 T930 R40 180 180 125 3604 34,0 106 90+ 3000 1,5
DA-SQUAWBUSH1x4850 E837 T930 R40 180 180 125 4116 40,2 102 90+ 3000 1,5
DA-SQUAWBUSH1x1950 E834 T940 R40 180 180 125 1644 13,3 124 90+ 4000 1,4
DA-SQUAWBUSH LED1x2600 E835 T940 R40 180 180 125 2254 18,2 124 90+ 4000 1,4
DA-SQUAWBUSH1x3400 E836 T940 R40 180 180 125 3062 25,8 119 90+ 4000 1,4
DA-SQUAWBUSH1x4300 J190 T940 R40 180 180 125 3799 34,0 112 90+ 4000 1,5
DA-SQUAWBUSH LED1x4850 E837 T940 R40 180 180 125 4338 40,2 108 90+ 4000 1,5
