Description

DA-SWINIES

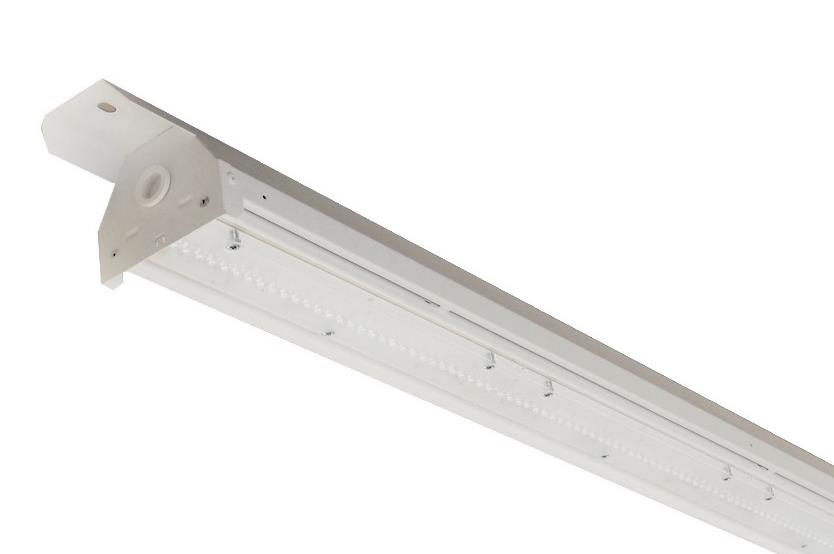

Luminaires Surface mounted industrial LED luminaire
direct
lenses
steel
white (RAL 9003)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
I
3
IP23
IK07
Operating temperature range, ta -10+40 / -10…+35
On the ceiling or suspended (suspension brackets to be ordered separately). Push -in terminal, 5x2x2.5mm2
Indoor
Retail, industry, warehouse, hall, public place

Supplied with a hinged reflector unit, which can be opened for easy
installation and access to terminal block. Just open reflector by
removing lock screw, connect cable to the terminal block and close it.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-SWINIES1x5300 G415 T830 L30 1245 90 73 4938 31,3 158 80+ 3000 3,4
DA-SWINIES1x7600 G416 T830 L30 1245 90 73 7092 41,6 170 80+ 3000 3,4
DA-SWINIES1x10500 G417 T830 L30 1245 90 73 9825 59,8 164 80+ 3000 3,4
DA-SWINIES1x6600 G419 T830 L30 1539 90 73 6173 38,7 159 80+ 3000 4,0
DA-SWINIES1x9450 G420 T830 L30 1539 90 73 8865 51,5 172 80+ 3000 4,0
DA-SWINIES1x13100 G421 T830 L30 1539 90 73 12282 74,8 164 80+ 3000 4,0
DA-SWINIES1x5300 G415 T840 L30 1245 90 73 5205 31,3 166 80+ 4000 3,4
DA-SWINIES1x7600 G416 T840 L30 1245 90 73 7475 41,6 179 80+ 4000 3,4
DA-SWINIES1x10500 G417 T840 L30 1245 90 73 10357 59,8 173 80+ 4000 3,4
DA-SWINIES1x6600 G419 T840 L30 1539 90 73 6507 38,7 168 80+ 4000 4,0
DA-SWINIES1x9450 G420 T840 L30 1539 90 73 9344 51,5 181 80+ 4000 4,0
DA-SWINIES1x13100 G421 T840 L30 1539 90 73 12946 74,8 173 80+ 4000 4,0

DA-SWINIES1x5300 G415 T830
L40x75 1245 90 73 4938 31,3 158 80+ 3000 3,4
DA-SWINIES1x7600 G416 T830
L40x75 1245 90 73 7092 41,6 170 80+ 3000 3,4
DA-SWINIES1x10500 G417 T830
L40x75 1245 90 73 9825 59,8 164 80+ 3000 3,4
DA-SWINIES1x6600 G419 T830
L40x75 1539 90 73 6173 38,7 159 80+ 3000 4,0
DA-SWINIES1x9450 G420 T830
L40x75 1539 90 73 8865 51,5 172 80+ 3000 4,0
DA-SWINIES1x13100 G421 T830
L40x75 1539 90 73 12282 74,8 164 80+ 3000 4,0
DA-SWINIES1x5300 G415 T840
L40x75 1245 90 73 5205 31,3 166 80+ 4000 3,4
DA-SWINIES1x7600 G416 T840
L40x75 1245 90 73 7475 41,6 179 80+ 4000 3,4
DA-SWINIES1x10500 G417 T840
L40x75 1245 90 73 10357 59,8 173 80+ 4000 3,4
DA-SWINIES1x6600 G419 T840
L40x75 1539 90 73 6507 38,7 168 80+ 4000 4,0
DA-SWINIES1x9450 G420 T840
L40x75 1539 90 73 9344 51,5 181 80+ 4000 4,0
DA-SWINIES1x13100 G421 T840
L40x75 1539 90 73 12946 74,8 173 80+ 4000 4,0

DA-SWINIES1x5300 G415 T830 L75 1245 90 73 4990 31,3 159 80+ 3000 3,4
DA-SWINIES1x7600 G416 T830 L75 1245 90 73 7166 41,6 172 80+ 3000 3,4
DA-SWINIES1x10500 G417 T830 L75 1245 90 73 9929 59,8 166 80+ 3000 3,4
DA-SWINIES1x6600 G419 T830 L75 1539 90 73 6238 38,7 161 80+ 3000 4,0
