Description

DA-THISTLE

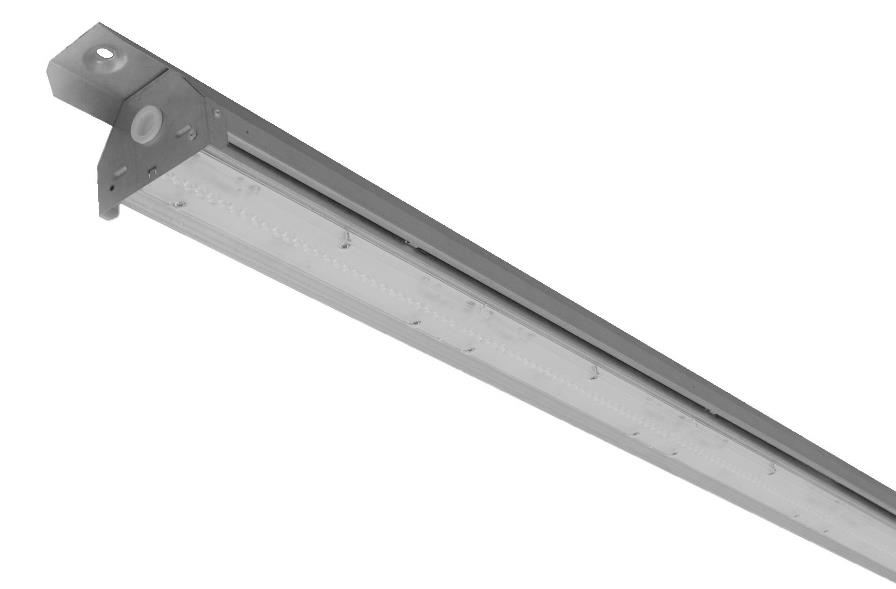

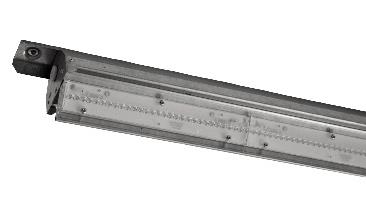

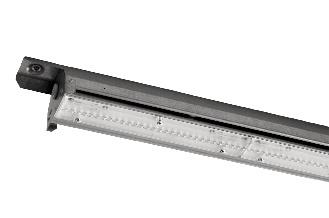

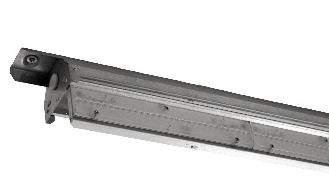

Luminaires Surface mounted industrial LED luminaire
direct
lenses
zinc coated steel
light grey
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 100000/L80B10
I
3
IP23
IK07
Operating temperature range, ta -10+40/ ta -10…+35
On the ceiling or suspended (suspension brackets to be ordered separately). Push -in terminal, 5x2x2.5mm2
Indoor

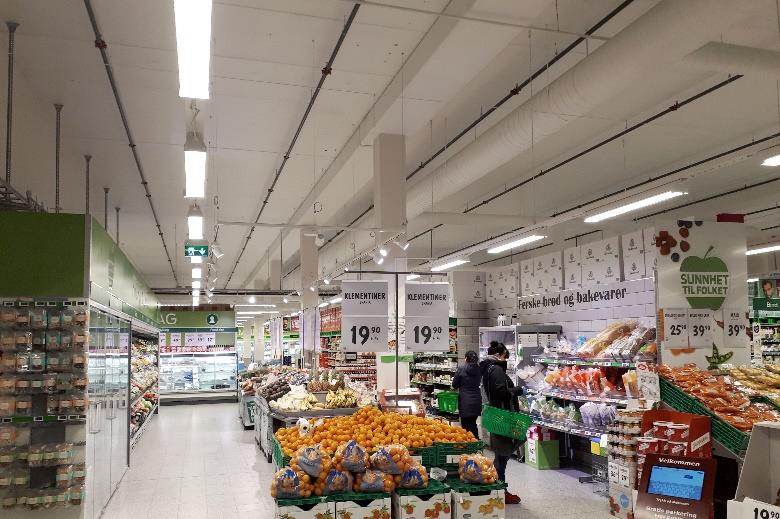

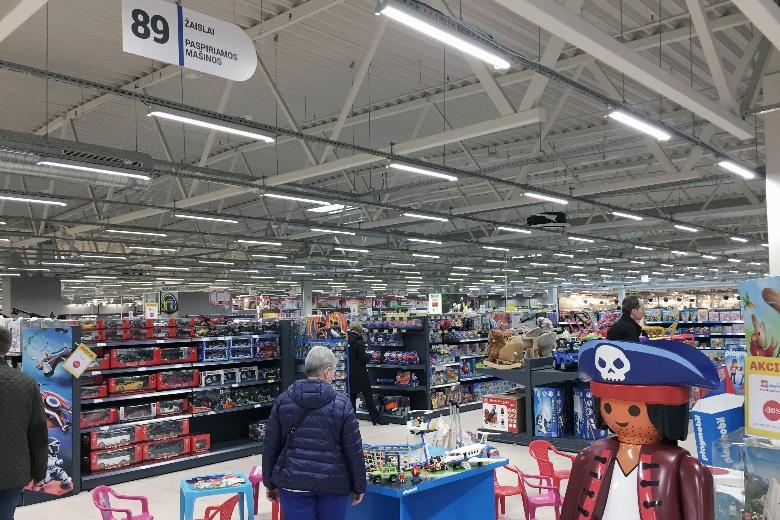

Retail, industry, warehouse, hall, public place

Supplied with a hinged reflector unit, which
can be opened for easy installation and
access to terminal block. Just open reflector
by removing lock screw, connect cable to the
terminal block and close it.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power* ,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-THISTLE1x5300 G423 T830 L30 1245 90 73 4938 31,3 158 80+ 3000 3,4
DA-THISTLE1x7600 G424 T830 L30 1245 90 73 7092 41,6 170 80+ 3000 3,4
DA-THISTLE1x10500 G425 T830 L30 1245 90 73 9825 59,8 164 80+ 3000 3,4
DA-THISTLE1x6600 G427 T830 L30 1539 90 73 6173 38,7 159 80+ 3000 4
DA-THISTLE1x9450 G428 T830 L30 1539 90 73 8865 51,5 172 80+ 3000 4
DA-THISTLE1x13100 G426 T830 L30 1539 90 73 12282 74,8 164 80+ 3000 4
DA-THISTLE1x5300 G423 T840 L30 1245 90 73 5205 31,3 166 80+ 4000 3,4
DA-THISTLE1x7600 G424 T840 L30 1245 90 73 7475 41,6 179 80+ 4000 3,4
DA-THISTLE1x10500 G425 T840 L30 1245 90 73 10357 59,8 173 80+ 4000 3,4
DA-THISTLE1x6600 G427 T840 L30 1539 90 73 6507 38,7 168 80+ 4000 4
DA-THISTLE1x9450 G428 T840 L30 1539 90 73 9344 51,5 181 80+ 4000 4
DA-THISTLE1x13100 G426 T840 L30 1539 90 73 12946 74,8 173 80+ 4000 4

DA-THISTLE1x5300 G423 T830 L40x75 1245 90 73 4938 31,3 158 80+ 3000 3,4
DA-THISTLE1x7600 G424 T830 L40x75 1245 90 73 7092 41,6 170 80+ 3000 3,4
DA-THISTLE1x10500 G425 T830
L40x75 1245 90 73 9825 59,8 164 80+ 3000 3,4
DA-THISTLE1x6600 G427 T830 L40x75 1539 90 73 6173 38,7 159 80+ 3000 4
DA-THISTLE1x9450 G428 T830 L40x75 1539 90 73 8865 51,5 172 80+ 3000 4
DA-THISTLE1x13100 G426 T830
L40x75 1539 90 73 12282 74,8 164 80+ 3000 4
DA-THISTLE1x5300 G423 T840 L40x75 1245 90 73 5205 31,3 166 80+ 4000 3,4
DA-THISTLE1x7600 G424 T840 L40x75 1245 90 73 7475 41,6 179 80+ 4000 3,4
DA-THISTLE1x10500 G425 T840
L40x75 1245 90 73 10357 59,8 173 80+ 4000 3,4
DA-THISTLE1x6600 G427 T840 L40x75 1539 90 73 6507 38,7 168 80+ 4000 4
DA-THISTLE1x9450 G428 T840 L40x75 1539 90 73 9344 51,5 181 80+ 4000 4
DA-THISTLE1x13100 G426 T840
L40x75 1539 90 73 12946 74,8 173 80+ 4000 4

DA-THISTLE1x5300 G423 T830 L75 1245 90 73 4990 31,3 159 80+ 3000 3,4
DA-THISTLE1x7600 G424 T830 L75 1245 90 73 7166 41,6 172 80+ 3000 3,4
DA-THISTLE1x10500 G425 T830 L75 1245 90 73 9929 59,8 166 80+ 3000 3,4
DA-THISTLE1x6600 G427 T830 L75 1539 90 73 6238 38,7 161 80+ 3000 4
DA-THISTLE1x9450 G428 T830 L75 1539 90 73 8958 51,5 174 80+ 3000 4
DA-THISTLE1x13100 G426 T830 L75 1539 90 73 12411 74,8 166 80+ 3000 4
DA-THISTLE1x5300 G423 T840 L75 1245 90 73 5260 31,3 168 80+ 4000 3,4
DA-THISTLE1x7600 G424 T840 L75 1245 90 73 7554 41,6 181 80+ 4000 3,4
DA-THISTLE1x10500 G425 T840 L75 1245 90 73 10466 59,8 175 80+ 4000 3,4
DA-THISTLE1x6600 G427 T840 L75 1539 90 73 6575 38,7 170 80+ 4000 4
DA-THISTLE1x9450 G428 T840 L75 1539 90 73 9442 51,5 183 80+ 4000 4
