Description

DA-TOMATO

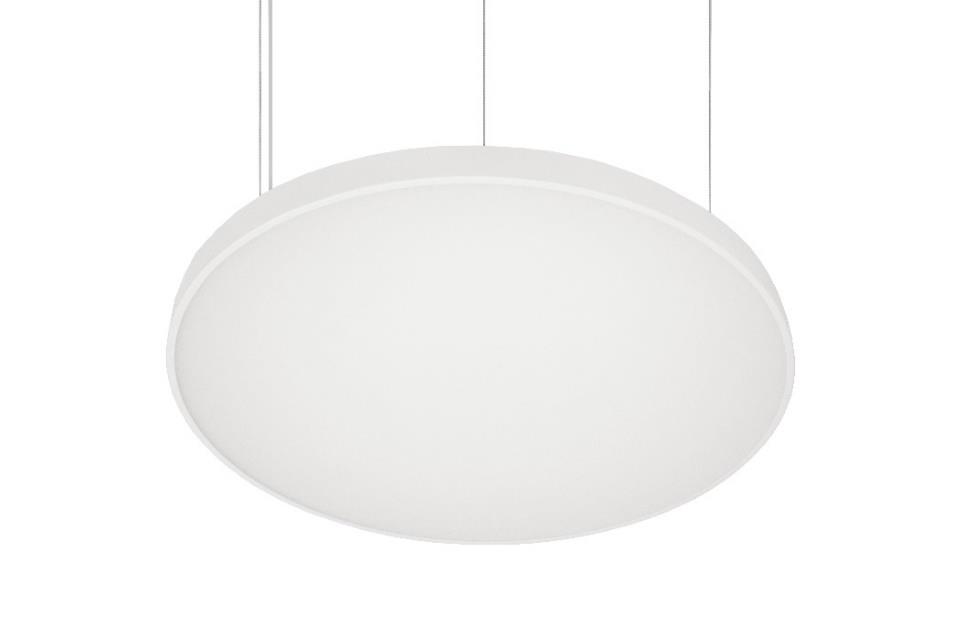

Luminaires Suspended DA-CANEASHative LED luminaire with ultra -low appearance
direct
opal PMMA / matt micro -prismatic, UV stabilized
steel
white (RAL9003S)
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK02
Operating temperature range, ta 0+35
Suspended (accessories to be ordered separately). Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-TOMATO1x6200 J251 T830 OP
LT80 600 600 56* 5881 37,9 155 80+ 3000 5,2
DA-TOMATO1x7400 J252 T830 OP
LT80 600 600 56* 7054 45,7 154 80+ 3000 5,2
DA-TOMATO1x8650 J253 T830 OP
LT80 600 600 56* 8218 52,5 157 80+ 3000 5,2
DA-TOMATO1x9850 J254 T830 OP
LT80 900 900 61* 9381 59,3 158 80+ 3000 9,7
Lodos H LED1x11500 J255 T830 OP
LT80 900 900 61* 10965 68,7 160 80+ 3000 9,7
DA-TOMATO1x13150 J256 T830 OP
LT80 900 900 61* 12543 79,7 157 80+ 3000 9,7
DA-TOMATO1x6200 J251 T840 OP
LT80 600 600 56* 6157 37,9 162 80+ 4000 5,2
Lodos H LED1x7400 J252 T840 OP
LT80 600 600 56* 7385 45,7 162 80+ 4000 5,2
DA-TOMATO1x8650 J253 T840 OP
LT80 600 600 56* 8604 52,5 164 80+ 4000 5,2
DA-TOMATO1x9850 J254 T840 OP
LT80 900 900 61* 9821 59,3 166 80+ 4000 9,7
Lodos H LED1x11500 J255 T840 OP
LT80 900 900 61* 11480 68,7 167 80+ 4000 9,7
DA-TOMATO1x13150 J256 T840 OP
LT80 900 900 61* 13132 79,7 165 80+ 4000 9,7

DA-TOMATO1x5750 J251 T830 DPRZ
LT80 600 600 56* 5480 37,9 145 80+ 3000 5,2
Lodos H LED1x6900 J252 T830 DPRZ
LT80 600 600 56* 6573 45,7 144 80+ 3000 5,2
DA-TOMATO1x8050 J253 T830 DPRZ
LT80 600 600 56* 7658 52,5 146 80+ 3000 5,2
DA-TOMATO1x9400 J254 T830 DPRZ
LT80 900 900 61* 8954 59,3 151 80+ 3000 9,7
Lodos H LED1x11000 J255 T830 DPRZ
LT80 900 900 61* 10467 68,7 152 80+ 3000 9,7
DA-TOMATO1x12550 J256 T830 DPRZ
LT80 900 900 61* 11973 79,7 150 80+ 3000 9,7
