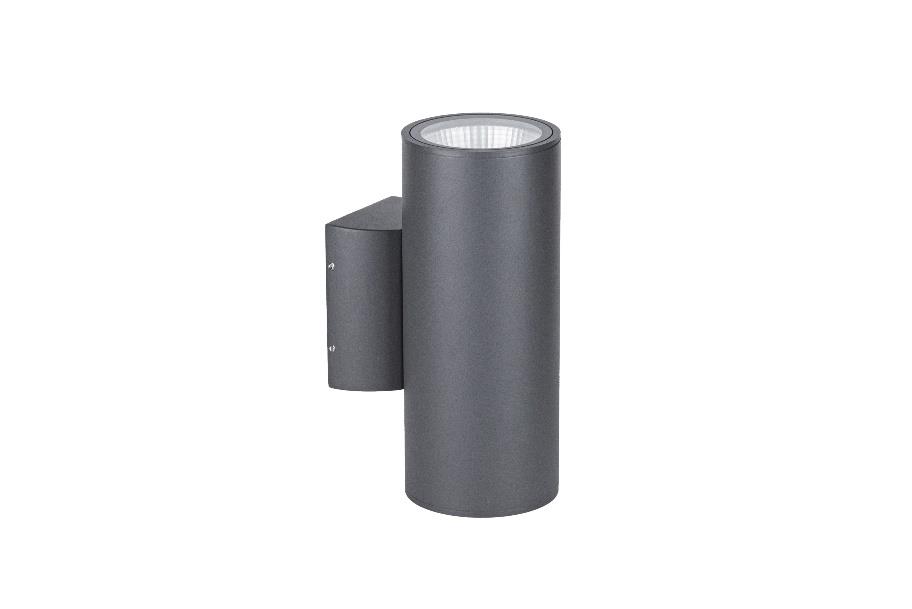

DA-TOUCHMENOT

direct/indirect or direct reflectors or lenses, tempered glass diffuser

Housing:

aluminium

dark grey, RAL7043

Mains voltage:

MDA – 220-240V, 50/60Hz

LED lifetime:

50000/L80B50

SDCM:

5

Protection class IEC:

I

Ingress protection code:

IP65

Mechanical impact resistance:

IK08

Operating temperature range:

ta -30+45

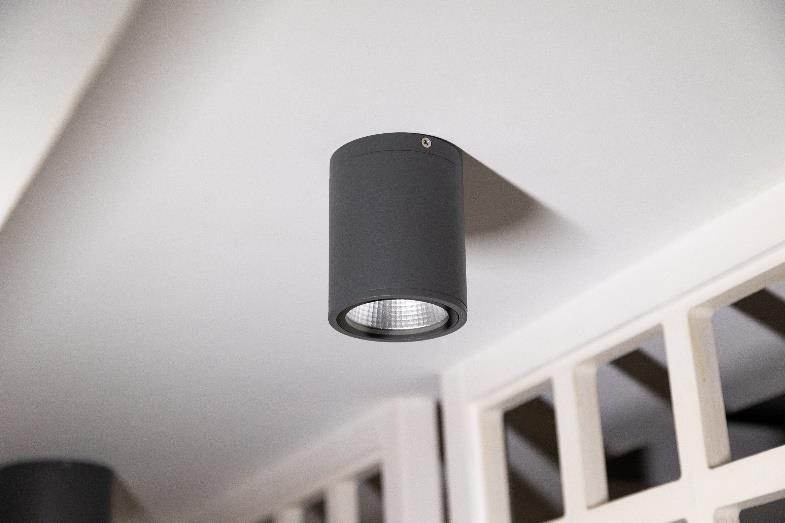

On the wall. Screw terminal, 3x1x2.5mm2. On the ceiling. Cable, 0.15m, 3×1.0mm2

Environment:

Outdoor

Application:

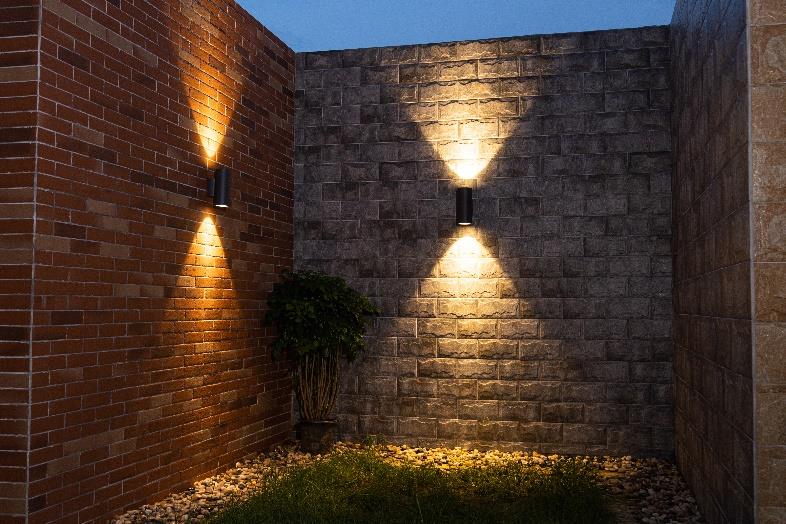

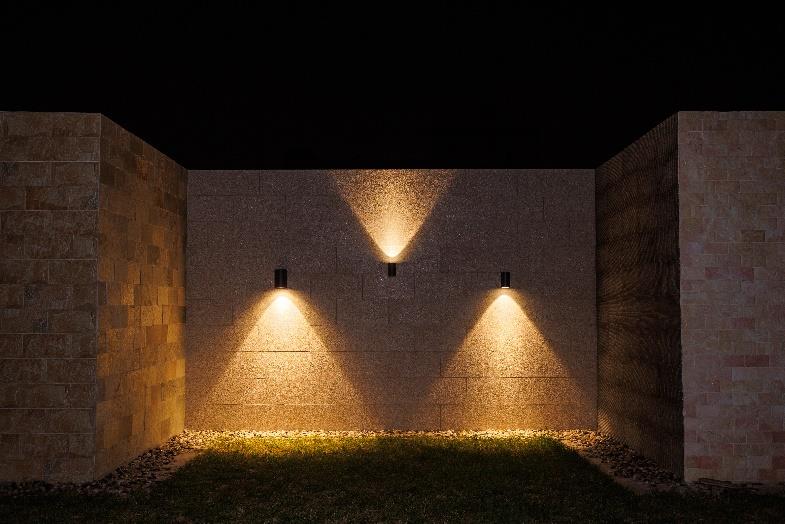

Facade illumination / Facade illumination, parking area, public space
