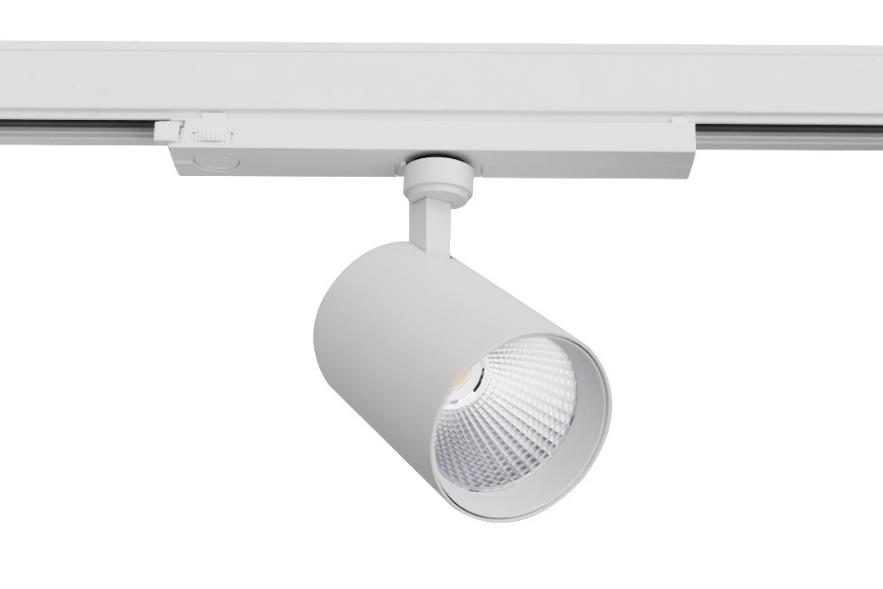

Description

DA-TREEONION

direct
faceted aluminium reflector, clear PMMA diffuser
aluminium
white (RAL9016), black ( RAL9017 )
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 60000/L80B10 (T930, T940: 50000/L80B10)
3
II
IP20
IK02
Operating temperature range, ta 0+35
In 3-phase track. Track adaptor (3 -phase + N) with phase selector
Indoor
Retail, showroom, museum, exhibition, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-TREEONION1x1900 G603 T830 R40 170 82 164 1799 13,5 133 80+ 3000 0,6
Capheus B LED1x2500 G604 T830 R40 170 82 164 2444 18,7 131 80+ 3000 0,6
DA-TREEONION1x3350 G605 T830 R40 170 82 164 3290 26,5 124 80+ 3000 0,6
DA-TREEONION1x4250 G606 T830 R40 234 99 180 4127 34,0 121 80+ 3000 1,5
Capheus B LED1x4750 G667 T830 R40 234 99 180 4714 39,8 118 80+ 3000 1,5
DA-TREEONION1x1900 G603 T840 R40 170 82 164 1901 13,5 141 80+ 4000 0,6
DA-TREEONION1x2500 G604 T840 R40 170 82 164 2583 18,7 138 80+ 4000 0,6
Capheus B LED1x3350 G605 T840 R40 170 82 164 3478 26,5 131 80+ 4000 0,6
DA-TREEONION1x4250 G606 T840 R40 234 99 180 4363 34,0 128 80+ 4000 1,5
DA-TREEONION1x4750 G667 T840 R40 234 99 180 4983 39,8 125 80+ 4000 1,5
Capheus B LED1x1900 G603 T930 R40 170 82 164 1525 13,3 115 90+ 3000 0,6
DA-TREEONION1x2500 G604 T930 R40 170 82 164 2090 18,2 115 90+ 3000 0,6
DA-TREEONION1x3350 G605 T930 R40 170 82 164 2839 25,8 110 90+ 3000 0,6
Capheus B LED1x4250 G606 T930 R40 234 99 180 3522 34,0 104 90+ 3000 1,5
DA-TREEONION1x4750 G667 T930 R40 234 99 180 4022 39,8 101 90+ 3000 1,5
DA-TREEONION1x1900 G603 T940 R40 170 82 164 1606 13,3 121 90+ 4000 0,6
Capheus B LED1x2500 G604 T940 R40 170 82 164 2202 18,2 121 90+ 4000 0,6
DA-TREEONION1x3350 G605 T940 R40 170 82 164 2993 25,8 116 90+ 4000 0,6
DA-TREEONION1x4250 G606 T940 R40 234 99 180 3713 34,0 109 90+ 4000 1,5
Capheus B LED1x4750 G667 T940 R40 234 99 180 4240 39,8 107 90+ 4000 1,5

DA-TREEONION1x1900 G603 T830 R40
RAL9017 170 82 164 1799 13,5 133 80+ 3000 0,6
DA-TREEONION1x2500 G604 T830 R40
RAL9017 170 82 164 2444 18,7 131 80+ 3000 0,6
Capheus B LED1x3350 G605 T830 R40
RAL9017 170 82 164 3290 26,5 124 80+ 3000 0,6
DA-TREEONION1x4250 G606 T830 R40
RAL9017 234 99 180 4127 34,0 121 80+ 3000 1,5
DA-TREEONION1x4750 G667 T830 R40
RAL9017 234 99 180 4714 39,8 118 80+ 3000 1,5
Capheus B LED1x1900 G603 T840 R40
RAL9017 170 82 164 1901 13,5 141 80+ 4000 0,6
DA-TREEONION1x2500 G604 T840 R40
RAL9017 170 82 164 2583 18,7 138 80+ 4000 0,6
DA-TREEONION1x3350 G605 T840 R40
RAL9017 170 82 164 3478 26,5 131 80+ 4000 0,6
Capheus B LED1x4250 G606 T840 R40
RAL9017 234 99 180 4363 34,0 128 80+ 4000 1,5
DA-TREEONION1x4750 G667 T840 R40
RAL9017 234 99 180 4983 39,8 125 80+ 4000 1,5
