Description

DA-TUBERROOT

direct
faceted aluminium reflector, 36 (standard) and 24 beam DA-WHITEMAPLEs
aluminium
white (RAL9016), black ( RAL9017 )
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 60000/L80B10 (T930, T940: 50000/L80B10)
I I
IP20
IK02
Operating temperature range, ta 0+35

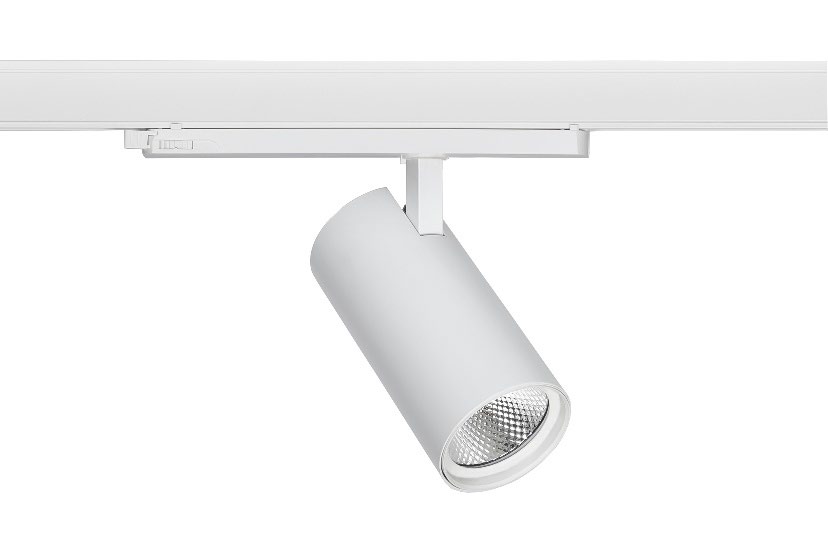

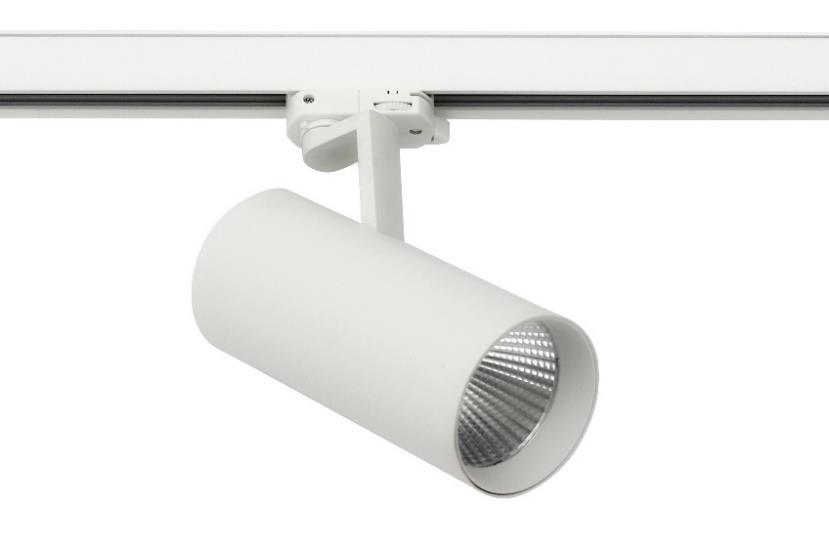

Surface luminaire is designed to be fixed into 4/6 -conductors surface/recessed tracks. Track adaptor (3 -phase + N) with phase
selector
Indoor
Retail, showroom, museum, exhibition, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
T930 Colour temperature 3000K, CRI 90+
T940 Colour temperature 4000K, CRI 90+
T825 BREAD Special spectrum for bread 2500K, CRI 80+
T820 MEAT Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE Special spectrum for meat products with
increased white colour contrast 3100K, CRI 80+
T930 VEGETABLES Special spectrum for colourful products. Fruits,
fashion 3000K, CRI 90+
T932 FASHION Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE Special spectrum for fashion with dominant white
colour 3100K, CRI 90+ T927 NATURAL Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL Colour temperature 4000K, CRI 95+ NATURAL
R24 Reflector with 24 light beam DA-WHITEMAPLE
DALI Driver with DALI interface
*note – DALI option available with length 260mm
*note – for this model DALI option is not compatible with switch -control
dimming functionality.

R24 R36

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-TUBERROOT1x1900 J670 T830 R36 290 83 145 1799 13,5 133 80+ 3000 1,3
DA-TUBERROOT1x2500 J671 T830 R36 290 83 145 2444 18,7 131 80+ 3000 1,3
DA-TUBERROOT1x3350 J672 T830 R36 290 83 145 3290 26,5 124 80+ 3000 1,3
DA-TUBERROOT1x1900 J670 T840 R36 290 83 145 1901 13,5 141 80+ 4000 1,3
DA-TUBERROOT1x2500 J671 T840 R36 290 83 145 2583 18,7 138 80+ 4000 1,3
DA-TUBERROOT1x3350 J672 T840 R36 290 83 145 3478 26,5 131 80+ 4000 1,3
DA-TUBERROOT1x1900 J670 T930 R36 290 83 145 1525 13,3 115 90+ 3000 1,3
DA-TUBERROOT1x2500 J671 T930 R36 290 83 145 2090 18,2 115 90+ 3000 1,3
DA-TUBERROOT1x3350 J672 T930 R36 290 83 145 2839 25,8 110 90+ 3000 1,3
DA-TUBERROOT1x1900 J670 T940 R36 290 83 145 1606 13,3 121 90+ 4000 1,3
DA-TUBERROOT1x2500 J671 T940 R36 290 83 145 2202 18,2 121 90+ 4000 1,3
DA-TUBERROOT1x3350 J672 T940 R36 290 83 145 2993 25,8 116 90+ 4000 1,3
