Description

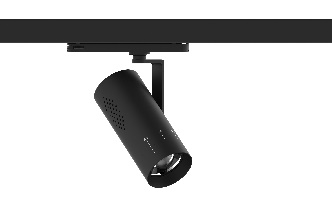

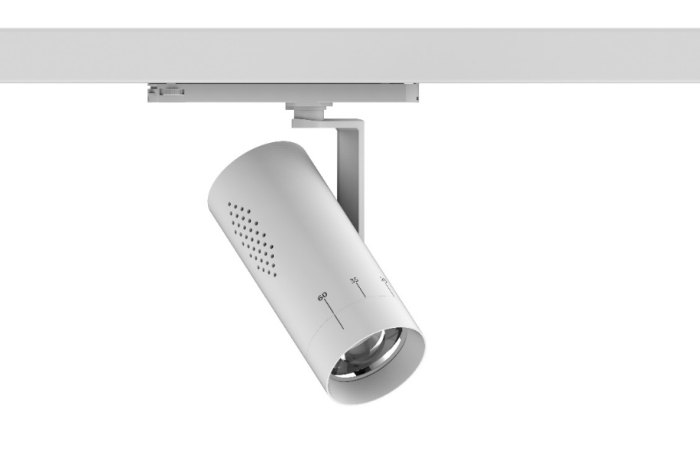

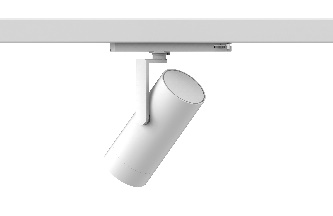

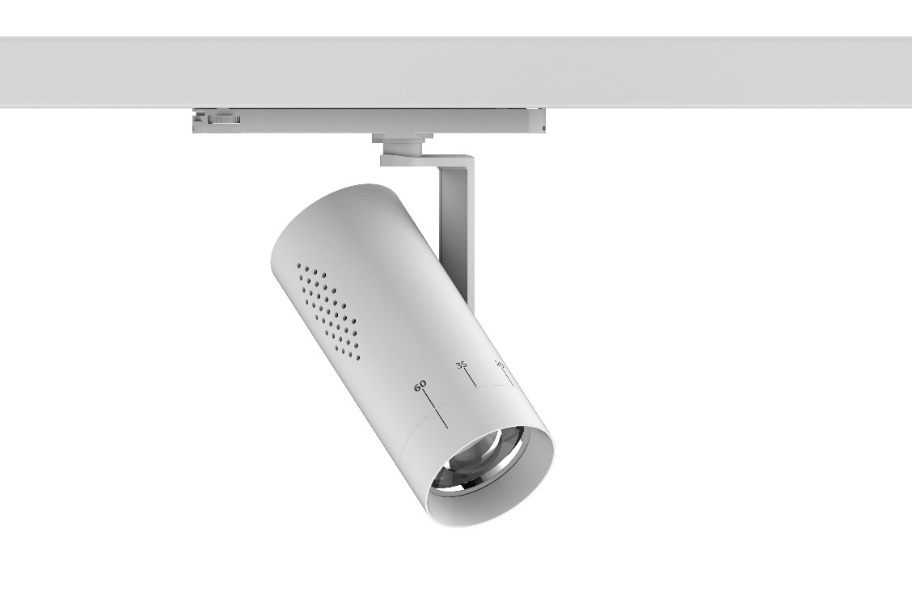

DA-WATERFERN

direct
adjustable faceted reflector, 20 -60
aluminium
white RAL9016 ; black RAL9017
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000- 60000/L80B10
3
II
IP20
IK02
Operating temperature range, ta 0 +35
In 3-phase track. Track adaptor (3 -phase + N) with phase selector
Indoor
Retail, showroom, exhibition, public place

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length
, mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-WATERFERN1x1950 J440 T830 R20 -60 190 92 160 1841 13,5 136 80+ 3000 1,1
DA-WATERFERN1x2600 J441 T830 R20-60 190 92 160 2501 18,7 134 80+ 3000 1,1
DA-WATERFERN1x3400 J442 T830 R20 -60 190 92 160 3367 26,5 127 80+ 3000 1,1
DA-WATERFERN1x4300 J443 T830 R20 -60 190 92 160 4223 34 124 80+ 3000 1,1
DA-WATERFERN1x1950 J440 T840 R20 -60 190 92 160 1946 13,5 144 80+ 4000 1,1
DA-WATERFERN1x2600 J441 T840 R20 -60 190 92 160 2644 18,7 141 80+ 4000 1,1
DA-WATERFERN1x3400 J442 T840 R20 -60 190 92 160 3559 26,5 134 80+ 4000 1,1
DA-WATERFERN1x4300 J443 T840 R20 -60 190 92 160 4464 34 131 80+ 4000 1,1
DA-WATERFERN1x1950 J440 T930 R20 -60 190 92 160 1560 13,3 117 90+ 3000 1,1
DA-WATERFERN1x2600 J441 T930 R20 -60 190 92 160 2138 18,2 117 90+ 3000 1,1
DA-WATERFERN1x3400 J442 T930 R20 -60 190 92 160 2905 25,8 113 90+ 3000 1,1
DA-WATERFERN1x4300 J443 T930 R20 -60 190 92 160 3604 34 106 90+ 3000 1,1
DA-WATERFERN1x1950 J440 T940 R20 -60 190 92 160 1644 13,3 124 90+ 4000 1,1
DA-WATERFERN1x2600 J441 T940 R20 -60 190 92 160 2254 18,2 124 90+ 4000 1,1
DA-WATERFERN1x3400 J442 T940 R20 -60 190 92 160 3062 25,8 119 90+ 4000 1,1
DA-WATERFERN1x4300 J443 T940 R20 -60 190 92 160 3799 34 112 90+ 4000 1,1

DA-WATERFERN1x1950 J440 T830 R20 -60 RAL9017 190 92 160 1841 13,5 136 80+ 3000 1,1
DA-WATERFERN1x2600 J441 T830 R20 -60 RAL9017 190 92 160 2501 18,7 134 80+ 3000 1,1
DA-WATERFERN1x3400 J442 T830 R20 -60 RAL9017 190 92 160 3367 26,5 127 80+ 3000 1,1
DA-WATERFERN1x4300 J443 T830 R20 -60 RAL9017 190 92 160 4223 34 124 80+ 3000 1,1
DA-WATERFERN1x1950 J440 T840 R20 -60 RAL9017 190 92 160 1946 13,5 144 80+ 4000 1,1
DA-WATERFERN1x2600 J441 T840 R20 -60 RAL9017 190 92 160 2644 18,7 141 80+ 4000 1,1
DA-WATERFERN1x3400 J442 T840 R20 -60 RAL9017 190 92 160 3559 26,5 134 80+ 4000 1,1
DA-WATERFERN1x4300 J443 T840 R20 -60 RAL9017 190 92 160 4464 34 131 80+ 4000 1,1
DA-WATERFERN1x1950 J440 T930 R20 -60 RAL9017 190 92 160 1560 13,3 117 90+ 3000 1,1
DA-WATERFERN1x2600 J441 T930 R20 -60 RAL9017 190 92 160 2138 18,2 117 90+ 3000 1,1
DA-WATERFERN1x3400 J442 T930 R20 -60 RAL9017 190 92 160 2905 25,8 113 90+ 3000 1,1
DA-WATERFERN1x4300 J443 T930 R20 -60 RAL9017 190 92 160 3604 34 106 90+ 3000 1,1
DA-WATERFERN1x1950 J440 T940 R20 -60 RAL9017 190 92 160 1644 13,3 124 90+ 4000 1,1
DA-WATERFERN1x2600 J441 T940 R20 -60 RAL9017 190 92 160 2254 18,2 124 90+ 4000 1,1
DA-WATERFERN1x3400 J442 T940 R20 -60 RAL9017 190 92 160 3062 25,8 119 90+ 4000 1,1
DA-WATERFERN1x4300 J443 T940 R20 -60 RAL9017 190 92 160 3799 34 112 90+ 4000 1,1
