Description

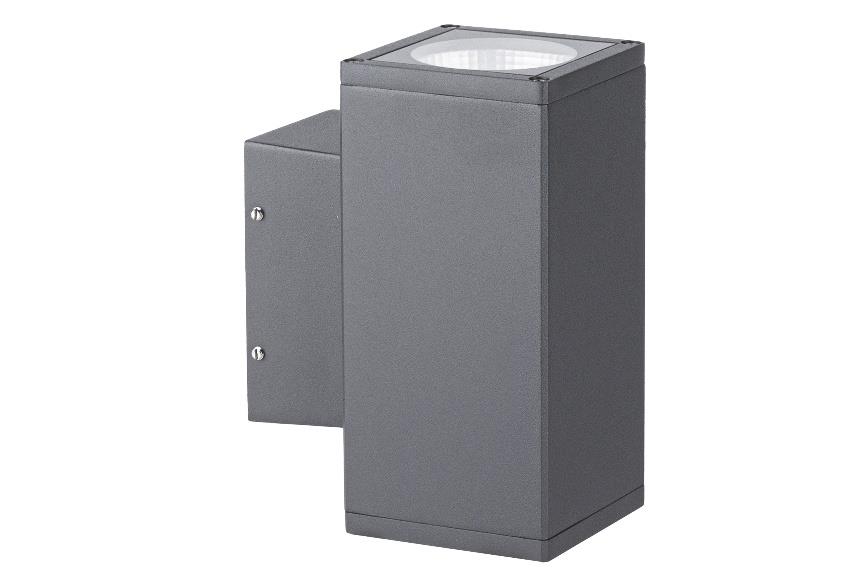

DA-WAYTHISTLE LED

direct/indirect or direct
reflectors or lenses, tempered glass diffuser
aluminium
dark grey, RAL7043
MDA- 220-240V, 50/60Hz
LED lifetime, 50000/L80B50
5
I
IP65
IK0 8
Operating temperature range, ta -30+45
On the wall. Screw terminal, 3x1x2.5mm2. On the ceiling. Cable, 0.15m, 3×1.0mm2
Outdoor

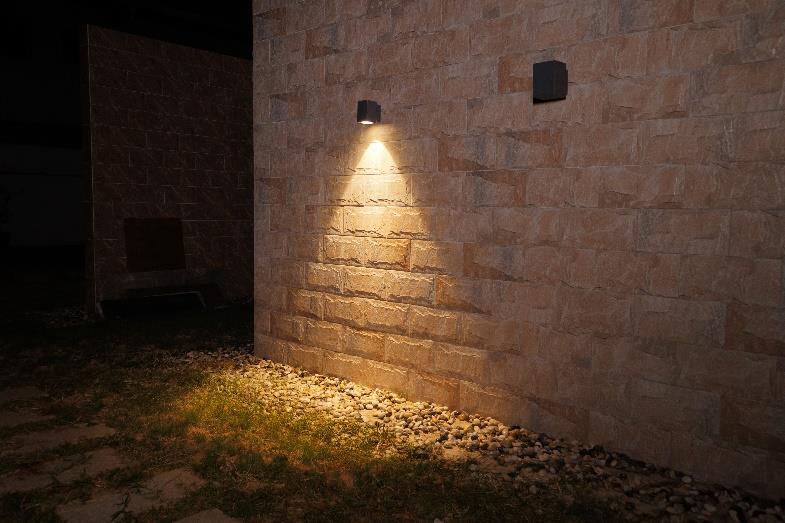

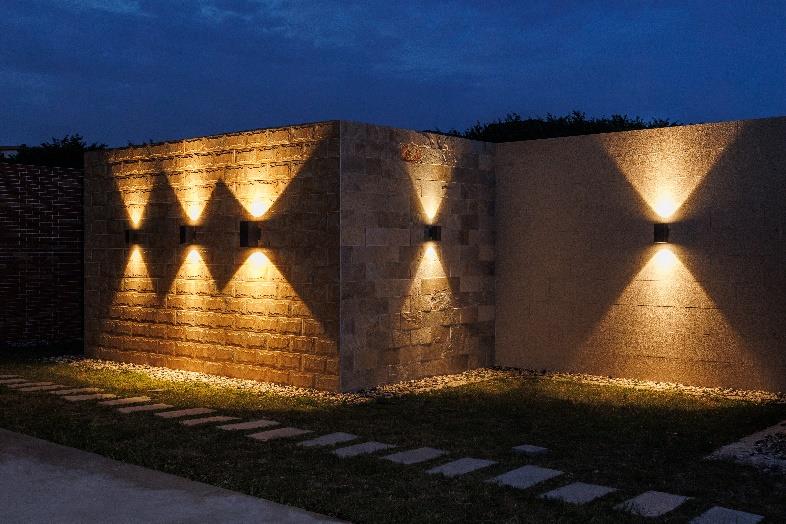

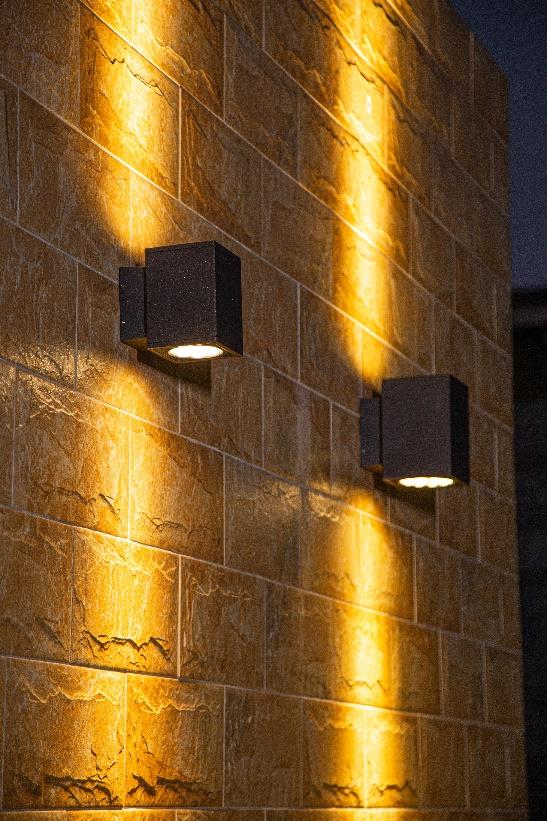

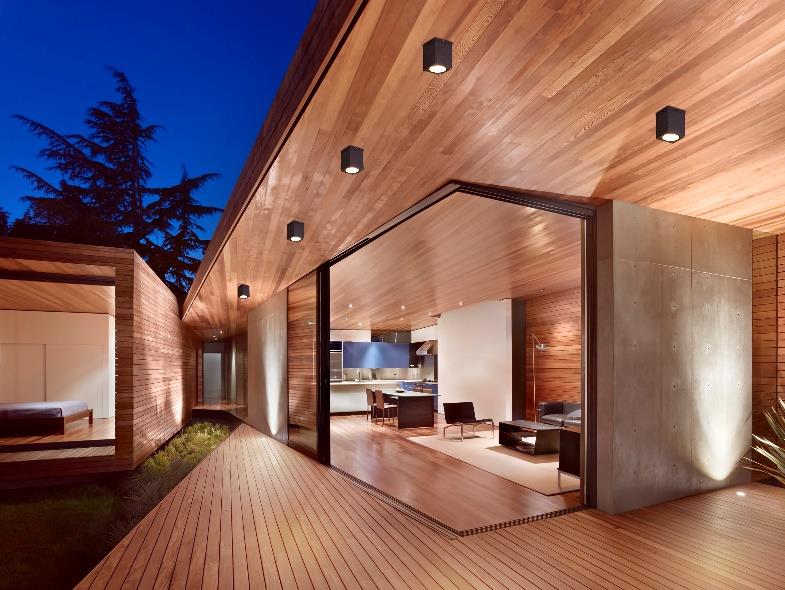

Facade illumination / Facade illumination, parking area, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80 +
L15 Optics with 15 beam DA-WHITEMAPLE R36 Reflector with 36 beam DA-WHITEMAPLE
R60 Reflector with 60 beam DA-WHITEMAPLE
*note – J800; J801; J804; J805
R90 Reflector with 90 beam DA-WHITEMAPLE
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-WAYTHISTLE2x500 J800 T830 R36 130 86 180 960 12,5 77 80+ 3000 1,3
DA-WAYTHISTLE2x1250 J801 T830 R36 170 118 220 2349 27 87 80+ 3000 2,0
DA-WAYTHISTLE2x500 J800 T840 R36 130 86 180 1000 12,5 80 80+ 4000 1,3
DA-WAYTHISTLE2x1250 J801 T840 R36 170 118 220 2447 27 91 80+ 4000 2,0

DA-WAYTHISTLE2x400 J802 T830 L15 130 86 135 738 8,5 87 80+ 3000 1,3
DA-WAYTHISTLE2x750 J803 T830 L15 170 118 165 1430 17 84 80+ 3000 1,9
DA-WAYTHISTLE2x400 J802 T840 L15 130 86 135 769 8,5 90 80+ 4000 1,3
DA-WAYTHISTLE2x750 J803 T840 L15 170 118 165 1490 17 88 80+ 4000 1,9

DA-WAYTHISTLE UP LED1x700 J804 T830 R36 130 86 180 653 8,5 77 80+ 3000 0,9
DA-WAYTHISTLE UP LED1x1100 J805 T830 R36 170 118 220 1000 12,5 80 80+ 3000 1,5
DA-WAYTHISTLE UP LED1x700 J804 T840 R36 130 86 180 680 8,5 80 80+ 4000 0,9
DA-WAYTHISTLE UP LED1x1100 J805 T840 R36 170 118 220 1064 12,5 85 80+ 4000 1,5

DA-WAYTHISTLE UP LED1x400 J806 T830 L15 130 86 135 370 4,5 82 80+ 3000 1,3
DA-WAYTHISTLE UP LED1x800 J807 T830 L15 170 118 165 768 8,5 90 80+ 3000 1,6
DA-WAYTHISTLE UP LED1x400 J806 T840 L15 130 86 135 386 4,5 86 80+ 4000 1,3
DA-WAYTHISTLE UP LED1x800 J807 T840 L15 170 118 165 800 8,5 94 80+ 4000 1,6

DA-WAYTHISTLE SR LED1x550 J808 T830 R60 86 86 115 499 6,5 77 80+ 3000 0,7
DA-WAYTHISTLE SR LED1x700 J809 T830 R60 118 118 120 653 8,5 77 80+ 3000 1,6
DA-WAYTHISTLE SR LED1x1100 J810 T830 R90 150 150 120 1045 12,5 84 80+ 3000 1,7
DA-WAYTHISTLE SR LED1x550 J808 T840 R60 86 86 115 520 6,5 80 80+ 4000 0,7
DA-WAYTHISTLE SR LED1x700 J809 T840 R60 118 118 120 680 8,5 80 80+ 4000 1,6
DA-WAYTHISTLE SR LED1x1100 J810 T840 R90 150 150 120 1089 12,5 87 80+ 4000 1,7
