Description

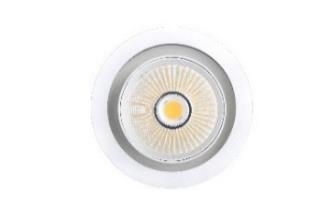

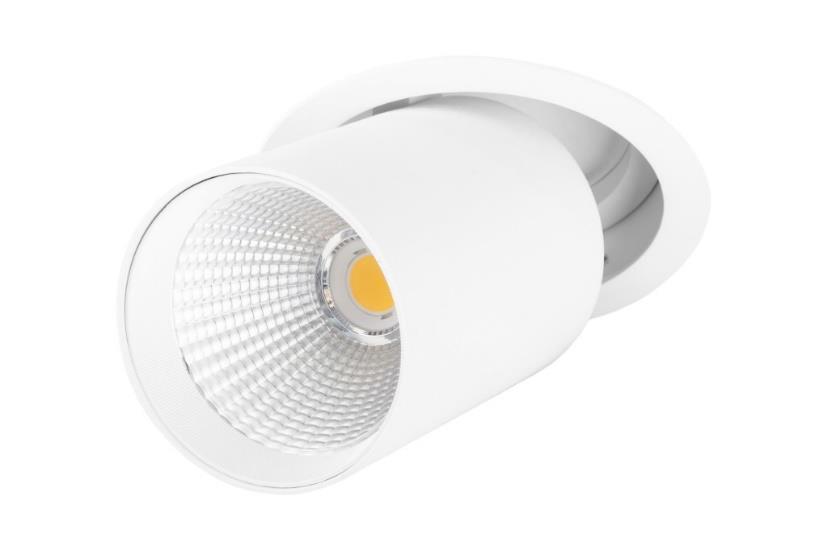

DA-WHITEROOT

direct
faceted aluminium reflector, clear, PMMA diffuser
aluminium
white (RAL 9016) , black (RAL 9017)
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 60000/L80B10 (T930, T940: 50000/L80B10)
3
I I
IP20
IK0 2
Operating temperature range, ta 0+35
In ceilings with cut -out openings (mounting brackets included). Push -in terminal, 2x1x1.5mm2
Indoor
Retail, showroom, museum, exhibition, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-WHITEROOT1x1900 G668 T830 R40
RAL9016 125 125 170 1820 13,5 135 80+ 3000 0,85
DA-WHITEROOT1x2550 G669 T830 R40
RAL9016 125 125 170 2473 19,8 125 80+ 3000 0,85
DA-WHITEROOT1x3350 G670 T830 R40
RAL9016 125 125 170 3329 27,1 123 80+ 3000 0,85
DA-WHITEROOT1x1900 G668 T840 R40
RAL9016 125 125 170 1924 13,5 143 80+ 4000 0,85
DA-WHITEROOT1x2550 G669 T840 R40
RAL9016 125 125 170 2613 19,8 132 80+ 4000 0,85
DA-WHITEROOT1x3350 G670 T840 R40
RAL9016 125 125 170 3518 27,1 130 80+ 4000 0,85
DA-WHITEROOT1x1900 G668 T930 R40
RAL9016 125 125 170 1543 13,3 116 90+ 3000 0,85
DA-WHITEROOT1x2550 G669 T930 R40
RAL9016 125 125 170 2114 19,3 110 90+ 3000 0,85
DA-WHITEROOT1x3350 G670 T930 R40
RAL9016 125 125 170 2872 26,4 109 90+ 3000 0,85
DA-WHITEROOT1x1900 G668 T940 R40
RAL9016 125 125 170 1625 13,3 122 90+ 4000 0,85
DA-WHITEROOT1x2550 G669 T940 R40
RAL9016 125 125 170 2228 19,3 115 90+ 4000 0,85
DA-WHITEROOT1x3350 G670 T940 R40
RAL9016 125 125 170 3028 26,4 115 90+ 4000 0,85

DA-WHITEROOT1x1900 G668 T830 R40
RAL9017 125 125 170 1820 13,5 135 80+ 3000 0,85
DA-WHITEROOT1x2550 G669 T830 R40
RAL9017 125 125 170 2473 19,8 125 80+ 3000 0,85
DA-WHITEROOT1x3350 G670 T830 R40
RAL9017 125 125 170 3329 27,1 123 80+ 3000 0,85
DA-WHITEROOT1x1900 G668 T840 R40
RAL9017 125 125 170 1924 13,5 143 80+ 4000 0,85
DA-WHITEROOT1x2550 G669 T840 R40
RAL9017 125 125 170 2613 19,8 132 80+ 4000 0,85
DA-WHITEROOT1x3350 G670 T840 R40
RAL9017 125 125 170 3518 27,1 130 80+ 4000 0,85
DA-WHITEROOT1x1900 G668 T930 R40
RAL9017 125 125 170 1543 13,3 116 90+ 3000 0,85
DA-WHITEROOT1x2550 G669 T930 R40
RAL9017 125 125 170 2114 19,3 110 90+ 3000 0,85
