Description

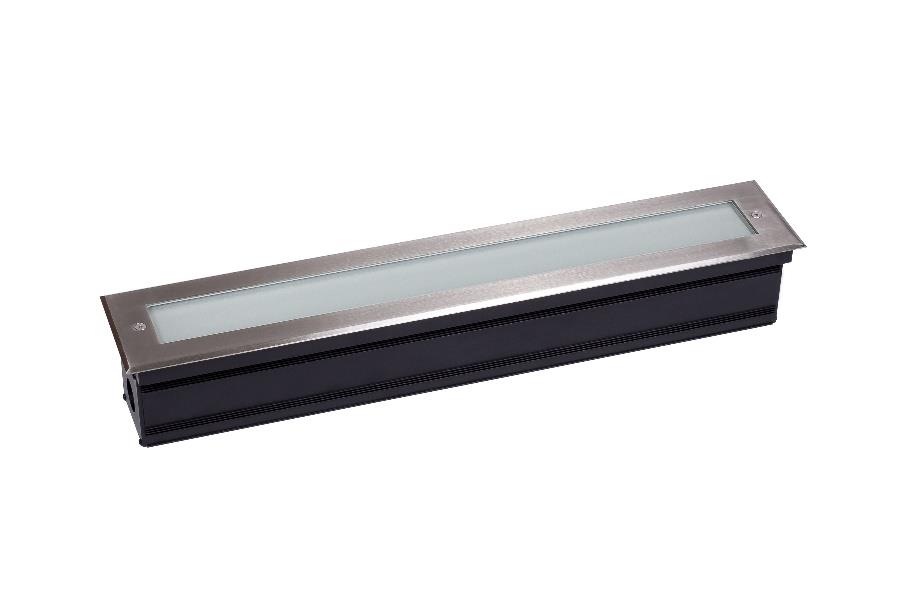

DA-WILDGARLIC LED

direct
frosted tempered glass diffuser, impact resistant
stDA-CANOEBIRCHless steel
stDA-CANOEBIRCHless -steel, brushed
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP67
IK10
Operating temperature range, ta -25+40
In the gDA-INDIANHEMP (requires a cut – 410x105x110 /610x105x110 /1025x105x110 mm). Cable, 1.0m, 3×1.5 mm2
Outdoor
Facade illumination, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
* Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.
T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+ DALI Driver with DALI interface and switch -control dimming

STANDARD
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*, W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-WILDGARLIC1x450 J692 T830 430 115 105 412 5,3 78 80+ 3000 3,1
DA-WILDGARLIC1x550 J693 T830 430 115 105 506 6,7 76 80+ 3000 3,1
DA-WILDGARLIC1x800 J694 T830 630 115 105 720 9,3 77 80+ 3000 4,6
DA-WILDGARLIC1x950 J695 T830 630 115 105 885 11,1 80 80+ 3000 4,6
DA-WILDGARLIC1x1450 J696 T830 1050 115 105 1338 16,5 81 80+ 3000 7,2
DA-WILDGARLIC1x1750 J697 T830 1050 115 105 1644 19,9 83 80+ 3000 7,2
DA-WILDGARLIC1x450 J692 T840 430 115 105 431 5,3 81 80+ 4000 3,1
DA-WILDGARLIC1x550 J693 T840 430 115 105 529 6,7 79 80+ 4000 3,1
DA-WILDGARLIC1x800 J694 T840 630 115 105 754 9,3 81 80+ 4000 4,6
DA-WILDGARLIC1x950 J695 T840 630 115 105 926 11,1 83 80+ 4000 4,6
DA-WILDGARLIC1x1450 J696 T840 1050 115 105 1401 16,5 85 80+ 4000 7,2
DA-WILDGARLIC1x1750 J697 T840 1050 115 105 1721 19,9 86 80+ 4000 7,2
