Description

DA-WILLOW

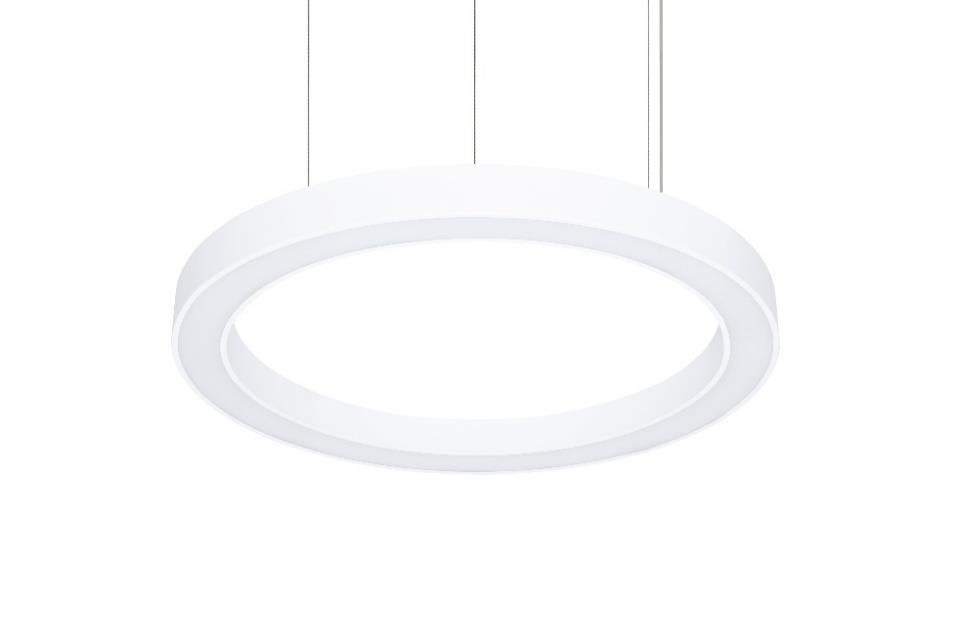

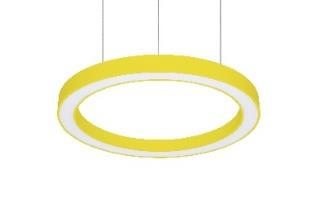

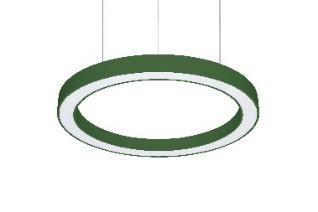

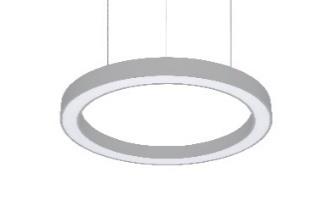

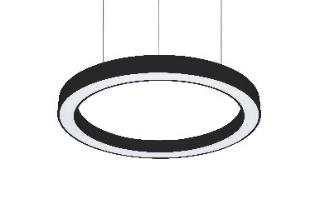

Luminaires A DA-CANEASHative and modern ring -shaped LED luminaire in three sizes to fit wide range of applications
direct
opal PMMA diffuser / matt micro -prismatic polycarb onate diffuser, UV stabilized
steel
white RAL 9003S
MDA- 220 -240V, 0/50/60Hz
LED lifetime, 50000/L80B10
3
I
IP40
IK0 2
Operating temperature range, ta 0+35
Surface luminaire is designed to be fixed to ceiling of any type or suspended. Multiple wire suspension, cable cap and DA-CANEASHa tive
cable accessories are available on request. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, retail, public place

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-WILLOW1x2050 J134 T830 OP
LT80 600 600 80 1924 16,9 114 80+ 3000 4,6
DA-WILLOW1x2750 J135 T830 OP
LT80 600 600 80 2621 23,6 111 80+ 3000 4,6
DA-WILLOW1x3800 J136 T830 OP
LT80 600 600 80 3603 34,6 104 80+ 3000 4,6
DA-WILLOW1x3300 J137 T830 OP
LT80 900 900 80 3148 26,4 119 80+ 3000 6,8
DA-WILLOW1x4500 J138 T830 OP
LT80 900 900 80 4289 37,7 114 80+ 3000 6,8
DA-WILLOW1x6200 J139 T830 OP
LT80 900 900 80 5896 54,9 107 80+ 3000 6,8
DA-WILLOW1x4400 J140 T830 OP
LT80 1200 1200 80 4197 34,8 121 80+ 3000 8,9
DA-WILLOW1x6000 J141 T830 OP
LT80 1200 1200 80 5719 49,8 115 80+ 3000 8,9
DA-WILLOW1x8250 J142 T830 OP
LT80 1200 1200 80 7861 72,4 109 80+ 3000 8,9
DA-WILLOW1x2050 J134 T840 OP
LT80 600 600 80 2014 16,9 119 80+ 4000 4,6
DA-WILLOW1x2750 J135 T840 OP
LT80 600 600 80 2744 23,6 116 80+ 4000 4,6
DA-WILLOW1x3800 J136 T840 OP
LT80 600 600 80 3772 34,6 109 80+ 4000 4,6
DA-WILLOW1x3300 J137 T840 OP
LT80 900 900 80 3295 26,4 125 80+ 4000 6,8
DA-WILLOW1x4500 J138 T840 OP
LT80 900 900 80 4491 37,7 119 80+ 4000 6,8
DA-WILLOW1x6200 J139 T840 OP
LT80 900 900 80 6173 54,9 112 80+ 4000 6,8
DA-WILLOW1x4400 J140 T840 OP
LT80 1200 1200 80 4394 34,8 126 80+ 4000 8,9
DA-WILLOW1x6000 J141 T840 OP
LT80 1200 1200 80 5987 49,8 120 80+ 4000 8,9
DA-WILLOW1x8250 J142 T840 OP
LT80 1200 1200 80 8231 72,4 114 80+ 4000 8,9
