DA-ZEDOARY

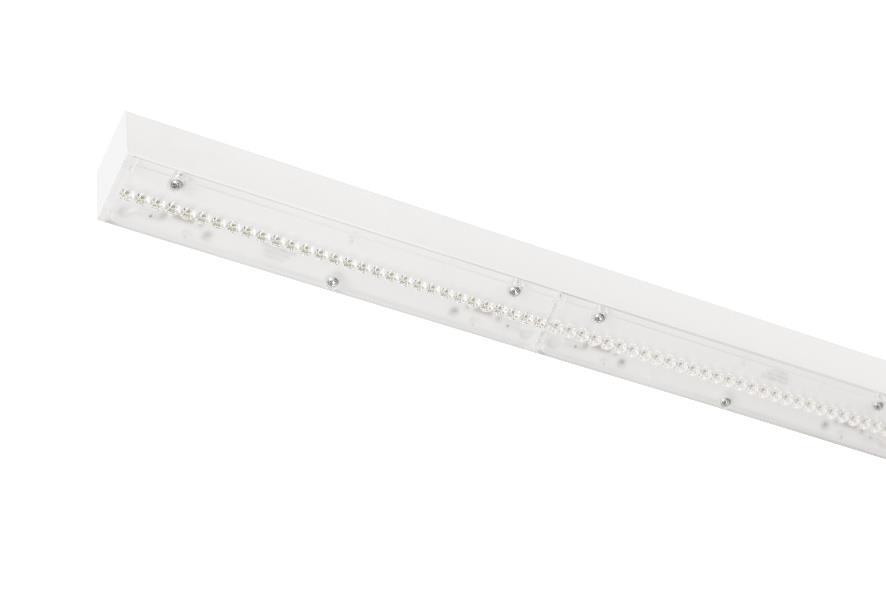

CORNER180 Continuous Line and Batten Luminaires Suspended continuous line LED luminaire direct lenses

Housing:

steel

Colour:

white RAL 9003

Mains voltage:

MDA – 220 -240V, 0/50 -60Hz

LED lifetime:

100000/L80B10

SDCM:

3

Protection class IEC:

I

Ingress protection code:

IP20

Mechanical impact resistance:

IK05

Operating temperature range:

ta 0+35/+40

Suspended T -join (suspension brackets and I -join kit included with each luminaire). Select CTR -BRANCH or BRANCH versions according to system layout. Through wired, 5×1.5 mm2, three 5 -DA-COMMONTANSY connectors, plug and sockets

Environment:

Indoor

Application:

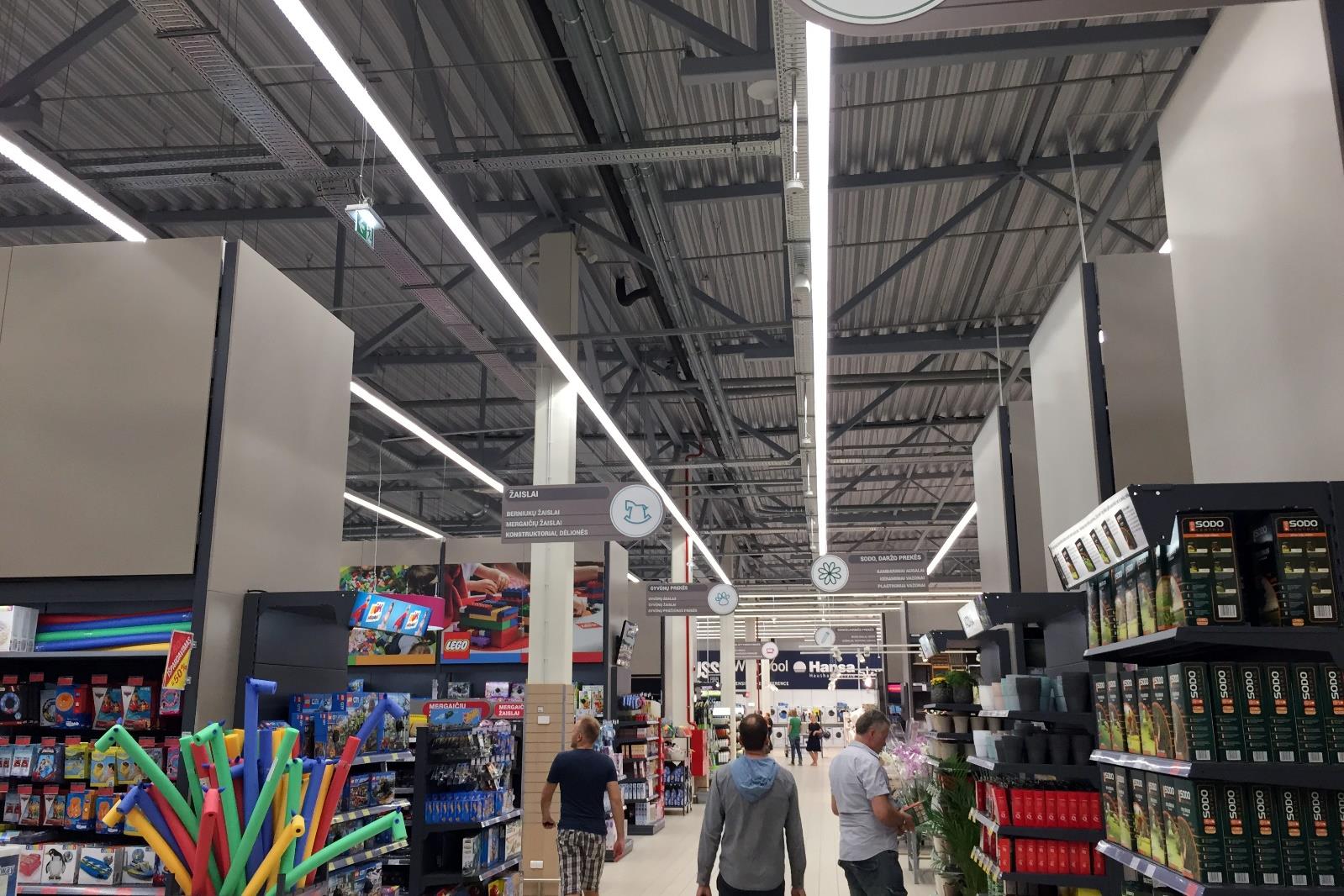

Retail, hall, public place
