Description

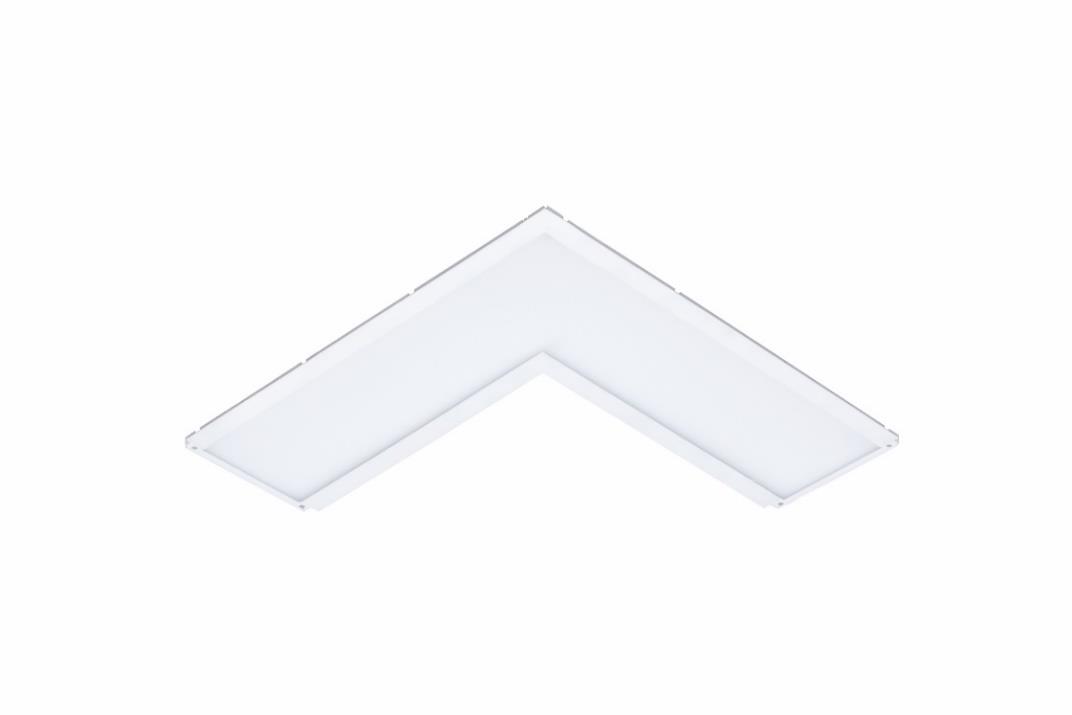

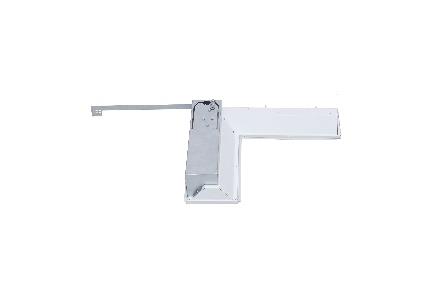

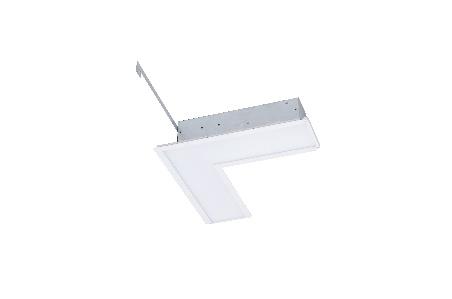

: Recessed mounted linear LED luminaire
direct
matt micro -prismatic PMMA diffuser , translucent micro -prismatic diffuser
steel
white, RAL9003
MDA- 220 -240V, 0/50 -60Hz
LED lifetime, 100000/L80B10
3
I
IP40 /20
IK02
Operating temperature range, ta 0+35
In modular suspended ceilings. Push -in terminal, 3x2x2.5mm2
Indoor
Office, education, corridor, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
OP TP(a) TP(a) rated thermoplastic opal diffuser
DALI Driver with DALI interface and switch -control dimming
EAIRB -S Slave luminaire with integrated EAIR type driver for
lighting control
*note – ask for special model with option EAIRB -S
BLT Integrated wireless control unit and driver for lighting
control via mobile device (via Bluetooth)
TW Integrated light source and driver for tunable white
control 2700 -6500 K
BLT TW Integrated light source, wireless control unit and driver
for Tuneable white control 2700 -6500 K via mobile
device (via Bluetooth)
*note – ask for special model with option TW COR Driver with Corridor function (never off)
COR1min Driver with Corridor function 30min (switch off after 1
min.)
COR30min Driver with Corridor function 30min (switch off after 30
min.)
WIE3 -0.5m 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector with 0.5m cable
WIE5D -0.5m 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or
compatible connector with 0.5m cable
Schuko -1.5m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 1.5m cable
Schuko -3.0m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 3.0m cable

LINE CORNER90 LED G
range

Recessed Luminaires
Product Length,
mm Width
, mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy,
lm/W CRI
(Ra) CCT,
K Weight,
kg
DA-FENNEL1x2000 G936 T830 DPRZ LT80 LO1
CORNER90 358 358 70 1891 13,8 137 80+ 3000 1,2
DA-FENNEL1x2800 G937 T830 DPRZ LT80 LO2
CORNER90 358 358 70 2620 18,8 139 80+ 3000 1,2
DA-FENNEL1x2000 G936 T840 DPRZ LT80 LO1
CORNER90 358 358 70 1993 13,8 144 80+ 4000 1,2
DA-FENNEL1x2800 G937 T840 DPRZ LT80 LO2
CORNER90 358 358 70 2761 18,8 147 80+ 4000 1,2

DA-FENNEL1x2200 G936 T830 MPRZ LT92 LO1
CORNER90 358 358 70 2048 13,8 148 80+ 3000 1,2
DA-FENNEL1x3000 G937 T830 MPRZ LT92 LO2
CORNER90 358 358 70 2838 18,8 151 80+ 3000 1,2
DA-FENNEL1x2200 G936 T840 MPRZ LT92 LO1
CORNER90 358 358 70 2159 13,8 156 80+ 4000 1,2
DA-FENNEL1x3000 G937 T840 MPRZ LT92 LO2
CORNER90 358 358 70 2992 18,8 159 80+ 4000 1,2
