Description

GEMINI LED

direct
clear polycarbonate diffuser, impact resistant
polycarbonate, with test button
white
24 hours
NiCd
16 meters
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L70B50
5
I
IP65
IK08
Operating temperature range, ta 0+40
On the wall. Push -in terminal, 4x2x2.5mm2
Indoor

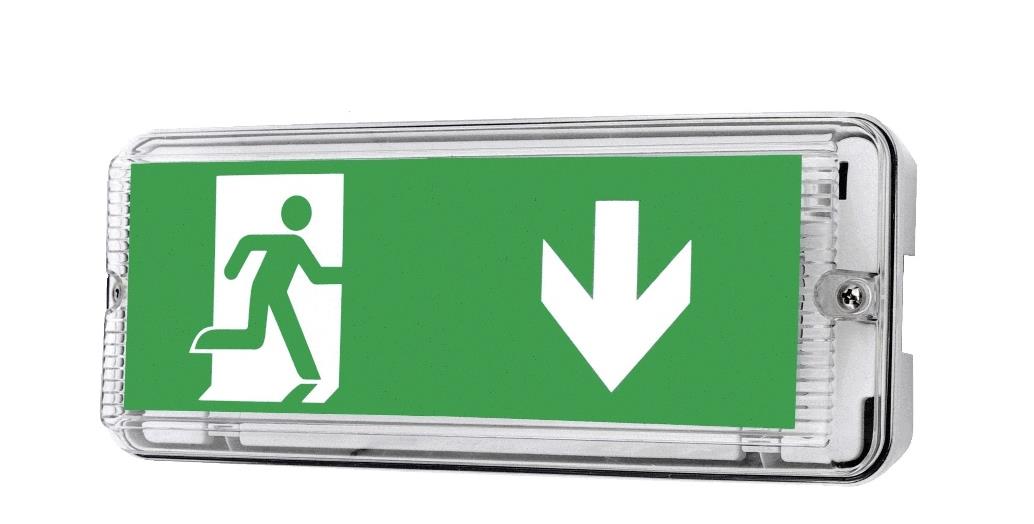

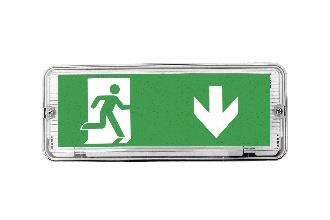

Emergency exit sign, escape route lighting
*-M-mDA-CANOEBIRCHtDA-CANOEBIRCHed (with an option of connecting as non -mDA-CANOEBIRCHtDA-CANOEBIRCHed), NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, system power and output indicates data in emergency mode, tolerance
10%, values apply to an ambient temperature of 25 C

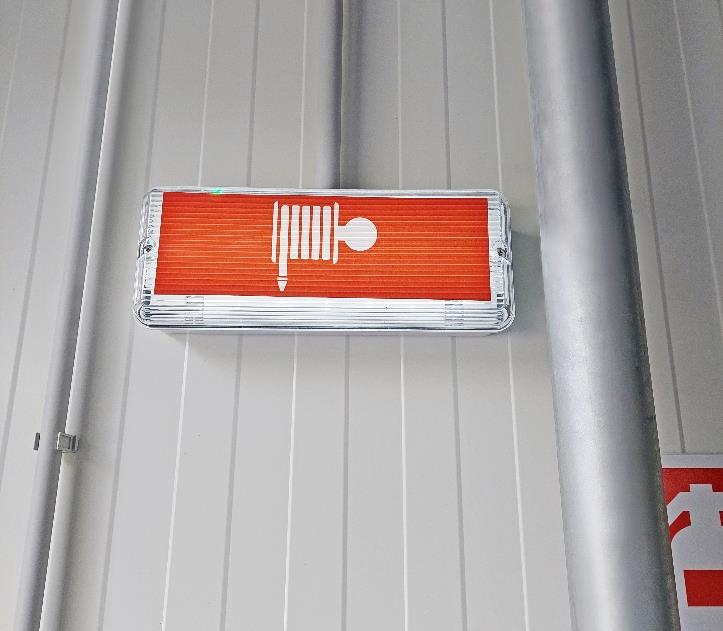

*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors. Pictogram “Fire hose reel” Gemini LED
Pictogram “Fire hose reel” for Gemini LED

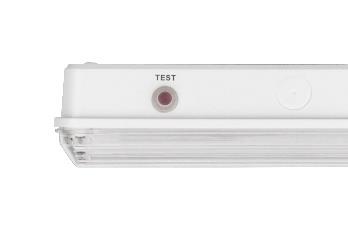

TEST Manual test button

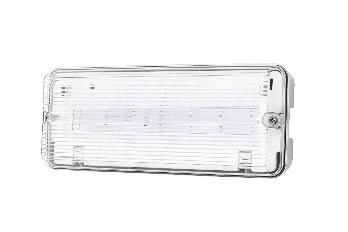

CLR Clear polycarbonate diffuser Supplied with universal sticker.
Product Length,
mm Width,
mm Height,
mm Illuminatio
n mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight,
kg
DA-SOFTMAPLEPLED D549 CLR TEST 276 110 60 M/NM 3 3 70+ 6000 0,5
