Description

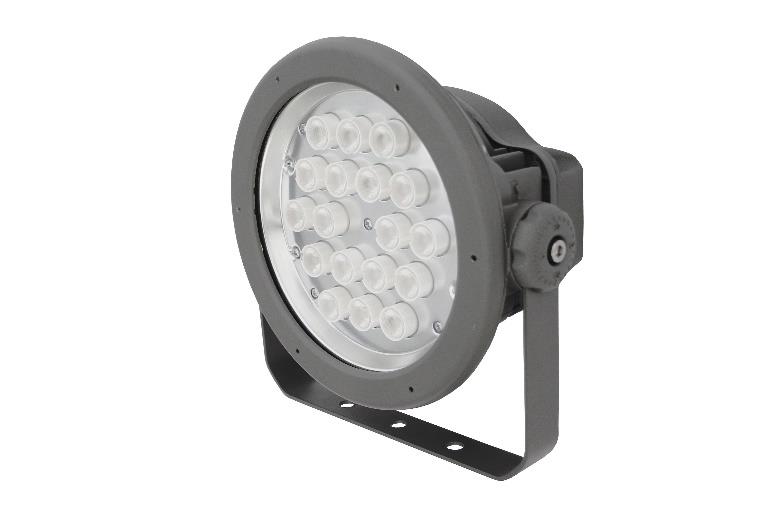

GRUS LED

direct
lenses, tempered glass diffuser, impact resistant
aluminium
dark grey, RAL7043
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L70B50
5
I
IP65
IK08
Operating temperature range, ta -25+40
On the horizontal or vertical surface. Push -in terminal, 3x2x2. 5mm2 (for C313 , 314 Cable, 0.3m, 3×0.75mm2)
Outdoor

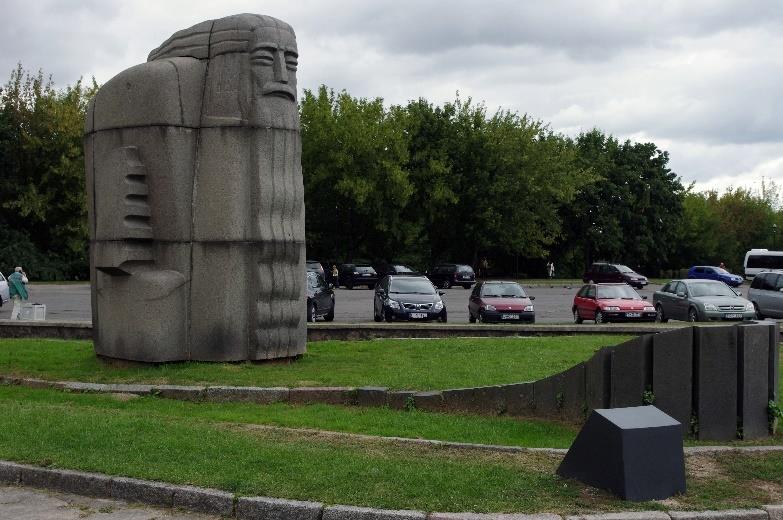

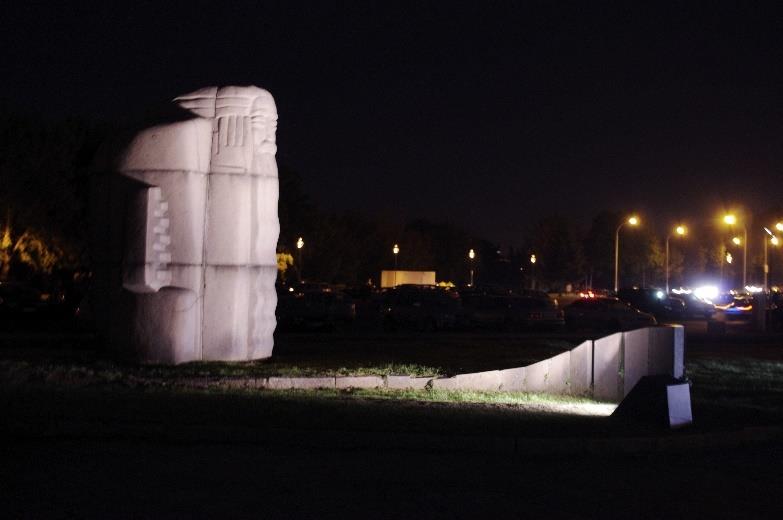

Facade illumination, public space

Accessories for better glare control are available on request. Please use short names when placing order (Grus LED Louver
D230 for DA-SCARLETOAK310 for DA-SESSILEOAK)

* 10%. Values apply to an ambient temperature of 25C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-SAUCEALONE1x1100 C313 T730 L30 120 120 90 994 8,2 121 70+ 3000 0,9
DA-SAUCEALONE1x1500 C314 T730 L30 120 120 90 1391 10,7 130 70+ 3000 0,9
DA-SAUCEALONE1x1100 C313 T740 L30 120 120 90 1061 8,2 129 70+ 4000 0,9
DA-SAUCEALONE1x1500 C314 T740 L30 120 120 90 1484 10,7 139 70+ 4000 0,9

DA-SCARLETOAK1x4950 C399 T730 L30 230 230 118 4208 30,1 140 70+ 3000 3,7
DA-SCARLETOAK1x7200 C400 T730 L30 230 230 118 6159 46,6 132 70+ 3000 3,7
DA-SCARLETOAK1x8100 C401 T730 L30 230 230 118 6913 53,7 129 70+ 3000 3,7
DA-SCARLETOAK1x4950 C399 T740 L30 230 230 118 4914 30,1 163 70+ 4000 3,7
DA-SCARLETOAK1x7200 C400 T740 L30 230 230 118 7193 46,6 154 70+ 4000 3,7
DA-SCARLETOAK1x8100 C401 T740 L30 230 230 118 8072 53,7 150 70+ 4000 3,7

DA-SESSILEOAK1x12500 C413 T740 L30 310 310 137 12459 78,9 158 70+ 4000 6,5
DA-SESSILEOAK1x16150 C414 T740 L30 310 310 137 16145 107,3 150 70+ 4000 6,5
DA-SESSILEOAK1x18600 C415 T740 L30 310 310 137 18577 127,2 146 70+ 4000 6,5
