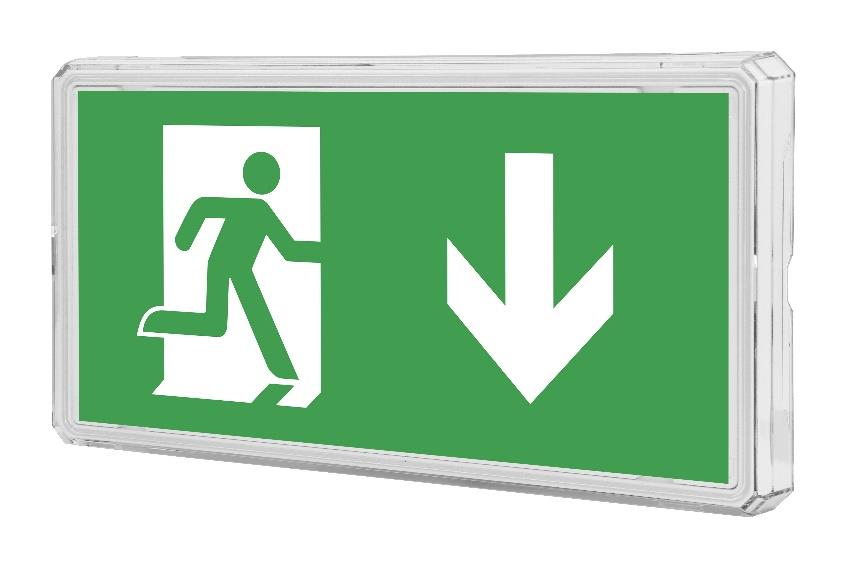

HELM LED

Description

HELM LED

direct
clear polycarbonate diffuser, impact resistant
polycarbonate
white
24 hours (12 AUT)
NiCd (LiFePO4 AUT), deep DA-PETTYMORELharge protection
25 meters
MDA- 220 -240V, 50 -60Hz
LED lifetime, 70000/L80B10
3
II
IP65
IK08
Operating temperature range, ta 0+40 (CEBLED , ta -25…+50)
On the wall or ceiling, in ceilings with cut -out openings (mounting frame to be ordered separately). Push -in terminal, 3x2x2.5mm2
Indoor
Emergency exit sign, escape route lighting

Supplied with universal sticker kit.

*-M-mDA-CANOEBIRCHtDA-CANOEBIRCHed (with an option of connecting as non -mDA-CANOEBIRCHtDA-CANOEBIRCHed), NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, CEB mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS NM – non-
mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS mDA-CANOEBIRCHtDA-CANOEBIRCHed, CLV mDA-CANOEBIRCHtDA-CANOEBIRCHed, system power and output indicates data in emergency mode, 10%,
values apply to an ambient temperature of 25 C
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.
Product Length,
mm Width,
mm Height,
mm Illumination
mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight, kg
DA-CORYDALISHLED C356 276 44 143 NM 1 1 80+ 6000 0,5
DA-CROWSNESTHLED C357 276 44 143 NM 3 1 80+ 6000 0,6
DA-CORYDALISPLED C358 276 44 143 M/NM 1 1 80+ 6000 0,5
DA-CROWSNESTPLED C359 276 44 143 M/NM 3 1 80+ 6000 0,6
DA-CORYDALISPLED C358 AUT 276 44 143 M/NM 1 1 80+ 6000 0,5
DA-CROWSNESTPLED C359 AUT 276 44 143 M/NM 3 1 80+ 6000 0,6
DA-CROWSTOESBLED C362 276 44 143 CEB x 1 80+ 6000 0,5
DA-CORYDALISPLED C358 EMS 276 44 143 EMS M/NM 1 1 80+ 6000 0,5
DA-CROWSNESTPLED C359 EMS 276 44 143 EMS M/NM 3 1 80+ 6000 0,6
DA-CORYDALISPLED C358 DALI 276 44 143 DALI M/NM 1 1 80+ 6000 0,5
DA-CROWSNESTPLED C359 DALI 276 44 143 DALI M/NM 3 1 80+ 6000 0,6
Helm CLV U41 276 44 143 CLV x 1 80+ 6000 0,5

DA-CORYDALISPLED C360 276 44 143 M/NM 1 3 80+ 6000 0,6
DA-CROWSNESTPLED C361 276 44 143 M/NM 3 3 80+ 6000 0,7
DA-CORYDALISPLED C360 AUT 276 44 143 M/NM 1 3 80+ 6000 0,5
DA-CROWSNESTPLED C361 AUT 276 44 143 M/NM 3 3 80+ 6000 0,6
DA-CROWSTOESBLED C363 276 44 143 CEB x 3 80+ 6000 0,6
DA-CORYDALISPLED C360 EMS 276 44 143 EMS M/NM 1 3 80+ 6000 0,5
DA-CROWSNESTPLED C361 EMS 276 44 143 EMS M/NM 3 3 80+ 6000 0,6
DA-CORYDALISPLED C360 DALI 276 44 143 DALI M/NM 1 3 80+ 6000 0,5
DA-CROWSNESTPLED C361 DALI 276 44 143 DALI M/NM 3 3 80+ 6000 0,6
Helm CLV U42 276 44 143 CLV x 3 80+ 6000 0,6
