HERMETIC C LED

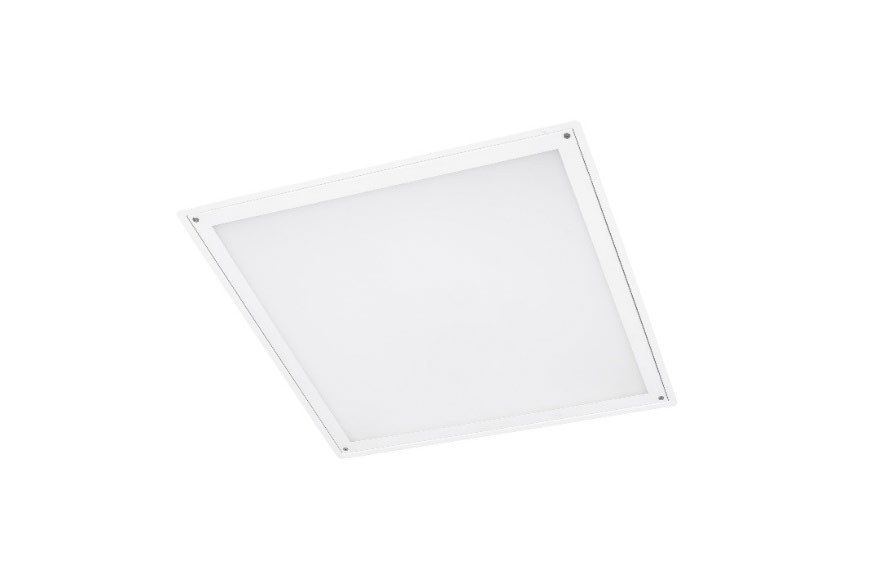

Luminaires Recessed mounted cleanroom LED luminaire, mDA-CANOEBIRCHtDA-CANOEBIRCHed from above the ceiling
direct
opal acrylic diffuser, high chemical resistance
steel
white (RAL9003)
MDA- 220-240V, 0/50/60Hz
LED lifetime, 100000/L80B10
3
I
IP65
IK05
Operating temperature range, ta -10…+35
In ceilings with cut -out openings up to 60mm thick, with top mounting (mounting brackets included). Push -in terminal, 3x2x2.5mm2
Indoor
Clean -room, healthcare, laboratory, industry

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
T930 Colour temperature 3000K, CRI 90+
T940 Colour temperature 4000K, CRI 90+
OP TP(a) TP(a) rated thermoplastic opal diffuser
*note – polycarbonate diffuser is used with option TP(a). Check chemical
compatibility
DALI Driver with DALI interface and switch -control dimming
EAIRB -S Slave luminaire with integrated EAIR type driver for
lighting control
*note – max system size 1x EAIRB -M + 3x EAIRB -S.
*note – max wire lengt h from EAIRB -M to last EAIRB -S – 11m.
BLT Integrated wireless control unit and driver for lighting
control via mobile device (via Bluetooth)
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
CBF3 -2.0m clear Outgoing flexible cable 3×0.75mm 2.0m
CBF3 -3.0m clear Cable 3×0.75mm for suspended luminaire up to 3.0
meters, transparent

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
Hermetic C LED3x950 J532 T830 OP LT80 595 595 100 2592 19,8 131 80+ 3000 4,4
Hermetic C LED3x1150 J533 T830 OP LT80 595 595 100 3238 25,8 126 80+ 3000 4,4
Hermetic C LED3x1350 J534 T830 OP LT80 595 595 100 3852 28,9 133 80+ 3000 4,4
Hermetic C LED4x950 J535 T830 OP LT80 595 595 100 3455 26,1 132 80+ 3000 4,4
Hermetic C LED4x1150 J536 T830 OP LT80 595 595 100 4318 33,7 128 80+ 3000 4,4
Hermetic C LED4x1350 J537 T830 OP LT80 595 595 100 5136 38,1 135 80+ 3000 4,4
Hermetic C LED2x2150 J538 T830 OP LT80 1195 295 100 4031 30,0 134 80+ 3000 4,5
Hermetic C LED2x2650 J539 T830 OP LT80 1195 295 100 5037 39,8 127 80+ 3000 4,5
Hermetic C LED2x3150 J540 T830 OP LT80 1195 295 100 5993 43,5 138 80+ 3000 4,5
Hermetic C LED3x950 J532 T840 OP LT80 595 595 100 2713 19,8 137 80+ 4000 4,4
Hermetic C LED3x1150 J533 T840 OP LT80 595 595 100 3390 25,8 131 80+ 4000 4,4
Hermetic C LED3x1350 J534 T840 OP LT80 595 595 100 4033 28,9 140 80+ 4000 4,4
Hermetic C LED4x950 J535 T840 OP LT80 595 595 100 3617 26,1 139 80+ 4000 4,4
Hermetic C LED4x1150 J536 T840 OP LT80 595 595 100 4521 33,7 134 80+ 4000 4,4
Hermetic C LED4x1350 J537 T840 OP LT80 595 595 100 5377 38,1 141 80+ 4000 4,4
Hermetic C LED2x2150 J538 T840 OP LT80 1195 295 100 4220 30,0 141 80+ 4000 4,5
Hermetic C LED2x2650 J539 T840 OP LT80 1195 295 100 5274 39,8 133 80+ 4000 4,5
Hermetic C LED2x3150 J540 T840 OP LT80 1195 295 100 6274 43,5 144 80+ 4000 4,5

Hermetic C LED1x4900 J541 T830 OP LT80 595 595 100 4648 32,3 144 80+ 3000 4,4
Hermetic C LED1x5750 J542 T830 OP LT80 595 595 100 5480 39,1 140 80+ 3000 4,4
Hermetic C LED1x6650 J543 T830 OP LT80 595 595 100 6334 45,6 139 80+ 3000 4,4
Hermetic C LED1x5000 J544 T830 OP LT80 1195 295 100 4755 33,0 144 80+ 3000 4,5
Hermetic C LED1x5900 J545 T830 OP LT80 1195 295 100 5605 40,0 140 80+ 3000 4,5
Hermetic C LED1x6800 J546 T830 OP LT80 1195 295 100 6478 46,7 139 80+ 3000 4,5
Hermetic C LED1x4900 J541 T840 OP LT80 595 595 100 4867 32,3 151 80+ 4000 4,4
Hermetic C LED1x5750 J542 T840 OP LT80 595 595 100 5738 39,1 147 80+ 4000 4,4
Hermetic C LED1x6650 J543 T840 OP LT80 595 595 100 6632 45,6 145 80+ 4000 4,4
Hermetic C LED1x5000 J544 T840 OP LT80 1195 295 100 4977 33,0 151 80+ 4000 4,5
Hermetic C LED1x5900 J545 T840 OP LT80 1195 295 100 5868 40,0 147 80+ 4000 4,5
Hermetic C LED1x6800 J546 T840 OP LT80 1195 295 100 6783 46,7 145 80+ 4000 4,5
