Description

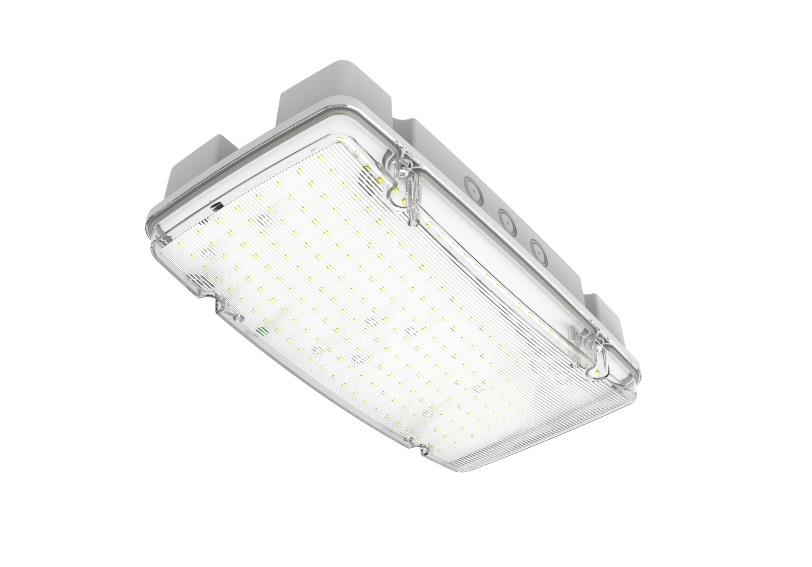

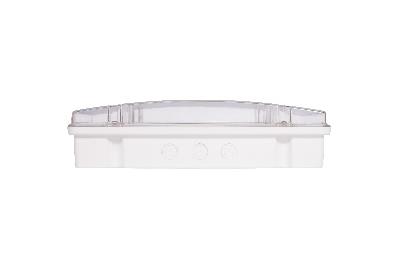

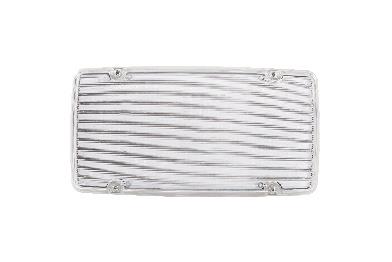

KNIK LED

linear prismatic transparent polycarbonate diffuser, water and impact resistant
polycarbonate, white finish, with LED status indicator
24 hours
LiFePO 4
MDA- 220-240V, 50 -60Hz
LED lifetime, 50000/L70B50
5
II
IP66
IK 08
Operating temperature range, ta 0…+45
On the ceiling or wall. Push -in terminal, 3x2x2.5mm2
Indoor
Emergency lighting

*-M-mDA-CANOEBIRCHtDA-CANOEBIRCHed (with an option of connecting as non -mDA-CANOEBIRCHtDA-CANOEBIRCHed), NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, system power and output indicates data in emergency mode, tolerance
10%, values apply to an ambient temperature of 25 C
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

STANDARD

Product Length,
mm Width,
mm Height,
mm Illumination
mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight,
kg
Knik 3HLED1x1000/1500 J607 T865 321 167 83 NM 3 6,5 /10 80+ 6500 1,5
Knik 3HLED1x1000/1500 J607 T865 AUT 321 167 83 NM 3 6,5 /10 80+ 6500 1,5
