Description

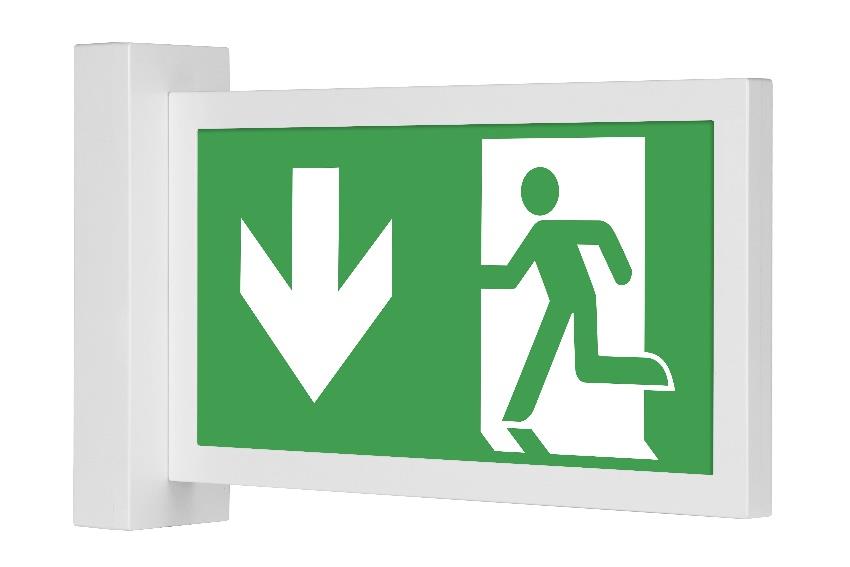

LEPUS W LED

omnidirectional
clear PMMA diffuser
polycarbonate
white
24 hours (12 AUT)
NiCd (LiFePO 4 AUT), deep DA-PETTYMORELharge protection
30 meters
MDA- 220 -240V, 50 -60Hz
LED lifetime, 70000/L80B10
3
II
IP40
IK05
Operating temperature range, ta 0+40 (CEBLED, ta 0…+50 ; CEBLED 2 -25+50)
On the wall. Push -in terminal, 3x2x2.5mm2 (CEBLED, Push -in terminal, 2x2x2.5mm2)
Indoor

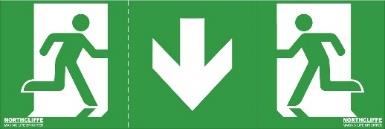

Emergency exit sign Supplied with universal sticker kit.

*-M-mDA-CANOEBIRCHtDA-CANOEBIRCHed (with an option of connecting as non -mDA-CANOEBIRCHtDA-CANOEBIRCHed), NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, CEB mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS NM – non-
mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS mDA-CANOEBIRCHtDA-CANOEBIRCHed, CLV mDA-CANOEBIRCHtDA-CANOEBIRCHed, system power and output indicates data in emergency mode, 10%,
values apply to an ambient temperature of 25 C
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

DALI Driver with DALI interface
*note – G066, G067
TEST Manual test button
AUT Autonomous testing system
CEB Fitting to central battery system CLV Fitting to low voltage central battery system CEBLV
EMS Fitting to emergency monitoring system
LGREY Light grey thermoplastic body
BLACK Black thermoplastic body

Product Length,
mm Width,
mm Height,
mm Illumination
mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight,
kg
DA-PINEAPPLEPLED G066 375 72 232 M/NM 1 1 80+ 6000 1,4
DA-PISTACHIOPLED G067 375 72 232 M/NM 3 1 80+ 6000 1,4
DA-PINEAPPLEPLED G066 AUT 375 72 232 M/NM 1 1 80+ 6000 1,4
DA-PISTACHIOPLED G067 AUT 375 72 232 M/NM 3 1 80+ 6000 1,4
DA-POCANBUSHBLED G068 375 72 232 CEB x 1 80+ 6000 1,4
DA-PINEAPPLEPLED G066 EMS 375 72 232 EMS M/NM 1 1 80+ 6000 1,4
DA-PISTACHIOPLED G067 EMS 375 72 232 EMS M/NM 3 1 80+ 6000 1,4
DA-PINEAPPLEPLED G066 DALI 375 72 232 DALI M/NM 1 1 80+ 6000 1,4
DA-PISTACHIOPLED G067 DALI 375 72 232 DALI M/NM 3 1 80+ 6000 1,4
Lepus W CLV U50 375 72 232 CLV x 1 80+ 6000 1,4

DA-PINEAPPLEPLED G079 2CLR AUT 375 72 232 M/NM 1 3 80+ 6000 1,4
DA-PISTACHIOPLED G080 2CLR AUT 375 72 232 M/NM 3 3 80+ 6000 1,4
DA-POCANBUSHBLED G081 2CLR 375 72 232 CEB x 3 80+ 6000 1,4
DA-PINEAPPLEPLED G079 2CLR EMS 375 72 232 EMS M/NM 1 3 80+ 6000 1,4
DA-PISTACHIOPLED G080 2CLR EMS 375 72 232 EMS M/NM 3 3 80+ 6000 1,4
DA-PINEAPPLEPLED G079 2CLR DALI 375 72 232 DALI M/NM 1 3 80+ 6000 1,4
DA-PISTACHIOPLED G080 2CLR DALI 375 72 232 DALI M/NM 3 3 80+ 6000 1,4
Lepus W CLV U51 2CLR 375 72 232 CLV x 3 80+ 6000 1,4
