Description

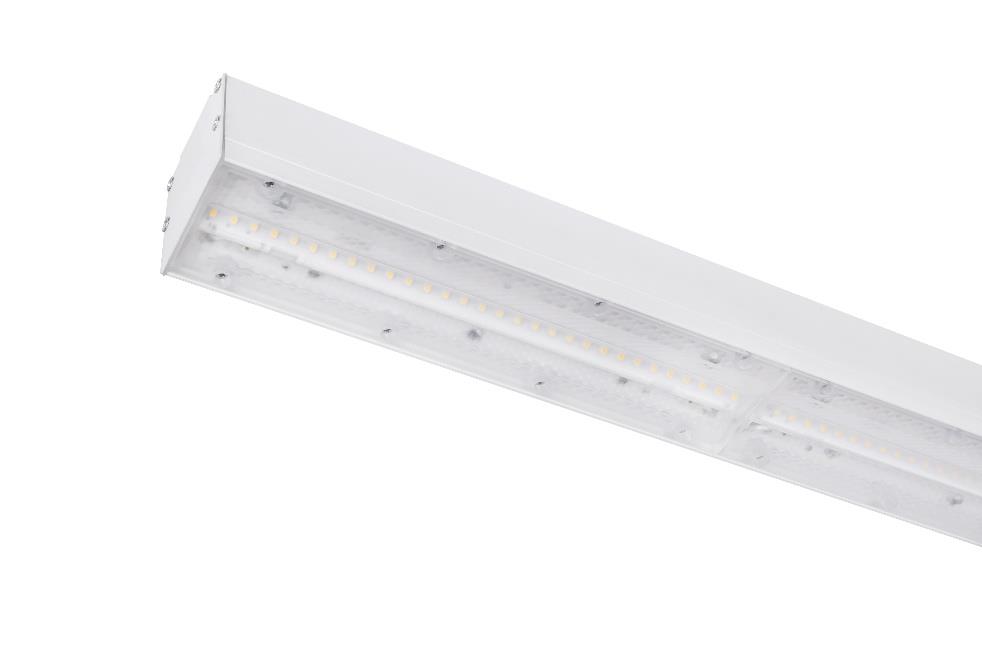

MIZAR LED

luminaires Surface mounted or suspended LED luminaire for in -line connection
direct
lenses
aluminium
white (RAL 9003G2)
MDA- 220-240V, 0/50 -60Hz
LED lifetime, 100000/L80B10
3
I
IP 54
D
Operating temperature range, ta 0 +40
Surface mounted or suspended (brackets and I -join kit included with each luminaire). Through wired, 5×1.5mm2, two 5 -DA-COMMONTANSY plug and
socket connectors
Indoor
Retail, hall, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
Mizar LED1x5350 J877 T830 LS90x110
LO1 LL 1140 65 73 5100 29,8 171 80+ 3000 3,50
Mizar LED1x6400 J878 T830 LS90x110
LO2 LL 1140 65 73 6089 35,7 171 80+ 3000 3,50
Mizar LED1x7350 J879 T830 LS90x110
LO3 LL 1140 65 73 7019 41,5 169 80+ 3000 3,50
Mizar LED1x6650 K069 T830 LS90x110
LO1 LL 1425 65 73 6375 36,8 173 80+ 3000 4,40
Mizar LED1x7950 K070 T830 LS90x110
LO2 LL 1425 65 73 7611 44,6 171 80+ 3000 4,40
Mizar LED1x9200 K071 T830 LS90x110
LO3 LL 1425 65 73 8774 52,4 167 80+ 3000 4,40
Mizar LED1x13300 K072 T830 LS90x110
LO1 LL 2850 65 73 12750 72,9 175 80+ 3000 8,70
Mizar LED1x15900 K073 T830
LS90x110 LO2 LL 2850 65 73 15221 86,4 176 80+ 3000 8,70
Mizar LED1x18350 K074 T830 LS90x110
LO3 LL 2850 65 73 17549 101,6 173 80+ 3000 8,70
Mizar LED1x5350 J877 T840 LS90x110
LO1 LL 1140 65 73 5320 29,8 179 80+ 4000 3,50
Mizar LED1x6400 J878 T840 LS90x110
LO2 LL 1140 65 73 6351 35,7 178 80+ 4000 3,50
Mizar LED1x7350 J879 T840 LS90x110
LO3 LL 1140 65 73 7322 41,5 176 80+ 4000 3,50
Mizar LED1x6650 K069 T840 LS90x110
LO1 LL 1425 65 73 6650 36,8 181 80+ 4000 4,40
Mizar LED1x7950 K070 T840 LS90x110
LO2 LL 1425 65 73 7939 44,6 178 80+ 4000 4,40
Mizar LED1x9200 K071 T840 LS90x110
LO3 LL 1425 65 73 9153 52,4 175 80+ 4000 4,40
Mizar LED1x13300 K072 T840
LS90x110 LO1 LL 2850 65 73 13300 72,9 182 80+ 4000 8,70
Mizar LED1x15900 K073 T840
LS90x110 LO2 LL 2850 65 73 15878 86,4 184 80+ 4000 8,70
Mizar LED1x18350 K074 T840 LS90x110
LO3 LL 2850 65 73 18306 101,6 180 80+ 4000 8,70

BLANK Mizar LED assembly L1140mm
RAL9003
BLANK Mizar LED assembly L1425mm
RAL9003
BLANK Mizar LED assembly L2850mm
RAL9003
BLANK Mizar LED assembly L1000mm
RAL9003 (Custom)
