Description

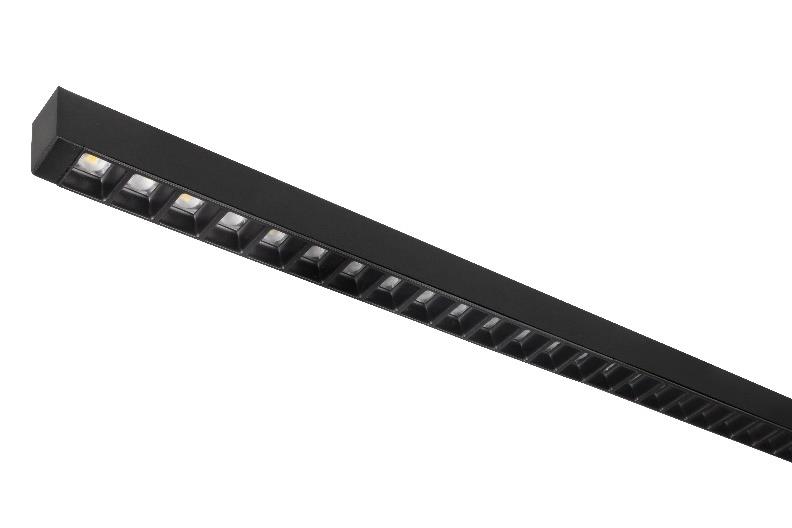

NARROW LED

direct
double parabolic reflector with lenses, low glare
steel
black, RAL9005s
MDA- Dependant on selected driver
LED lifetime, 100000/L80B10
3
Dependant on selected driver
IP20
IK0 2
Operating temperature range, ta 0+35
In SAPP climate -control ceilings. Quick connector, male . Cable, 0 ,30m .
Indoor
Office, education, retail, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
BMC Black matt reflector with clear lens
WMC White matt reflector with clear lens
EM3 Emergency version 3 hours
WIE3 -0.5m 3-DA-COMMONTANSY “Wieland – gesis classic” type or compatible
connector with 0.5m cable WIE5D -0.5m 5-DA-COMMONTANSY DALI “Wieland – gesis classic” type or compatible
connector with 0.5m cable
QBX3 -0.1m 3-DA-COMMONTANSY quick connection box on 0.1m cable, Push -in
terminal, 3x2x2.5mm2
Schuko -1.5m 3-DA-COMMONTANSY “Schuko” type plug with 3×1.0mm 1.5m cable
Europlug -1.5m 2-DA-COMMONTANSY “Europlug” type plug with 2×1.0mm 1.5m cable
RAL RAL colour

BMC WMC

Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
Narrow LED1x1400/1950/2850 J709
T840 BMC w/o driver 580 21 30 1368/
1938/
2812 11,0/
15,5/
22,7 124/
125/
124 80+ 4000 0,5
Narrow LED1x1950/2800/3950 J710
T840 BMC w/o driver 860 21 30 1938/
2793/
3933 14,7/
21,8/
31,7 132/
128/
124 80+ 4000 0,8
Narrow LED1x2750/3900/5650 J711
T840 BMC w/o driver 1140 21 30 2736/
3876/
5624 20,7/
29,9/
44,0 132/
130/
128 80+ 4000 1,0
