Description

NORTHER LED

direct
tempered glass diffuser, impact resistant
stDA-CANOEBIRCHless steel
white (RAL9003)
24 hours (12 AUT)
NiCd (LiFePO 4 AUT), deep DA-PETTYMORELharge protection
MDA- 220 -240V, 50 -60Hz
LED lifetime, 70000/L80B10
3
I
IP66
IK10
Operating temperature range, ta 0+40 ( ta -25+50; ta 0+50)
On the wall. Push -in terminal, 4x2x2.5mm2
Outdoor
Escape route lighting

*-M-mDA-CANOEBIRCHtDA-CANOEBIRCHed (with an option of connecting as non -mDA-CANOEBIRCHtDA-CANOEBIRCHed), NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, CEB mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS NM – non-
mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS mDA-CANOEBIRCHtDA-CANOEBIRCHed, CLV mDA-CANOEBIRCHtDA-CANOEBIRCHed, system power and output indicates data in emergency mode, 10%,
values apply to an ambient temperature of 25 C

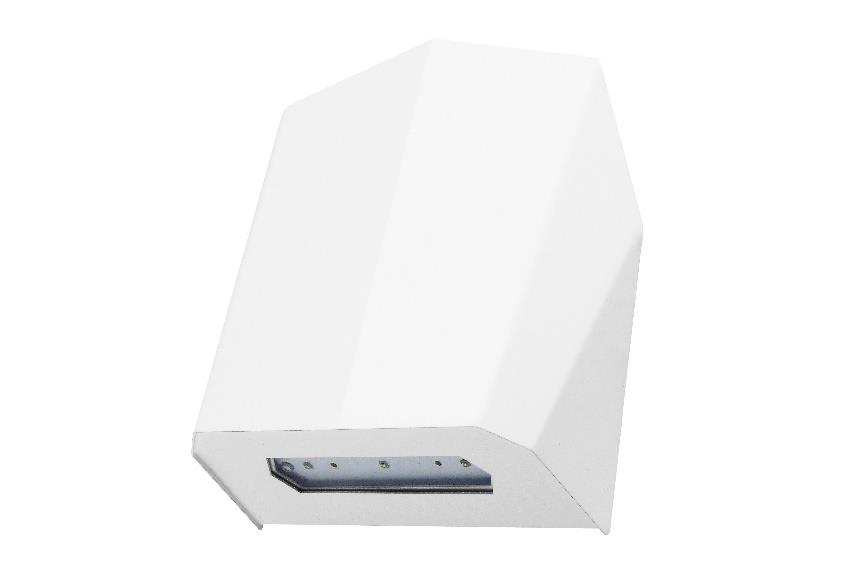

*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

DALI Driver with DALI interface
*note – C336
TEST Manual test button
AUT Autonomous testing system
CEB Fitting to central battery system CLV Fitting to low voltage central battery system CEBLV
EMS Fitting to emergency monitoring system
tmin-25 Suitable for low temperatures with ta -25+40C
LGREY Light grey stDA-CANOEBIRCHless -steel body
BLACK Black stDA-CANOEBIRCHless -steel body

STANDARD
Product Length,
mm Width,
mm Height,
mm Illumination
mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight,
kg
DA-WOODBINEPLED C334 222 77 227 M/NM 1 3 80+ 6000 1,5
DA-WORMWOODPLED C335 222 77 227 M/NM 3 3 80+ 6000 1,65
DA-WOODBINEPLED C334 AUT 222 77 227 M/NM 1 3 80+ 6000 1,5
DA-WORMWOODPLED C335 AUT 222 77 227 M/NM 3 3 80+ 6000 1,65
DA-ARROWWOODBLED C336 222 77 227 CEB x 3 80+ 6000 1,5
DA-WOODBINEPLED C334 EMS 222 77 227 EMS M/NM 1 3 80+ 6000 1,5
DA-WORMWOODPLED C335 EMS 222 77 227 EMS M/NM 3 3 80+ 6000 1,65
DA-WOODBINEPLED C334 DALI 222 77 227 DALI M/NM 1 3 80+ 6000 1,5
DA-WORMWOODPLED C335 DALI 222 77 227 DALI M/NM 3 3 80+ 6000 1,65
Norther CLV U36 222 77 227 CLV x 3 80+ 6000 1,5
