Description

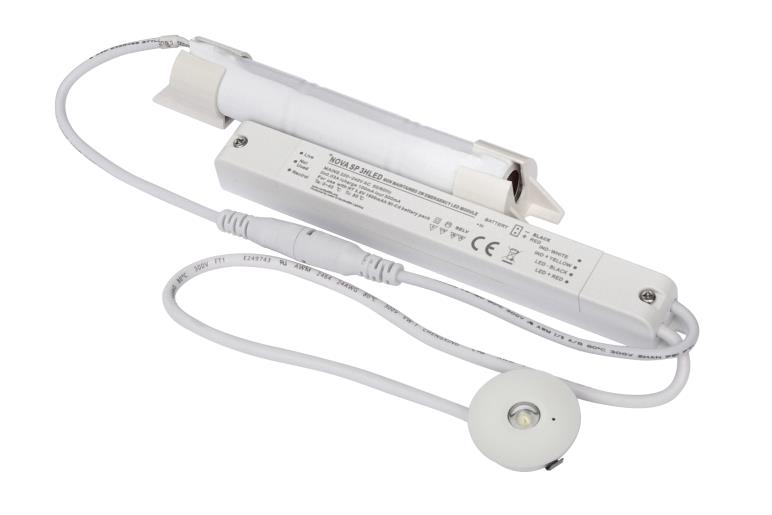

NOVA SP LED

open area lens , escape route lens
polycarbonate
white
24 hours
LiFePO4, deep DA-PETTYMORELharge protection
MDA- 220-240V, 50/60Hz
LED lifetime, 50000/L70B50
5
II
IP20
IK05
Operating temperature range, ta 0+40
In ceilings (ceiling thickness 1 -13mm) with cut -out openings (mounting brackets included). Push -in terminal, 2x1x1.5mm2
Indoor
Escape route lighting

*NM- non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, system power and output indicates data in emergency mode, 10%, values apply to an
ambient temperature of 25 C
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

LOA LER
Product Length,
mm Width,
mm Height,
mm Illumination
mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight,
kg
DA-SNOWDROPHLED D591 LOA 40 40 22 NM 3 2 70+ 4000 0,24
DA-SNOWDROPHLED D590 LER 37 37 14 NM 3 2 70+ 4000 0,24
