Description

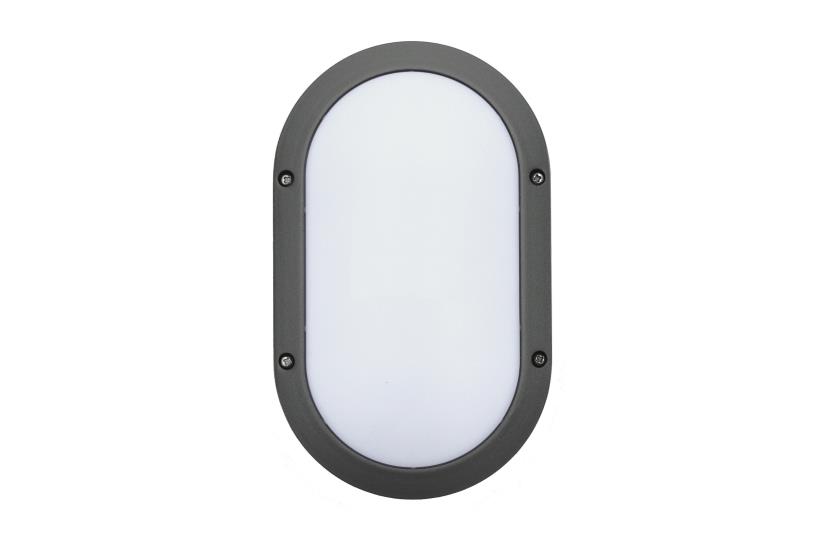

OVAL LED

direct
opal polycarbonate diffuser, impact resistant
aluminium
dark grey, RAL7043 MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L80B10
3
I
IP54
IK08
Operating temperature range, ta -25+40
On the wall. Push -in terminal, 3x2x2.5 mm2
Outdoor
Facade illumination, parking area, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80 +
LOUVER DA-CANEASHative louver IP65 Water and dust protection IP65
RAL RAL colour
*note – price for uncommon RAL colour could be different from indicated. Ask
before placing an order

STANDARD LOUVER
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
DA-WILDORANGE 1E27 Q83 280 185 95
DA-WILDORANGE1x900 D055 T830 280 185 95 860 9,4 91 80+ 3000 1,5
DA-WILDORANGE1x900 D055 T840 280 185 95 901 9,4 96 80+ 4000 1,5

DA-WILDORANGE 1E27 Q83 GRID 280 185 95

DA-WILDORANGE 1E27 Q83 LOUVER 280 185 95
DA-WILDORANGE1x500 D056 T830 LOUVER 280 185 95 455 7,1 64 80+ 3000 1,6
DA-WILDORANGE1x500 D056 T840 LOUVER 280 185 95 476 7,1 67 80+ 4000 1,6
