Description

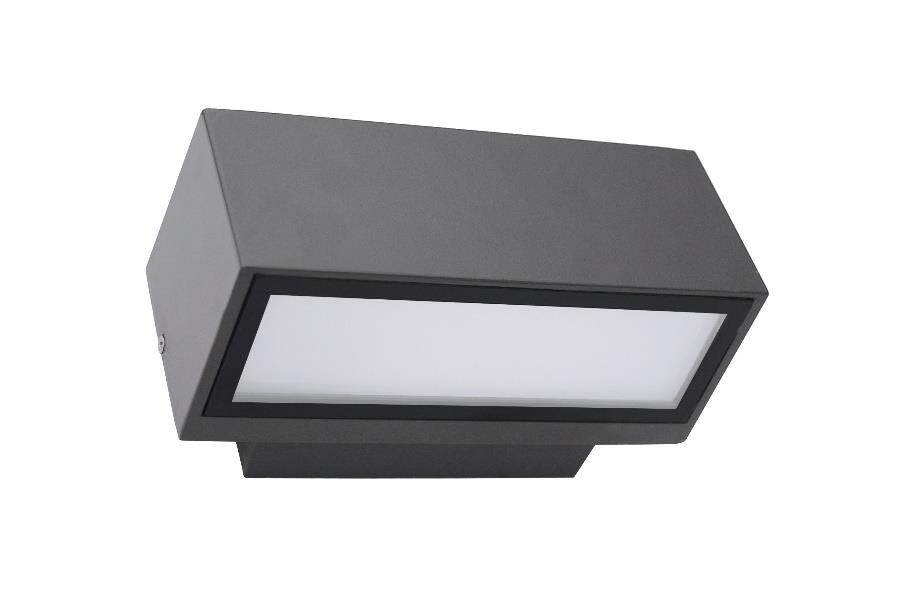

PYXIS LED

direct/indirect
frosted tempered glass diffuser, impact resistant
aluminium
dark grey, RAL7043 MDA- 220 -240V, 50 -60Hz
I
IP54
IK08
Operating temperature range, ta -25+40
Surface mounted luminaire is designed to be fixed to walls of any type. Screw terminal, 3×1.5 mm2
Outdoor
Facade illumination, parking area, public space

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

STANDARD
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
Pyxis 1E27 Q90 FROST 220 90 125 1,5
