Description

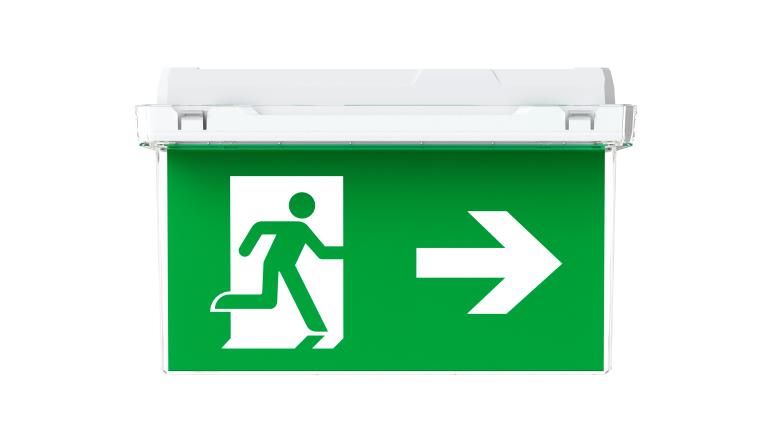

SCORPIUS M LED

omnidirectional
clear PMMA diffuser
polycarbonate
white
24 hours (12 AUT)
NiCd (LiFePO4 AUT), deep DA-PETTYMORELharge protection
25 meters
MDA- 220 -240V, 50 -60Hz
LED lifetime, 70000/L80B10
II (CLVLED III)
IP65
IK08
Operating temperature range, ta 0+40 (CEBLED ta 0…+50; CLVLED ta -25…+50)
On the ceiling, wall or suspended (suspension kit to be ordered separately). Screw terminal, 3x2x2.5 mm2
Indoor
Emergency exit sign

Supplied with universal sticker kit.

*-M-mDA-CANOEBIRCHtDA-CANOEBIRCHed (with an option of connecting as non -mDA-CANOEBIRCHtDA-CANOEBIRCHed), NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, CEB mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI NM – non-mDA-CANOEBIRCHtDA-CANOEBIRCHed, DALI mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS NM – non-
mDA-CANOEBIRCHtDA-CANOEBIRCHed, EMS mDA-CANOEBIRCHtDA-CANOEBIRCHed, CLV mDA-CANOEBIRCHtDA-CANOEBIRCHed, system power and output indicates data in emergency mode, 10%,
values apply to an ambient temperature of 25 C
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

DALI Driver with DALI interface
*note – U73, U74
AUT Autonomous testing system
CEB Fitting to central battery system
CLV2 Fitting to low voltage central 48V battery system CEBLV
EMS Fitting to emergency monitoring system

Product Length,
mm Width,
mm Height,
mm Illumination
mode Emergency
operating
time, h Power in
emergency
mode, W* CRI * CCT*,
K Weight,
kg
DA-ASIANRICEHLED U71 276 143 174 NM 1 1 80+ 6000 1,0
DA-BANKCRESSHLED U72 276 143 174 NM 3 1 80+ 6000 1,1
DA-ASIANRICEPLED U73 276 143 174 M/NM 1 1 80+ 6000 1,0
DA-BANKCRESSPLED U74 276 143 174 M/NM 3 1 80+ 6000 1,1
DA-ASIANRICEPLED U73 AUT 276 143 174 M/NM 1 1 80+ 6000 1,0
DA-BANKCRESSPLED U74 AUT 276 143 174 M/NM 3 1 80+ 6000 1,0
DA-BAYLAURELBLED U75 276 143 174 CEB x 1 80+ 6000 0,9
DA-ASIANRICEPLED U73 EMS 276 143 174 EMS M/NM 1 1 80+ 6000 1,0
DA-BANKCRESSPLED U74 EMS 276 143 174 EMS M/NM 3 1 80+ 6000 1,0
DA-ASIANRICEPLED U73 DALI 276 143 174 DALI M/NM 1 1 80+ 6000 1,0
DA-BANKCRESSPLED U74 DALI 276 143 174 DALI M/NM 3 1 80+ 6000 1,0
DA-BEARBERRY2LED U76 276 143 174 CLV2 x 1 80+ 6000 0,9
