Description

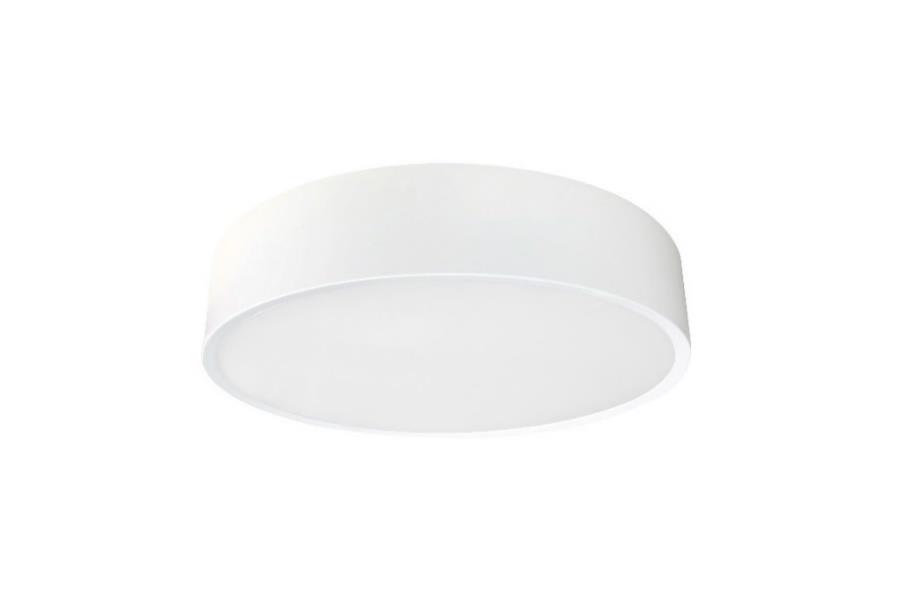

STORM P LED

direct
opal polycarbonate diffuser, UV stable, impact resistant
polycarbonate
white , black
MDA- 220 -240V, 50 -60Hz
LED lifetime, 50000/L70B50
5
II
IP65
IK10
Operating temperature range, ta -20…+40
On the ceiling or wall. Push -in terminal, 2x2x2.5mm2
Indoor/Outdoor with roof
Office, education, corridor, staircase, public place

* 10%. Values apply to an ambient temperature of 25 C. icLighting is constantly developing and
improving its products. The right is reserved to change any product specifications without prior notification
*Photos are for illustrational purposes only. The exact appearance of the product may vary depending on the monitor settings, options selected and other factors.

T830 Colour temperature 3000K, CRI 80+
T840 Colour temperature 4000K, CRI 80+
DALI Driver with DALI interface and switch -control dimming
COR Driver with Corridor function (never off)
*note – for DALI, COR options, indicate what output is required
MW Integrated microwave (MW) motion sensor with on -off
control
EM3 Emergency version 3 hours
EM3B Emergency version 3 hours (best available technology)
EM3A Emergency version equipped with an autonomous testing
system, 3 hours
EM3D Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, ta 0…
+35
EM3Atmin -25 Emergency version equipped with an autonomous testing
system, 3 hours. Suitable for low ambient temperatures up
to -25 C
Product Length,
mm Width,
mm Height,
mm Luminaire
output*, lm System
power*,
W System
efficacy*,
lm/W CRI *
(Ra) CCT*,
K Weight,
kg
Storm P LED1x1000/1500/2000/2550 J584
T830/40 352 352 68 1000/1500/
2000/2550 10/14/
18/22 95/100/
100/102 80+ 3000/
4000 1,4
Storm P LED1x1000/1500/2000/2550 J584

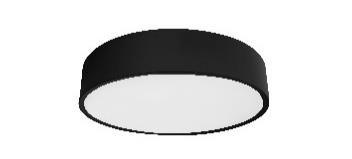

T830/40 BLACK 352 352 68 1000/1500/
2000/2550 10/14/
18/22 95/100/
100/102 80+ 3000/
4000 1,4
STANDARD
